7 inch touchscreen metal
Model: 7TS7M
100+ units in stock
7 inch touchscreen metal
7 inch touchscreen metal
7 inch touchscreen metal
7 inch touchscreen metal
7 inch touchscreen metal
7 inch touchscreen metal
7 inch touchscreen metal
7 inch touchscreen metal
7 inch touchscreen metal
7 inch touchscreen metal

7 inch touchscreen metal

Model: 7TS7M
100+ units in stock
  1. High resolution multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 181 x 123 x 42 mm
  5. More specifications
Display type
Monitor
Touchscreen
€ 387,45 VAT incl.
Order by 4:00 pm for delivery on Tuesday
  • Description
  • Specifications
  • Connectivity
  • Downloads

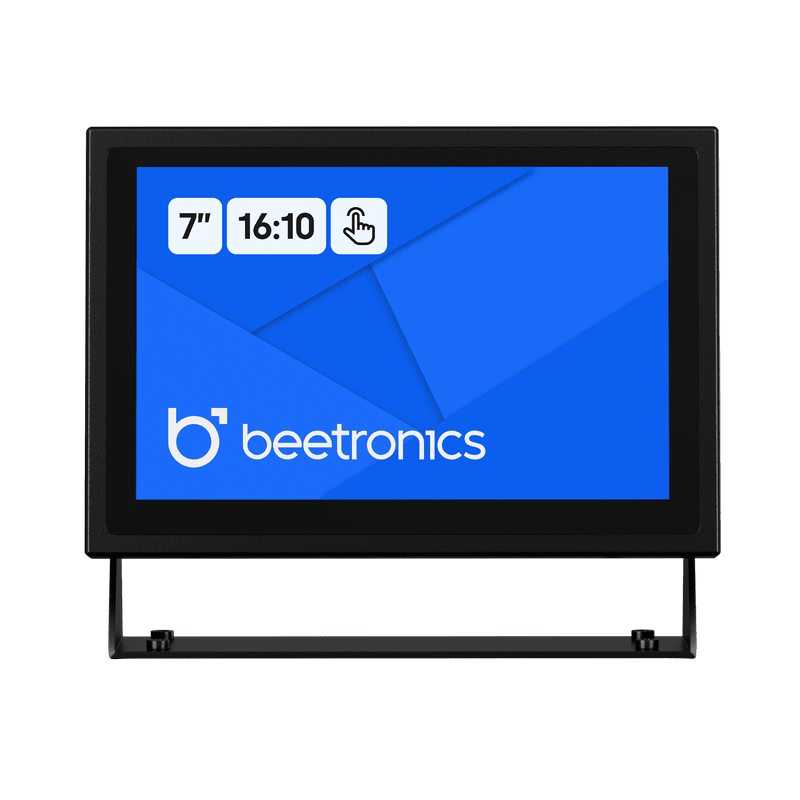

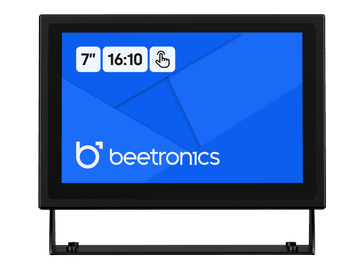

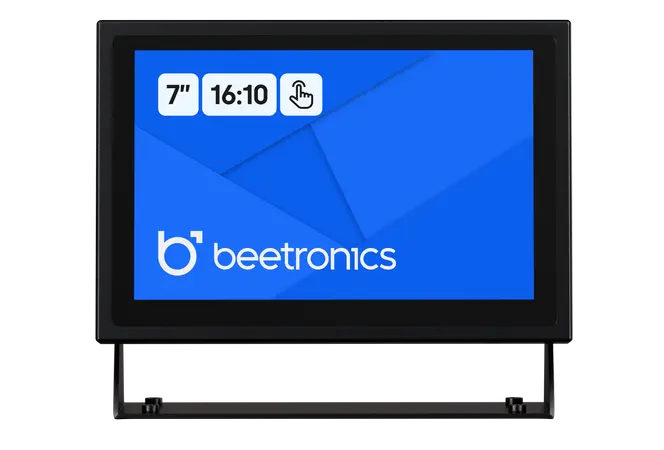

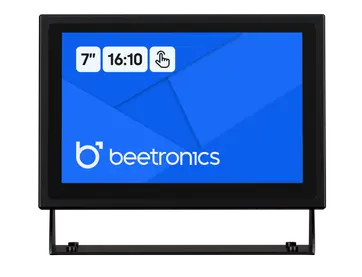

This high resolution 7 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 7TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

High resolution multi-touch panel

Fitted with a high resolution IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 7TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

7 inch touchscreen metal

Compatible with Windows,
macOS, ChromeOS and Linux

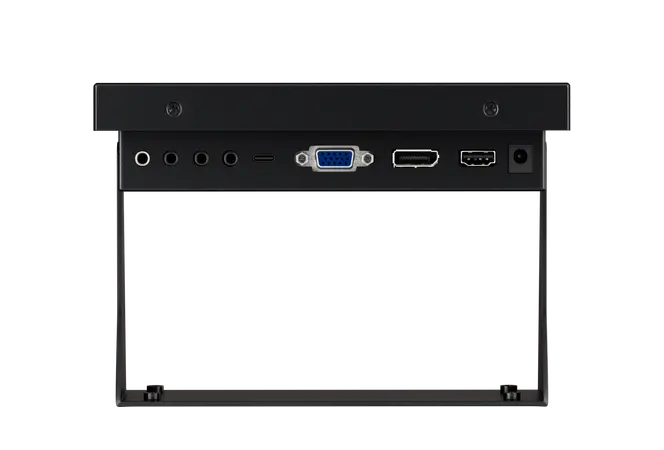

The 7-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

7 inch touchscreen metal

Designed for professional use

The 7TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

7 inch touchscreen metal

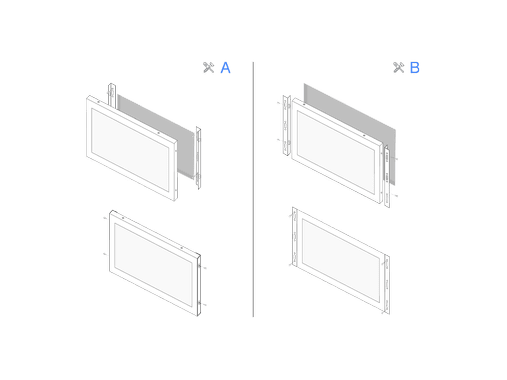

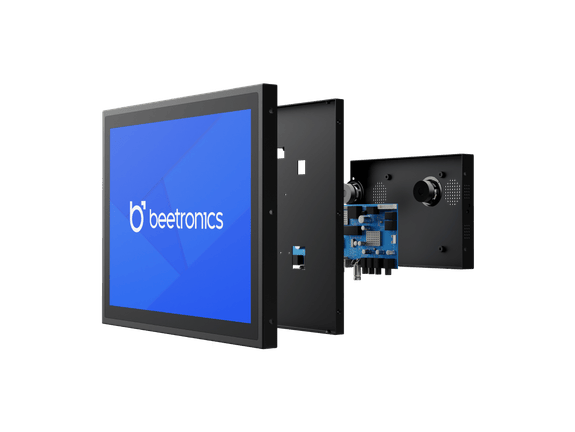

Easily integrated

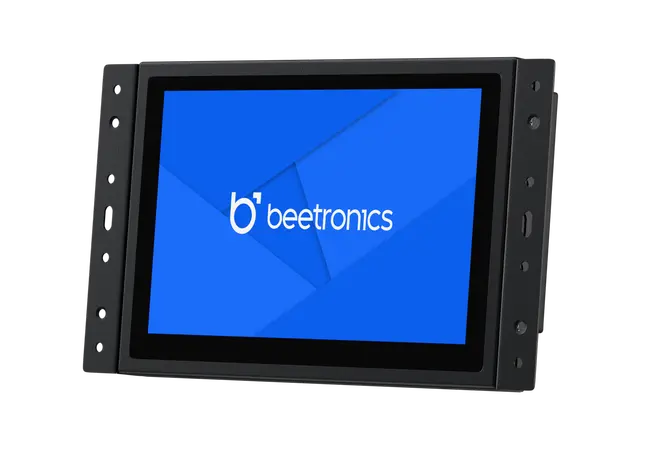

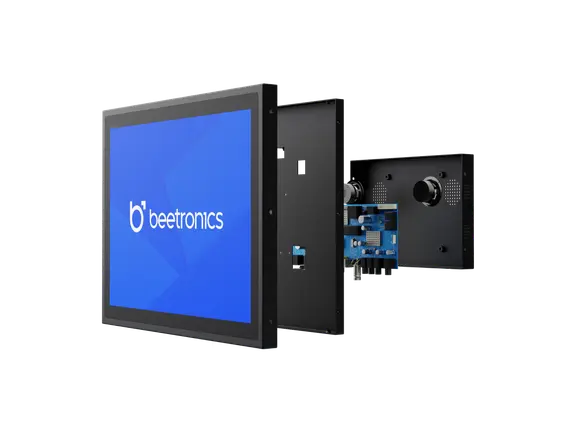

Thanks to numerous mounting options, the 7 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

7 inch touchscreen metal

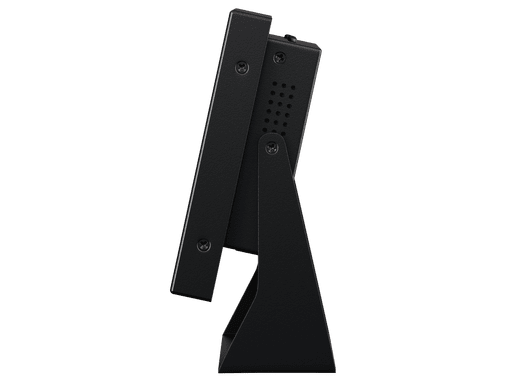

Desktop and wall mounting

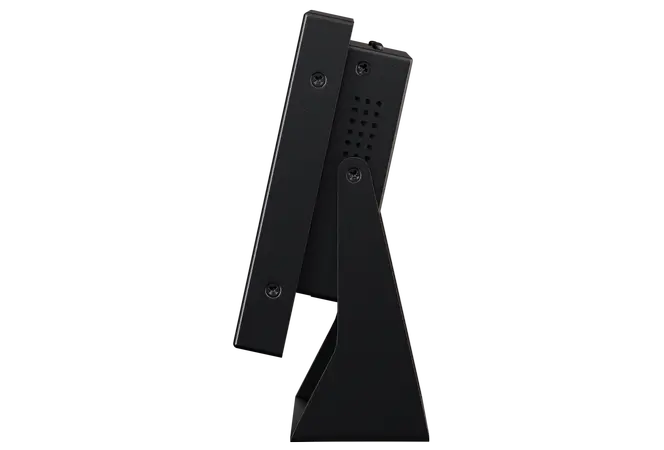

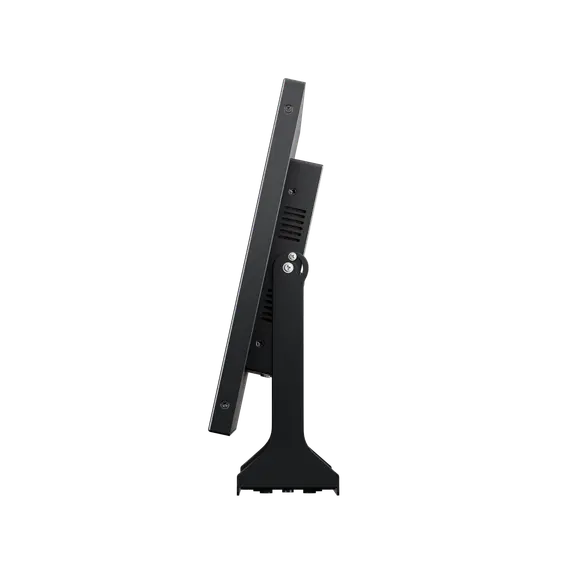

The Beetronics 7TS7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

7 inch touchscreen metal
General
Manufacturer
Beetronics
Item number
7TS7M
Previous model
7TS4M
Product name
7 inch touchscreen metal
Warranty
2 years
Datasheet
User manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Big Sur, Monterey, Ventura, Sonoma
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Panel
Diagonal size
7.2 inches (183 mm)
Panel type
IPS-LCD
16:10 (16:9, 4:3 adjustable)
Response time
10 ms
MTBF
50K
1920 x 1200 (max), 640 x 480 (min)
Backlight
LED
Brightness
350 cd/m2
Contrast
800:1
178° horizontal, 178° vertical
Surface
Mat tempered glas
Capacitive, 10-point multi-touch (PCAP)
Touch control
Stylus, hand, glove

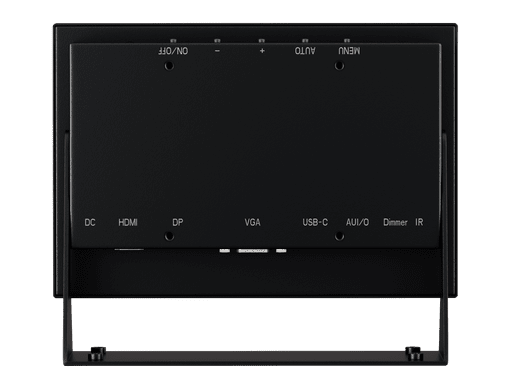

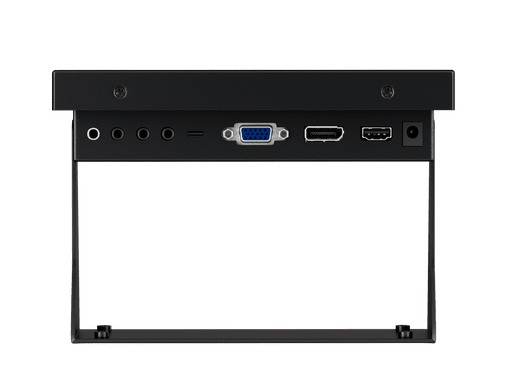

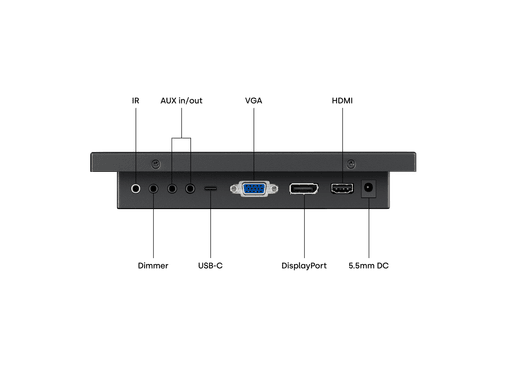

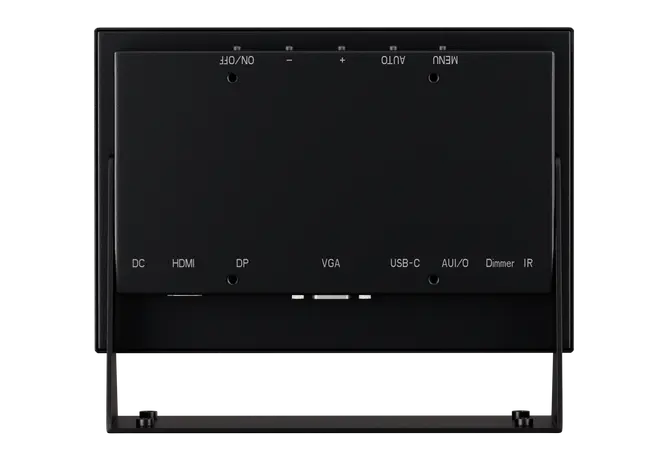

Connectivity
HDMI
1x
DisplayPort
1x
VGA
1x
AUX input
1x
AUX output
1x
USB-C
1x Video, audio, touch
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.

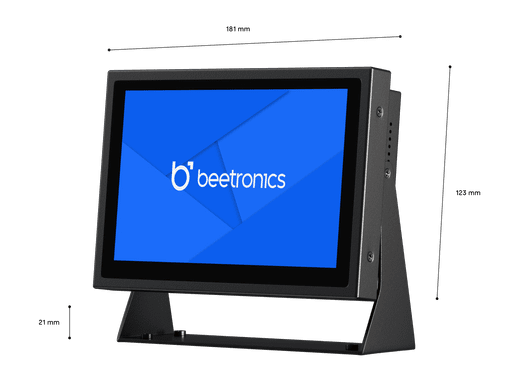

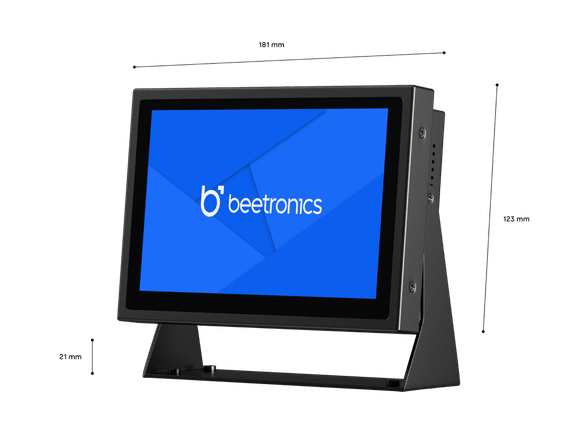

Size & weight
Colour
Black
Weight
700 grams (900 grams with stand)
Width
181 mm
Height
123 mm
Thickness
42 mm
Display dimensions
154 x 98 mm
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Orientation
Landscape, portrait, face-up
Power
Input voltage
DC 9-33V
Consumption
Typical 6.2 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 80% non-condensing
Mounting
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP65 front panel
Impact protection
IK07
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, EN50155, EN60601, CCC

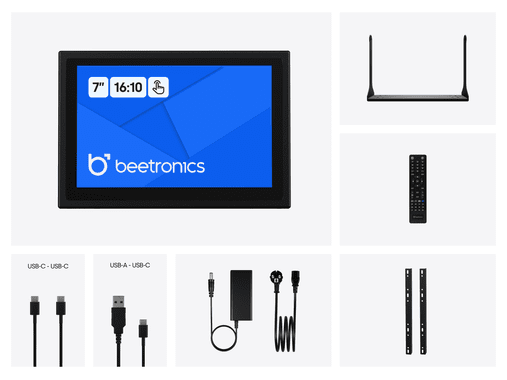

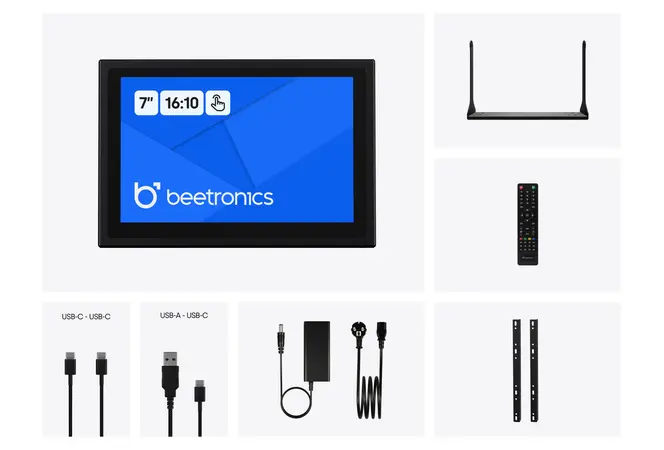

Package content
Includes
Touchscreen, USB-C to USB-C cable, USB-C to USB-A cable, remote control, power adapter, manual
Compatible accessories
Infrared extension
Compatible with infrared extender (IRC7)
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Rack mounting
Compatible with 19 inch rack mount kit (RMK2)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
Compatible with VDK4 collapsible stand
Touch pen
Compatible with CTS7 capacitive touchscreen stylus
7 inch touchscreen metal
Downloads
User manual
Quickstart
Technical drawing
3D Drawing
Datasheet
