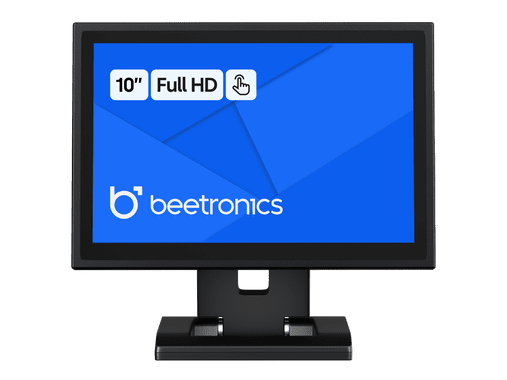

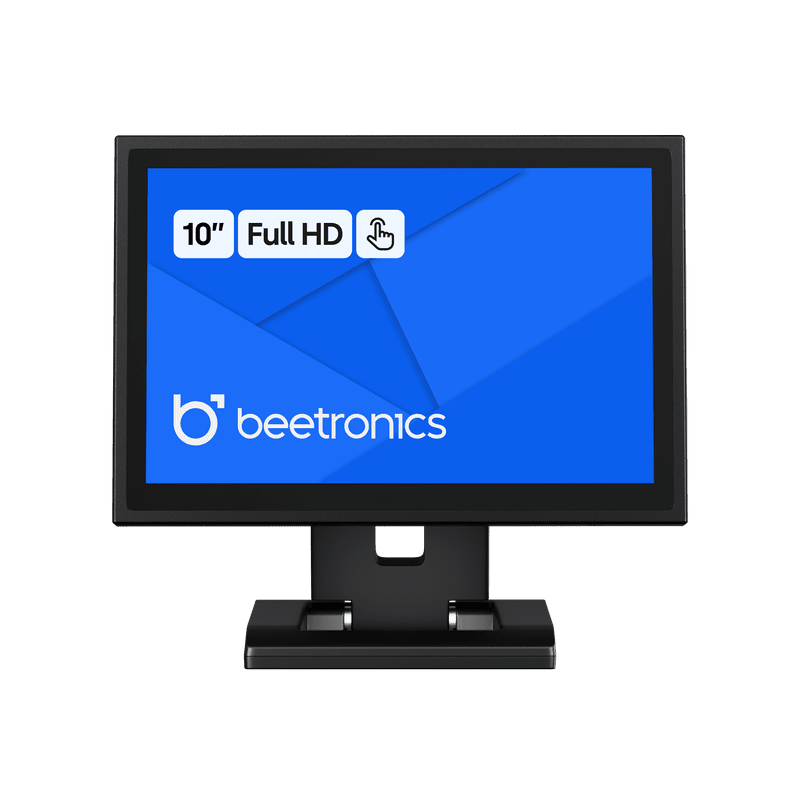

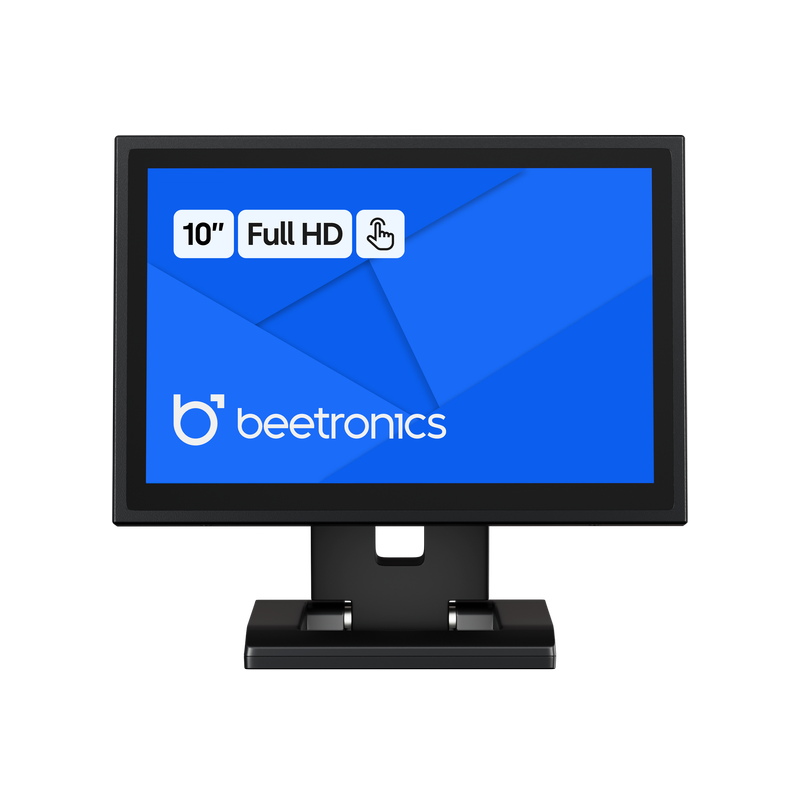

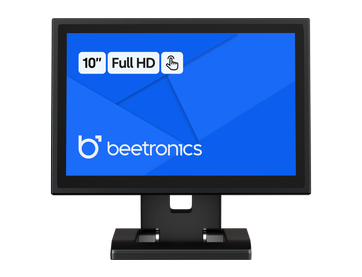

10 inch touchscreen metal
- Full HD multi-touch panel
- Windows, Mac, Linux & Android compatible
- Desktop, flush and wall mountable
- 249 x 170 x 37 mm
- Description
- Specifications
- Connections
- Downloads

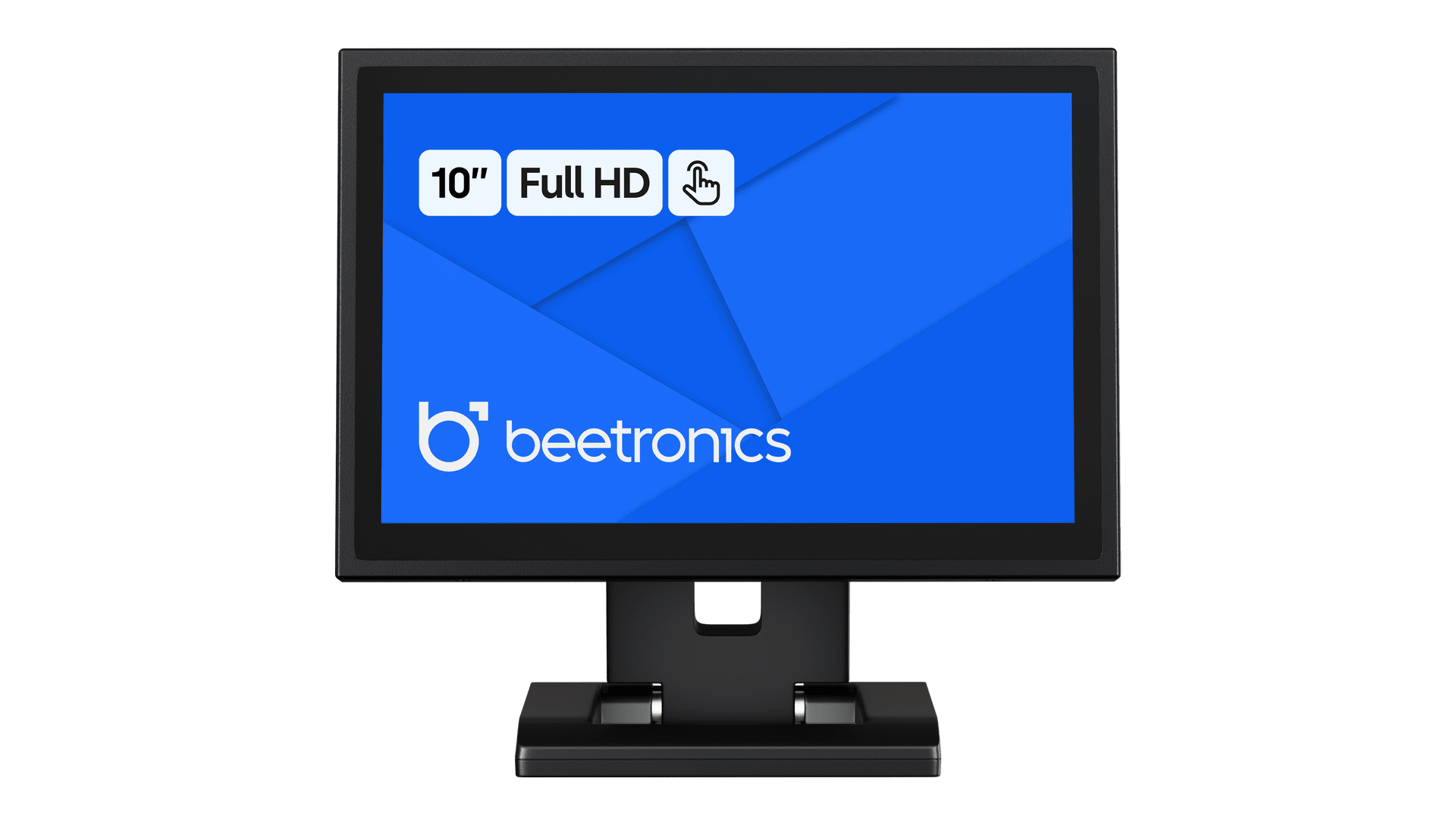

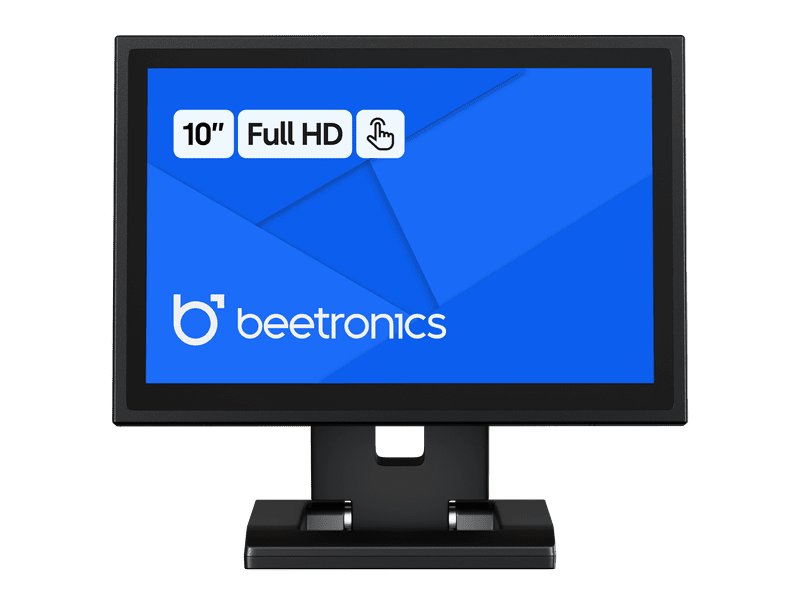

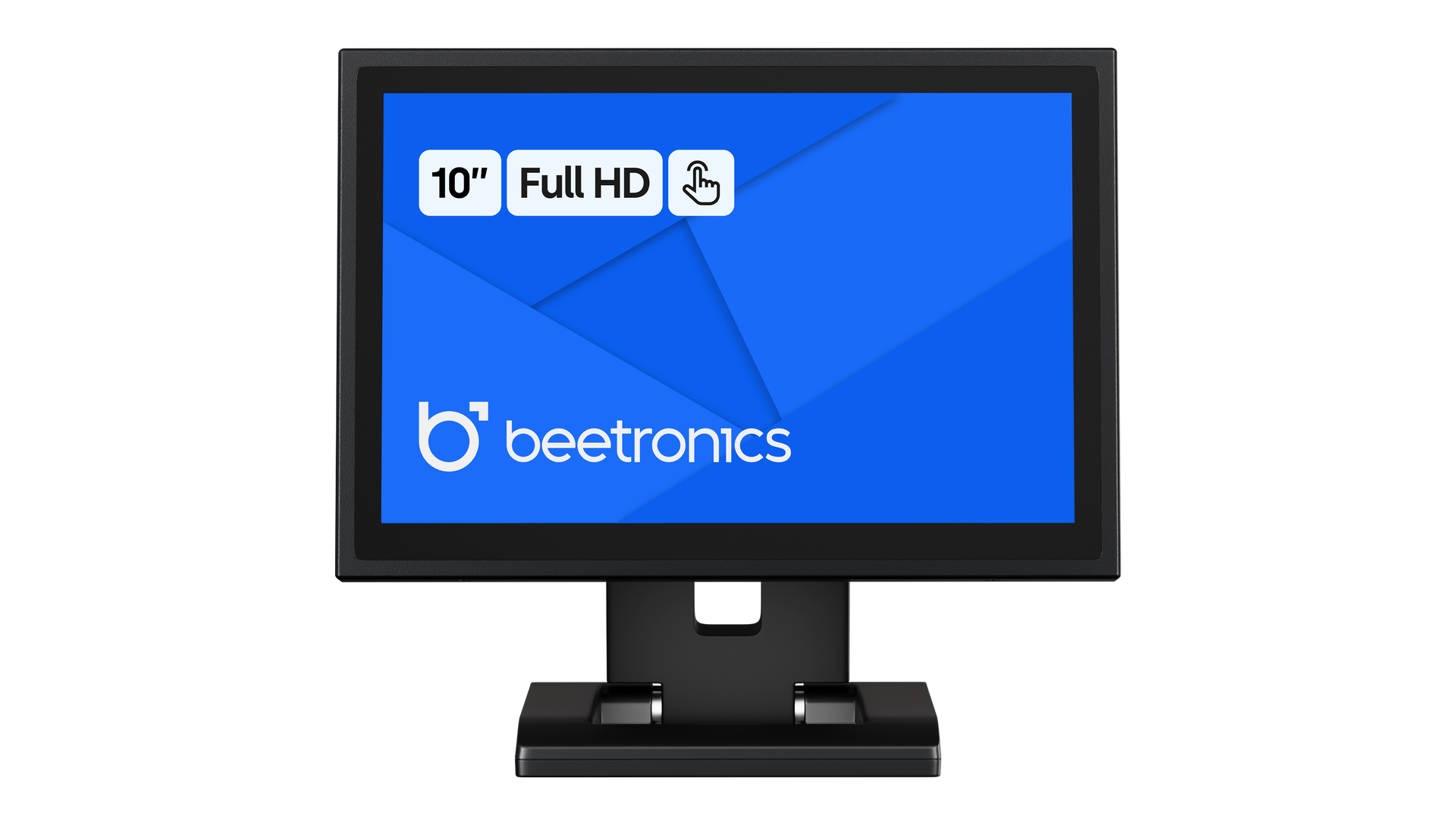

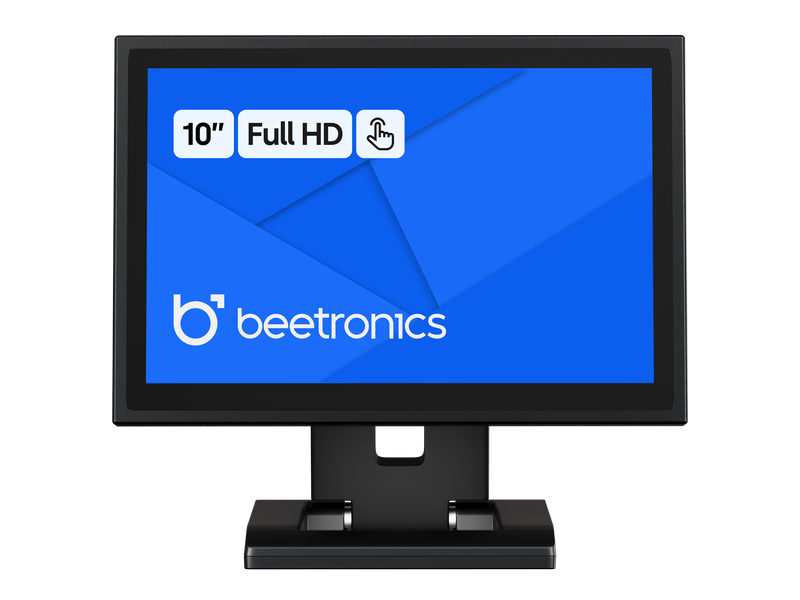

This Full HD 10 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 10TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.
Full HD multi-touch panel
Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 10TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.
Windows, Mac, Linux & Android compatible

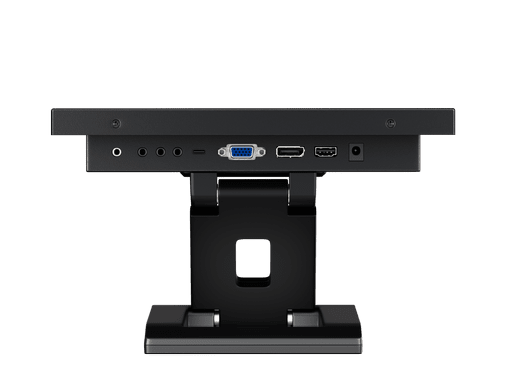

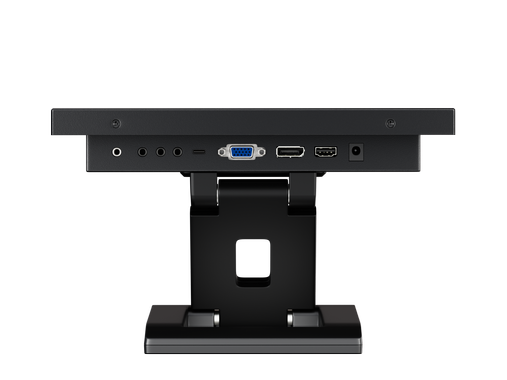

The 10TS7M touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.
.jpg)
Designed for professional use

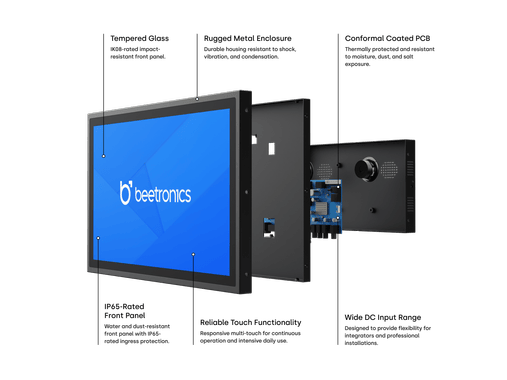

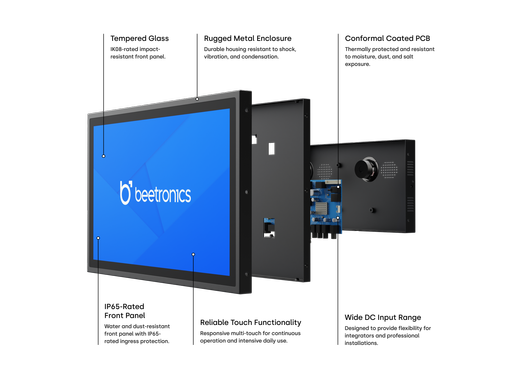

The 10TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.
Easily integrated

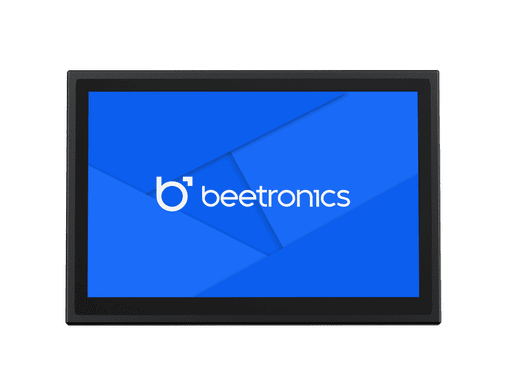

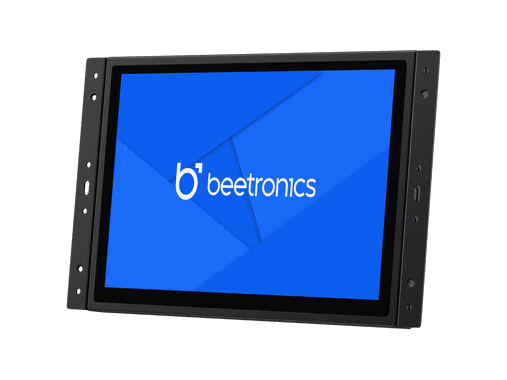

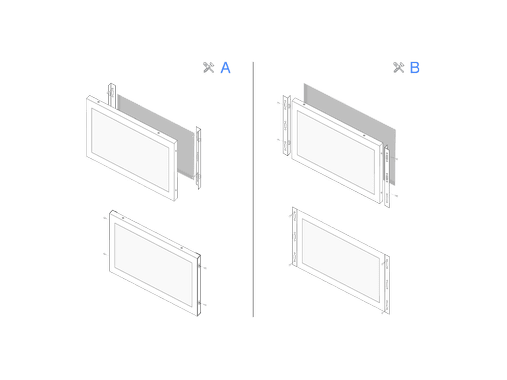

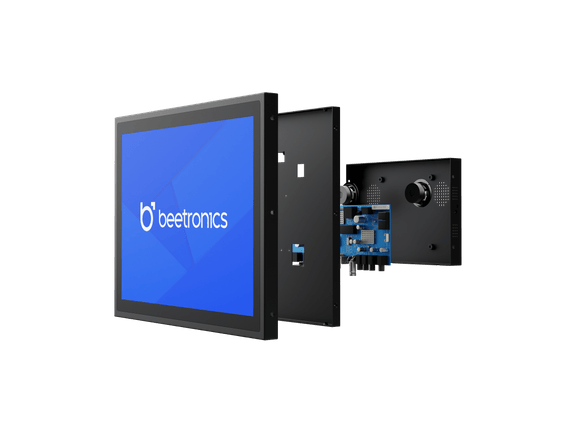

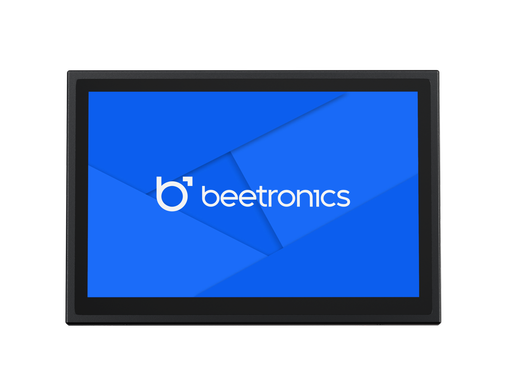

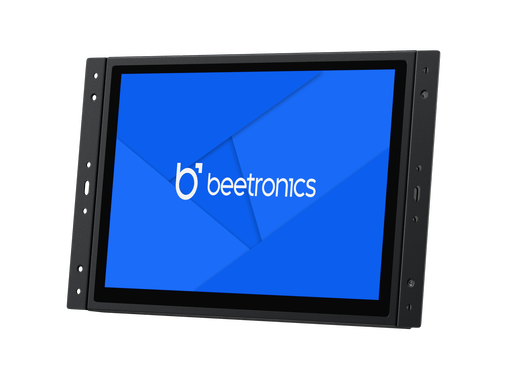

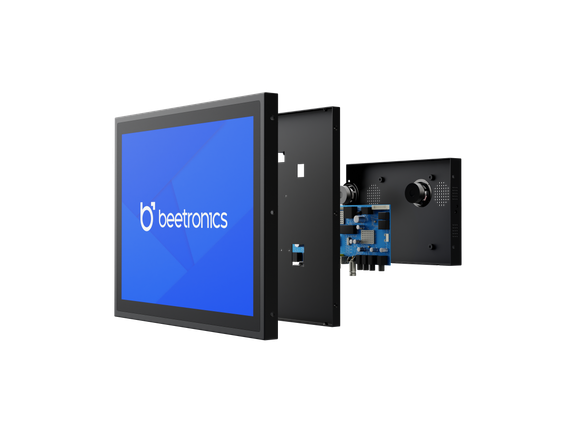

Thanks to numerous mounting options, the 10 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

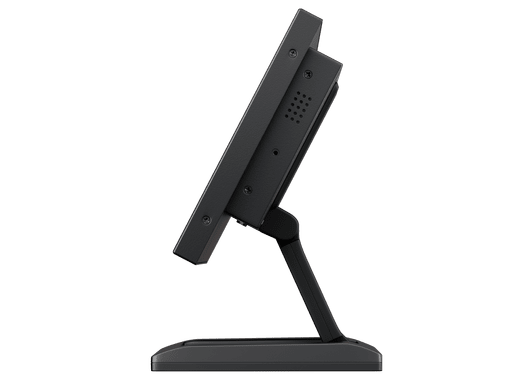

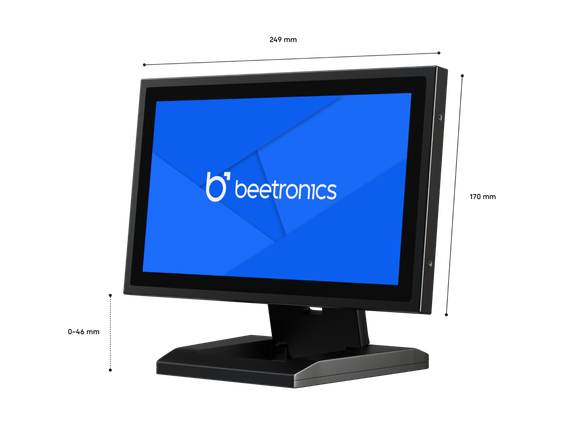

Desktop and wall mounting

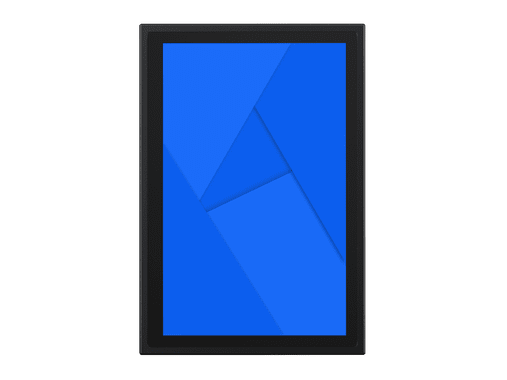

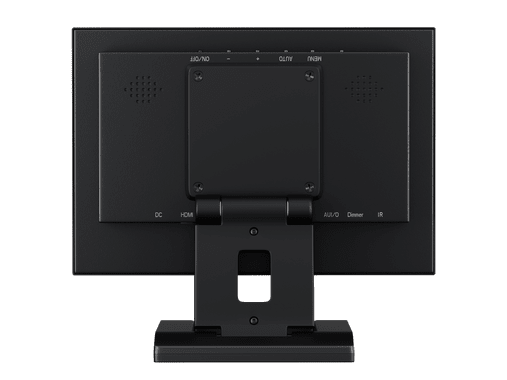

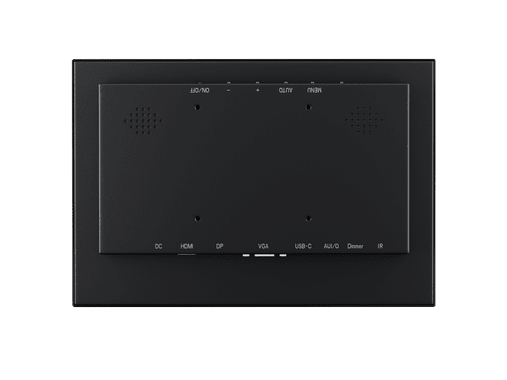

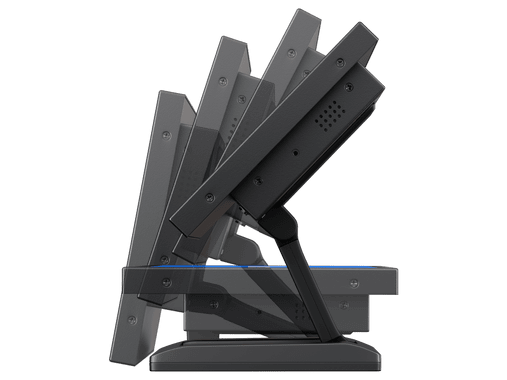

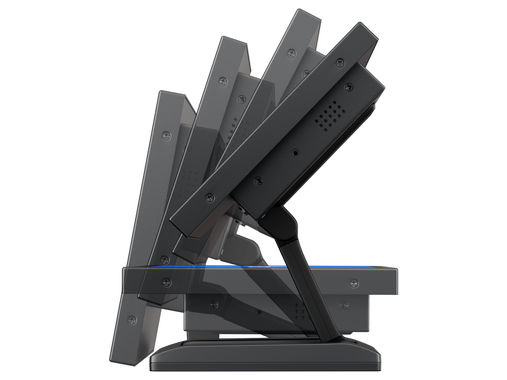

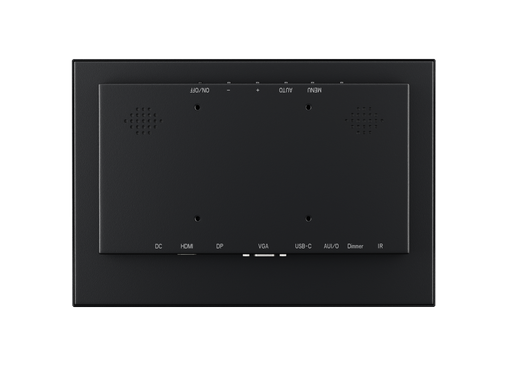

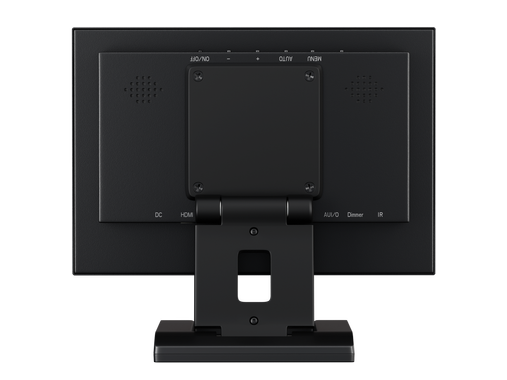

The Beetronics 10TS7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.
| General | |
|---|---|
| Manufacturer |
Beetronics
|
| Item number |
10TS7M
|
| Product name |
10 inch touchscreen metal
|
| Warranty |
2 years
|
| Datasheet | |
| Manual | |
| Supported operating systems | |
|---|---|
| Windows |
(Windows 8, 10)
|
| Windows Embedded |
(Windows embedded 8, 10)
|
| macOS |
(Sierra, High Sierra, Mojave, Catalina, Big Sur)
|
| Linux |
|
| Chrome OS |
|
| Brightsign |
|
| Android |
(Android PC or Mediabox - Android 6.0 and higher - not compatible with smartphones or tablets)
|
| Drivers |
No drivers needed. Plug & Play
|
| Panel | |
|---|---|
| Type |
LED-IPS
|
| Screen diagonal |
10.1 inches (257 mm)
|
| Aspect ratio |
16:10 (16:9, 4:3 adjustable)
|
| Native resolution |
1920 x 1200
|
| Supported resolutions |
1920 x 1200 (max), 640 x 480 (min)
|
| Pixels per inch |
226 PPI
|
| Viewing angle |
178° horizontal, 178° vertical
|
| Colour encoding system |
PAL/NTSC/SECAM
|
| Brightness |
400 cd/m2
|
| Contrast |
600:1
|
| Touch technology |
Capacitive, 10-point multitouch (PCAP)
|
| Touch control |
Stylus, hand, glove
|

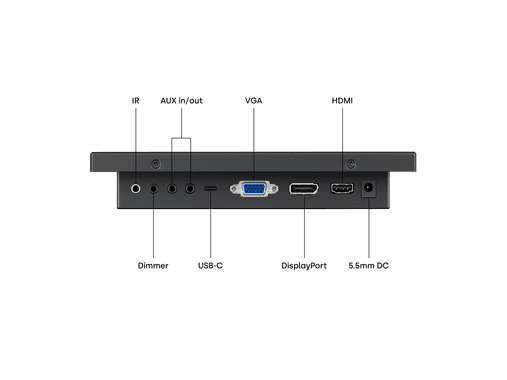

| Connectivity | |
|---|---|
| HDMI |
1x
|
| VGA |
1x
|
| BNC (CVBS) |
1x
|
| RCA video |
1x
|
| AUX input |
1x
|
| AUX output |
1x
|
| USB |
Only for touchscreen functionality
|
| Size & weight | |
|---|---|
| Colour |
Black
|
| Weight |
1290 gram (1710 gram with stand)
|

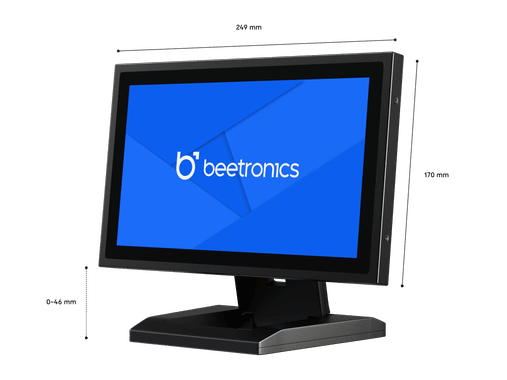

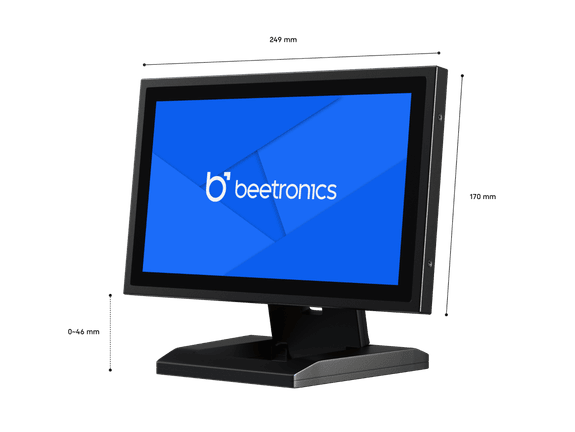

| Width |
249 mm
|
| Height |
170 mm (+0 to 39 mm with stand)
|
| Thickness |
37 mm
|
| Display dimensions |
219 x 136 mm
|
| Technical drawing | |
| 3D drawing | |
| Features and functions | |
|---|---|
| Audio |
Integrated speakers
|
| Key-lock |
The control buttons can be blocked
|
| Auto-on |
Automatically powers on when it receives current or a signal
|
| Dimmable |
Adjustable backlight brightness
|
| Mirroring |
Image can be mirrored, horizontally and vertically
|
| Power | |
|---|---|
| Input voltage |
DC 9-33V
|
| Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
| Consumption |
<15 Watt (0.5 Watt standby)
|
| Environmental | |
|---|---|
| Operating temperature |
-20°C to +60°C
|
| Storage temperature |
-20°C to +70°C
|
| Operating humidity |
20% - 90% non-condensing
|
| Mounting | |
|---|---|
| Wall mount |
VESA (75 mm)
|
| Flush mount |
Mounting strips included
|
| Stand |
Adjustable and detachable
|
| Certifications & Standards | |
|---|---|
| IP rating |
IP65 front panel
|
| Certifications |
CE, FCC, RoHS, REACH
|
| Package content | |
|---|---|

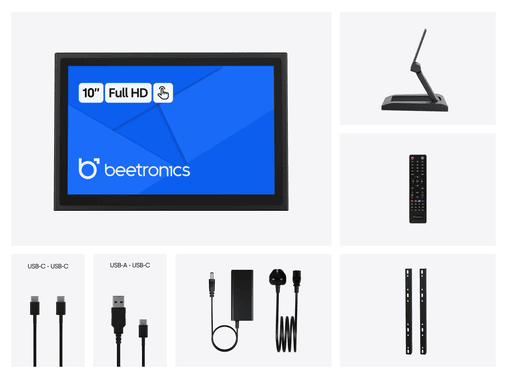

| Includes |

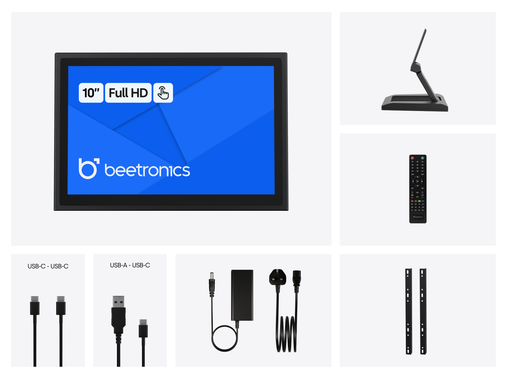

Touchscreen, USB cable, Remote control, Mains adaptor, Stand, Installation strips, Manual
|
| Manual | Download PDF |
| Technical drawing | Download PDF |
| 3D drawing | Download CAD/STP |
| Datasheet | Download PDF |
