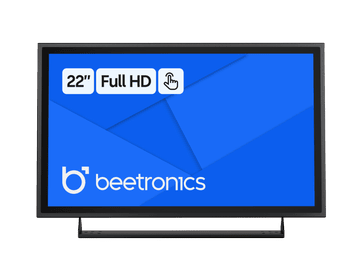

22 inch touchscreen metal
Model: 22TS7M
100+ units in stock
22 inch touchscreen metal
22 inch touchscreen metal
22 inch touchscreen metal
22 inch touchscreen metal
22 inch touchscreen metal
22 inch touchscreen metal
22 inch touchscreen metal
22 inch touchscreen metal
22 inch touchscreen metal
22 inch touchscreen metal

22 inch touchscreen metal

Model: 22TS7M
100+ units in stock
  1. Full HD multi-touch panel
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

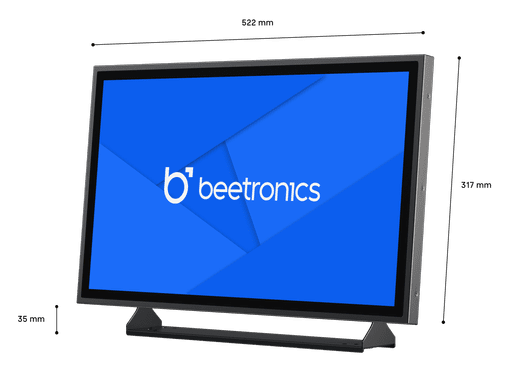

  4. External dimensions: 522 x 317 x 45 mm
Display type
Monitor
Touchscreen
€ 724,47 VAT incl.
Order by 4:00 pm for delivery on Thursday
  • Description
  • Connectivity
  • Downloads

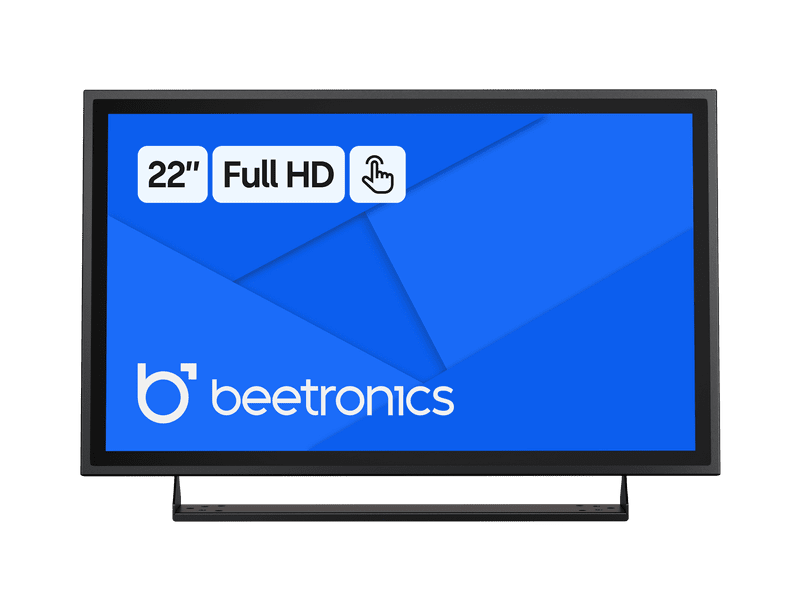

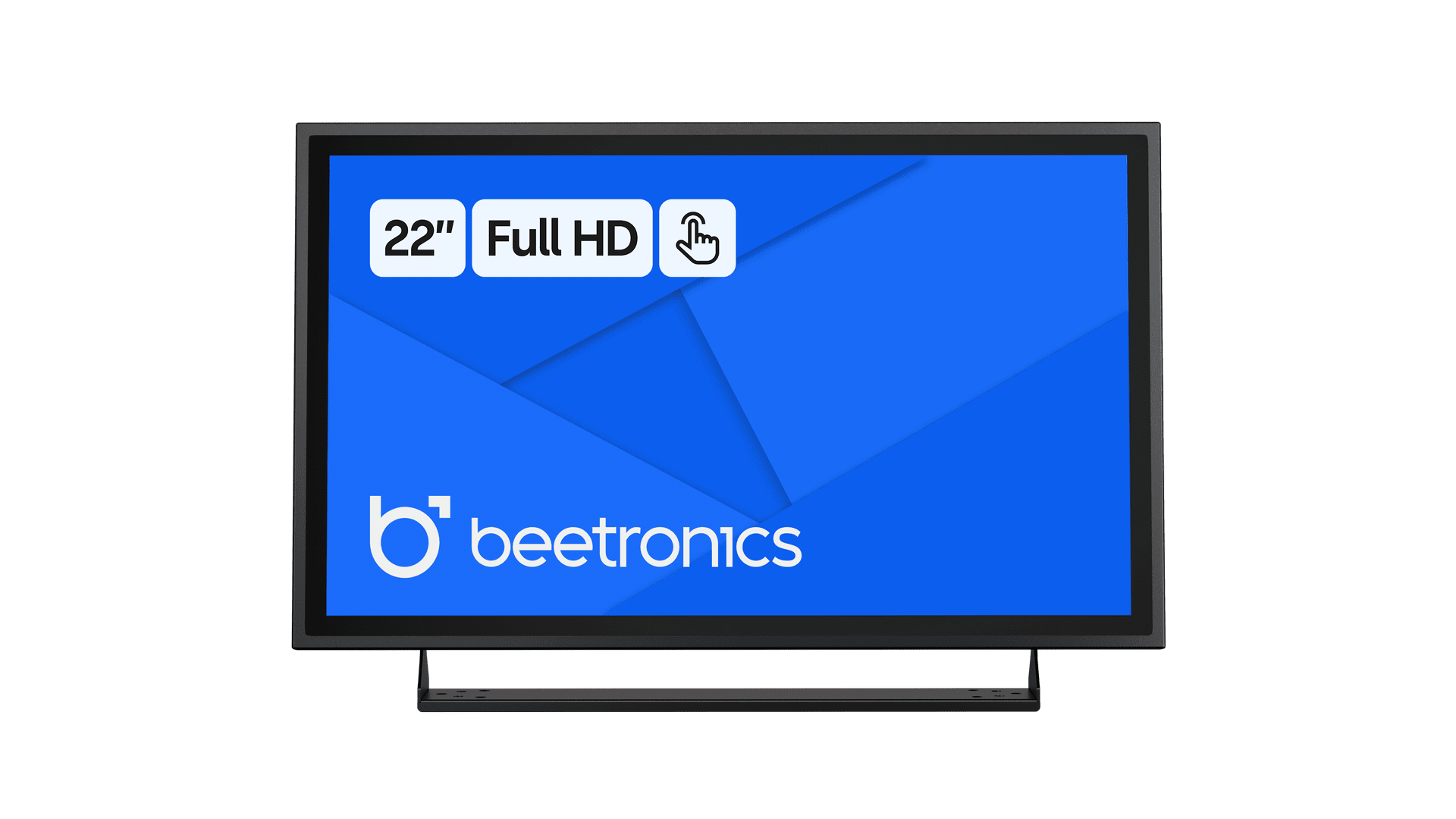

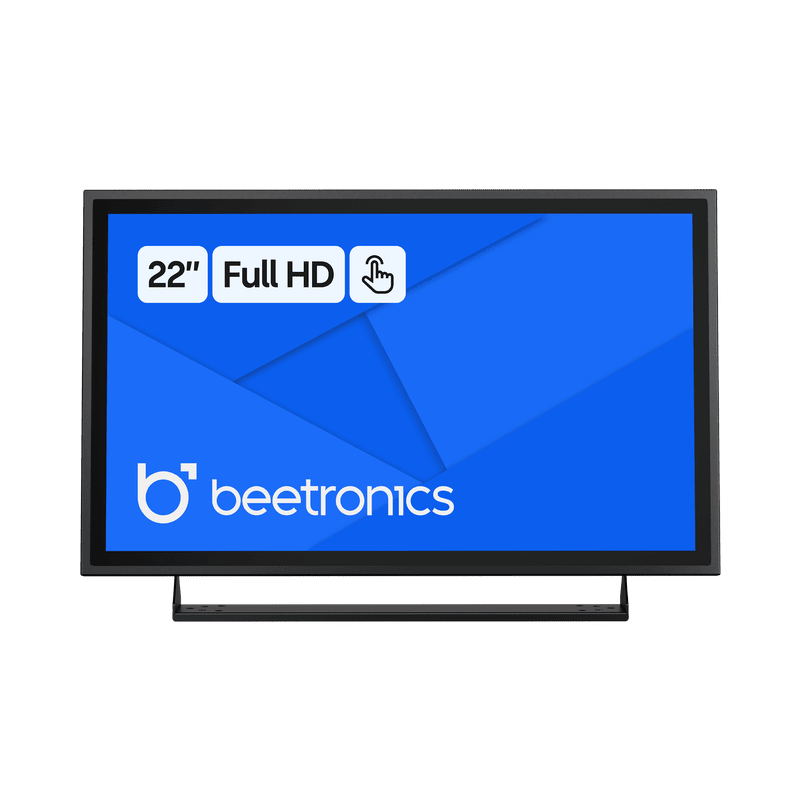

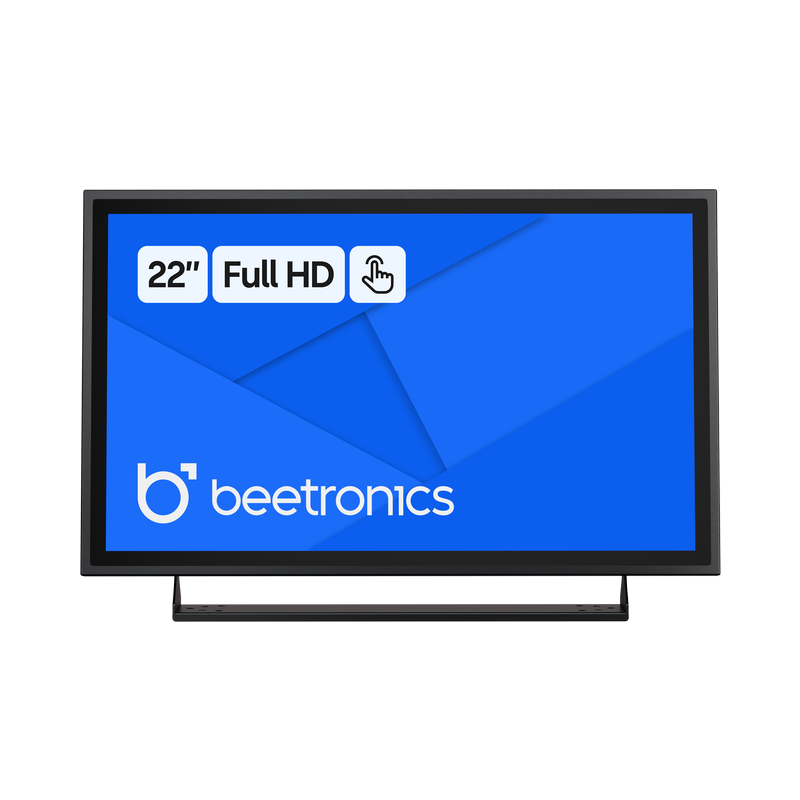

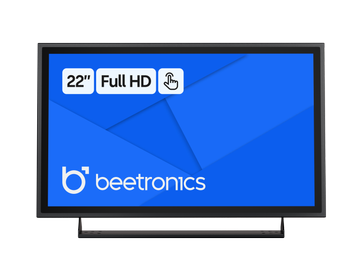

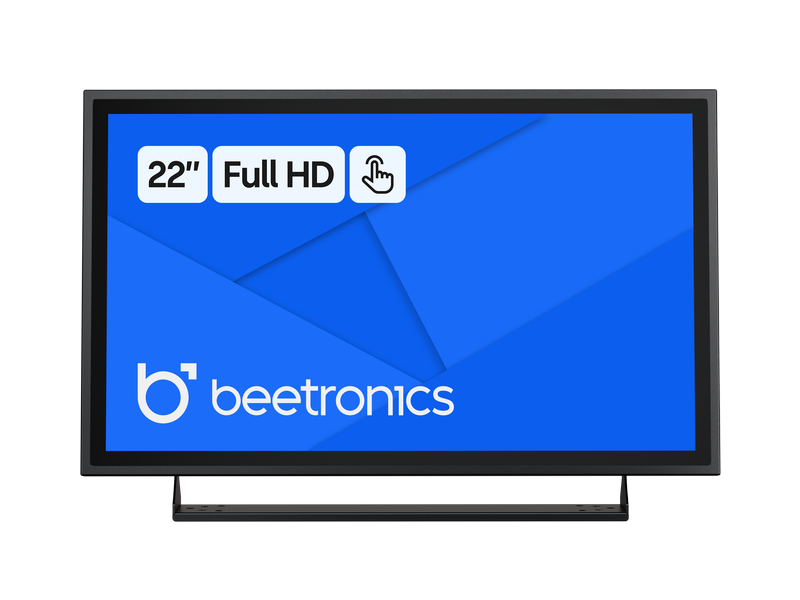

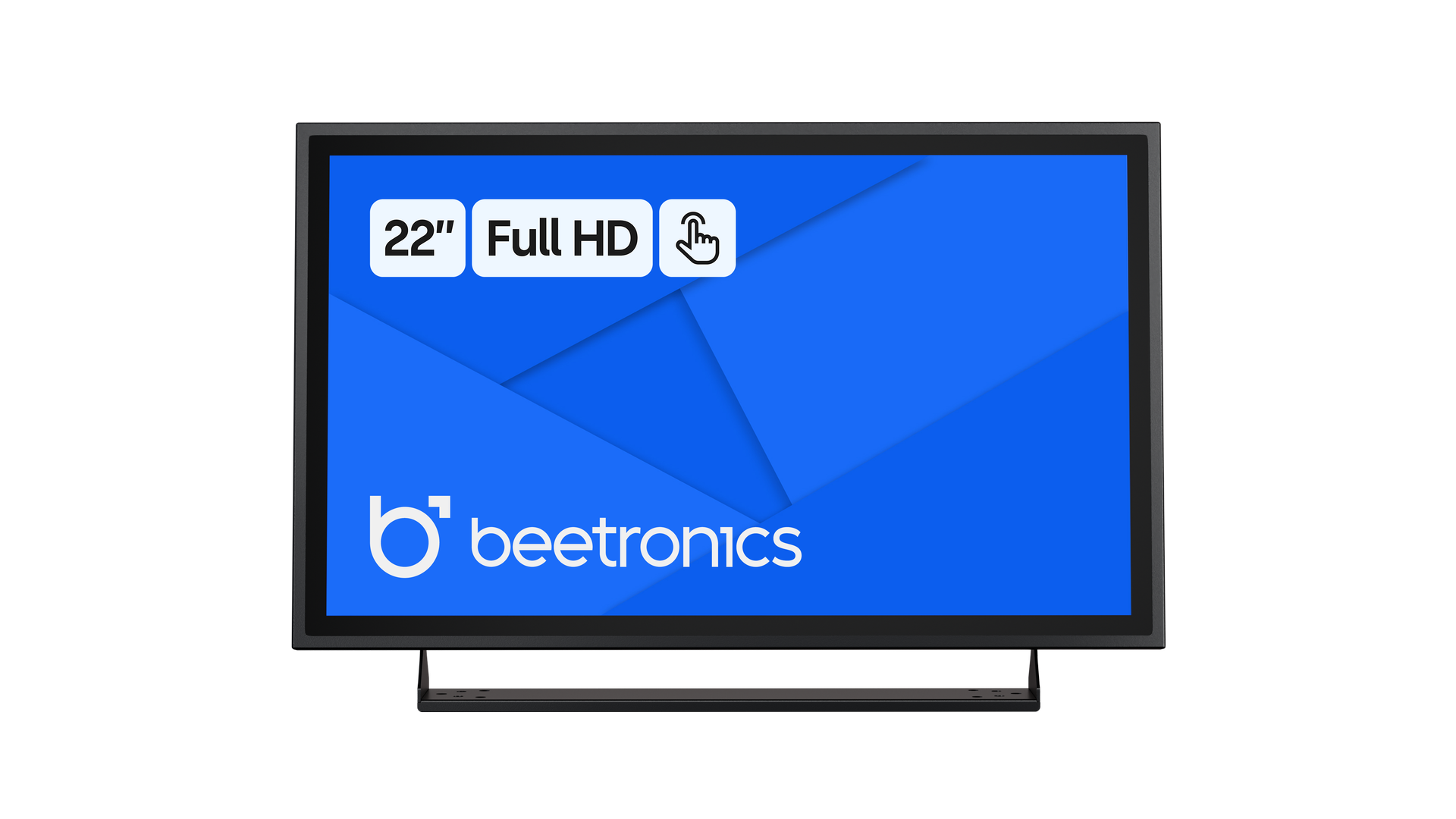

This Full HD 22 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 22TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

Full HD multi-touch panel

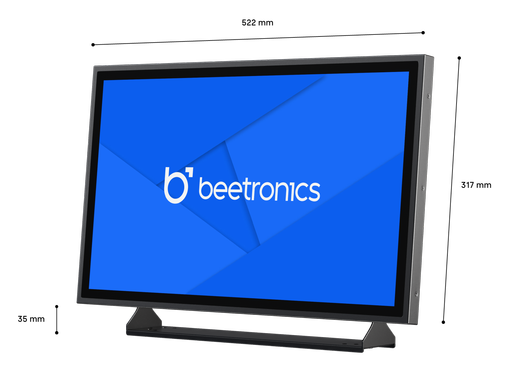

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 22TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

22 inch touchscreen metal

Compatible with Windows,
macOS, ChromeOS and Linux

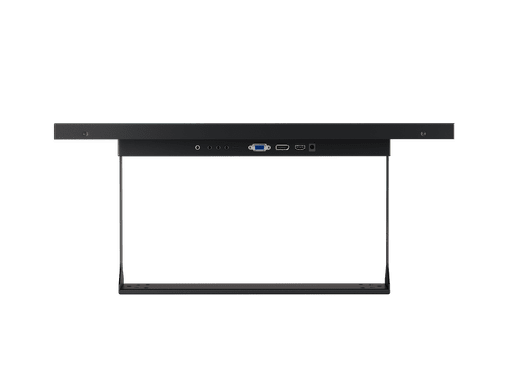

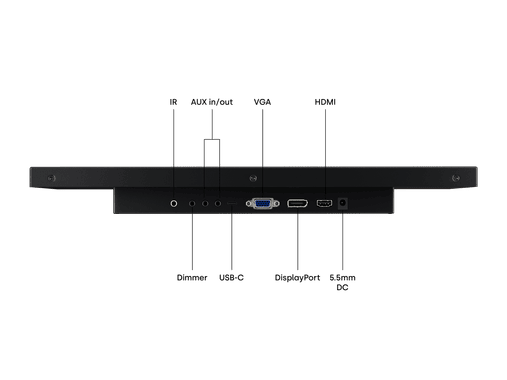

The 22 inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The touchscreen offers versatile connectivity and can be connected via HDMI, VGA, RCA or BNC for the display. The touch functionality can easily be activated via the included USB-A cable. Once connected to the source, the display is automatically recognized and is immediately ready for use.

22 inch touchscreen metal

Designed for professional use

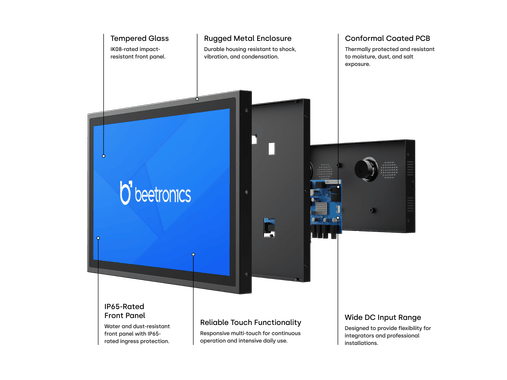

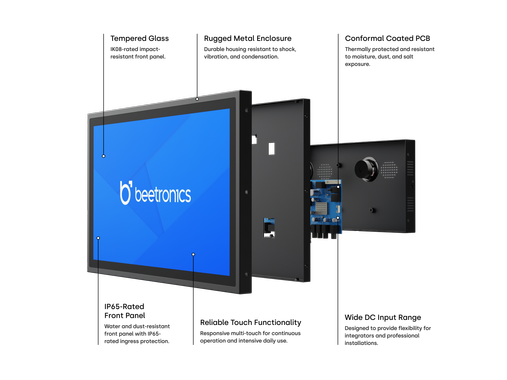

The 22TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

22 inch touchscreen metal

Easily integrated

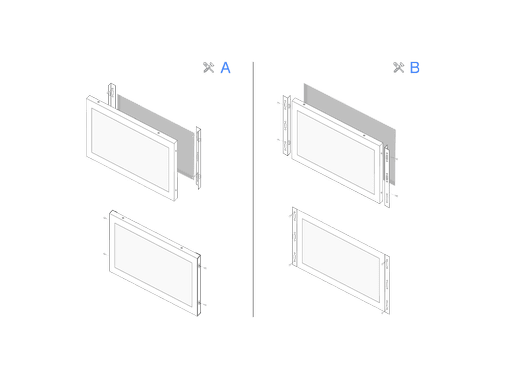

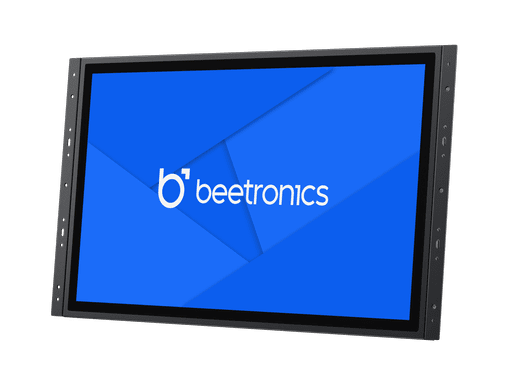

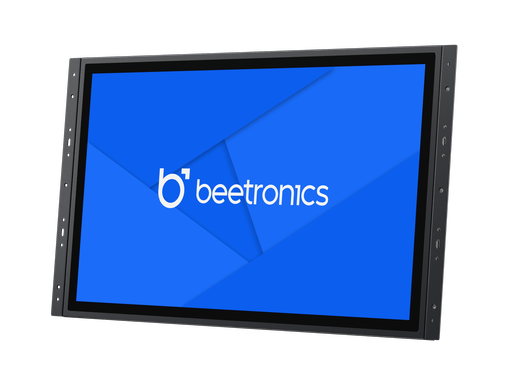

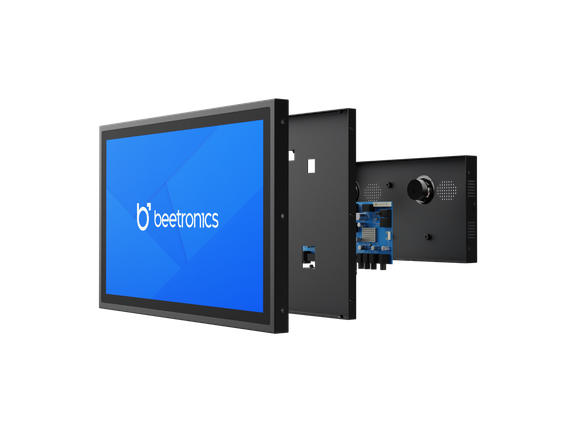

Thanks to numerous mounting options, the 22 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

22 inch touchscreen metal

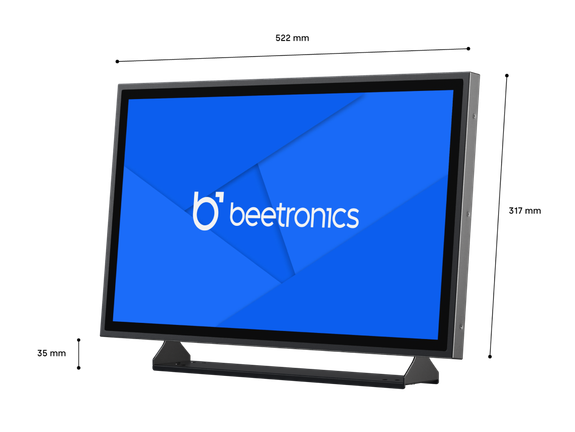

Desktop or wall mounting

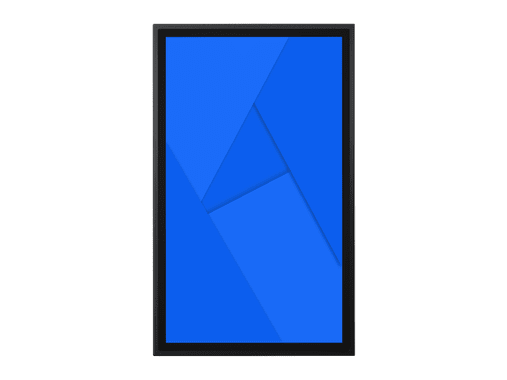

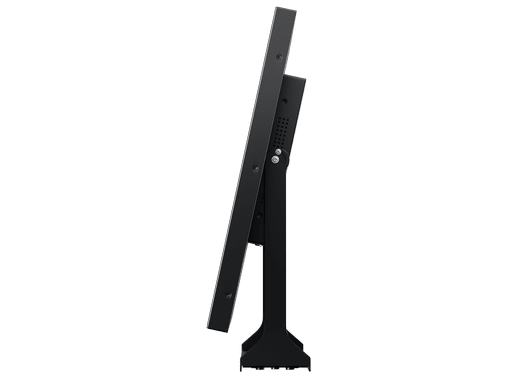

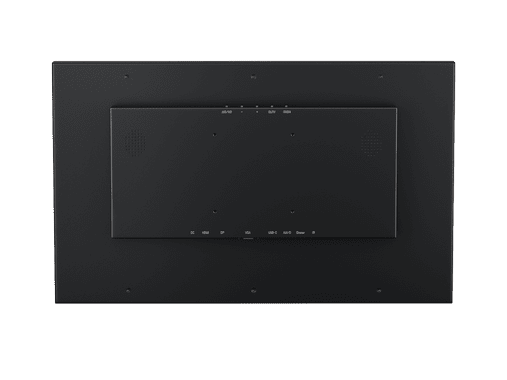

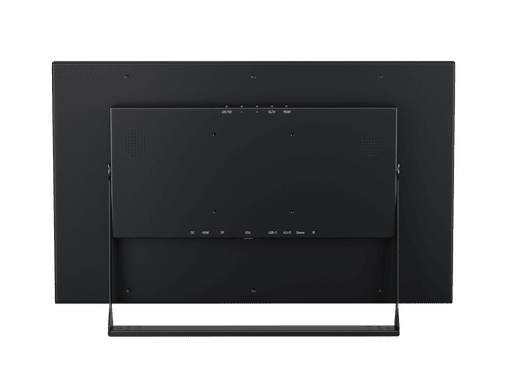

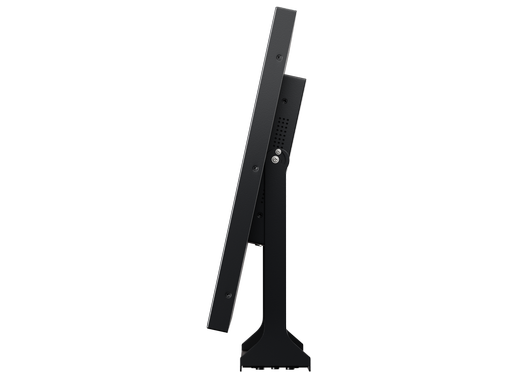

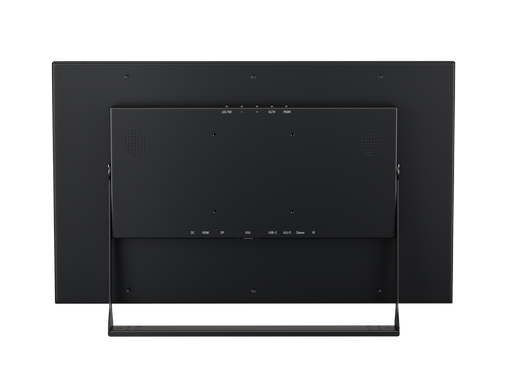

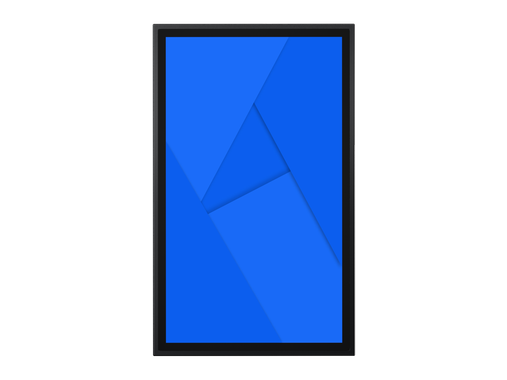

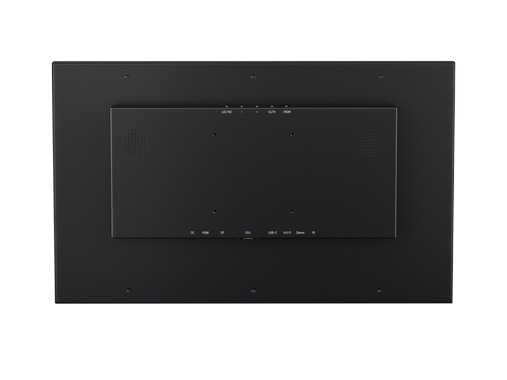

The Beetronics 22TS7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

22 inch touchscreen metal
22 inch touchscreen metal
Downloads
User manual
Quickstart
Technical drawing
3D Drawing
Datasheet
