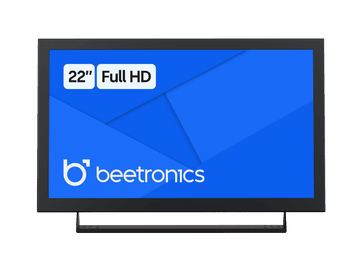

22 inch monitor metal
- 1920 x 1080 resolution (Full HD)
- Input: HDMI, VGA, BNC and RCA
- Desktop, flush and wall mountable

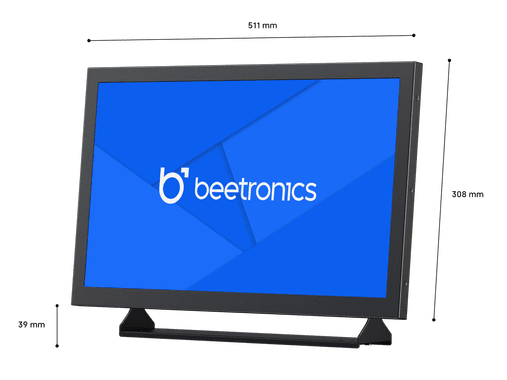

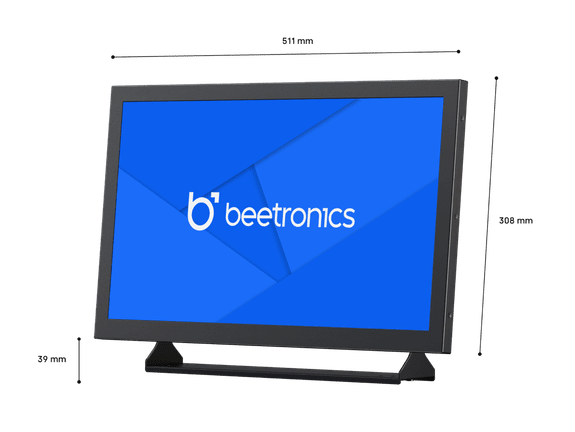

- 511 x 309 x 39 mm
- Description
- Specifications
- Connections
- Downloads

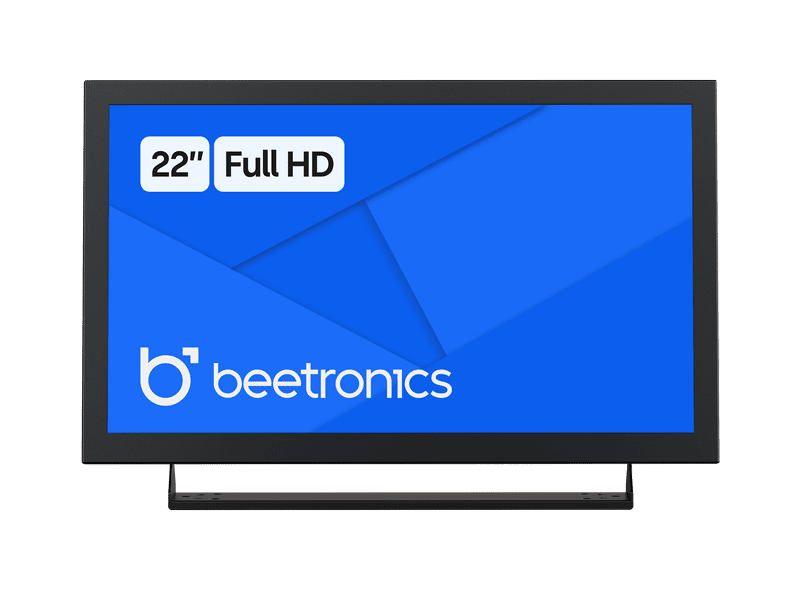

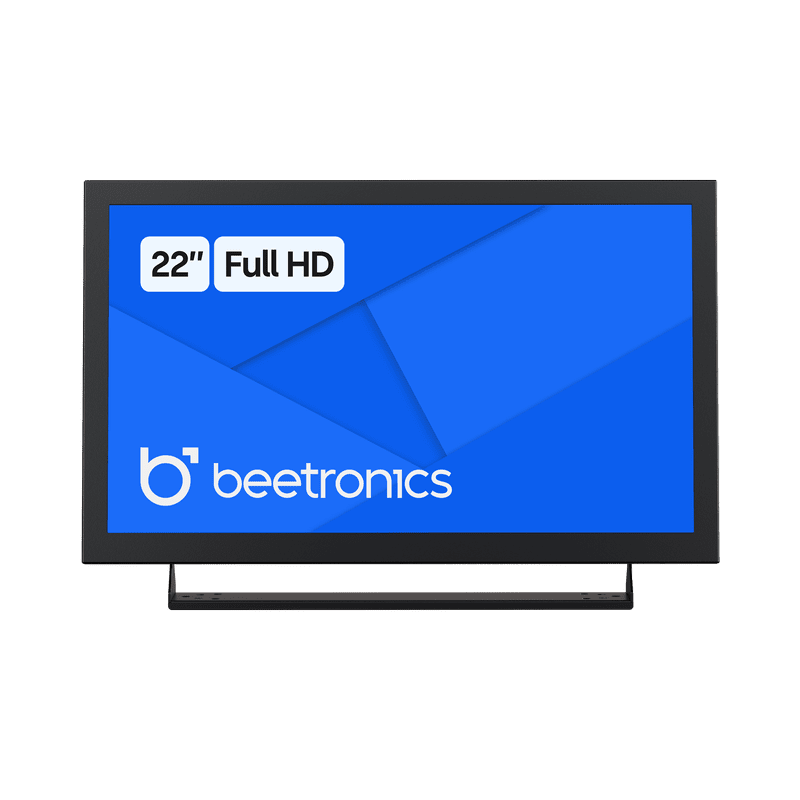

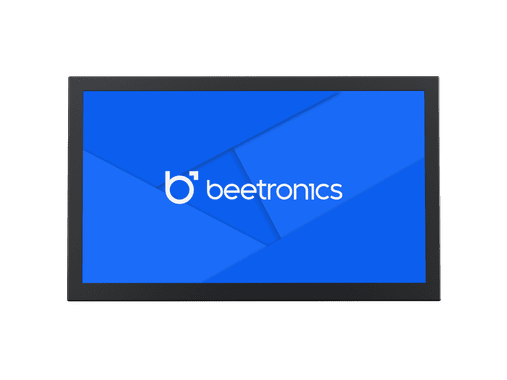

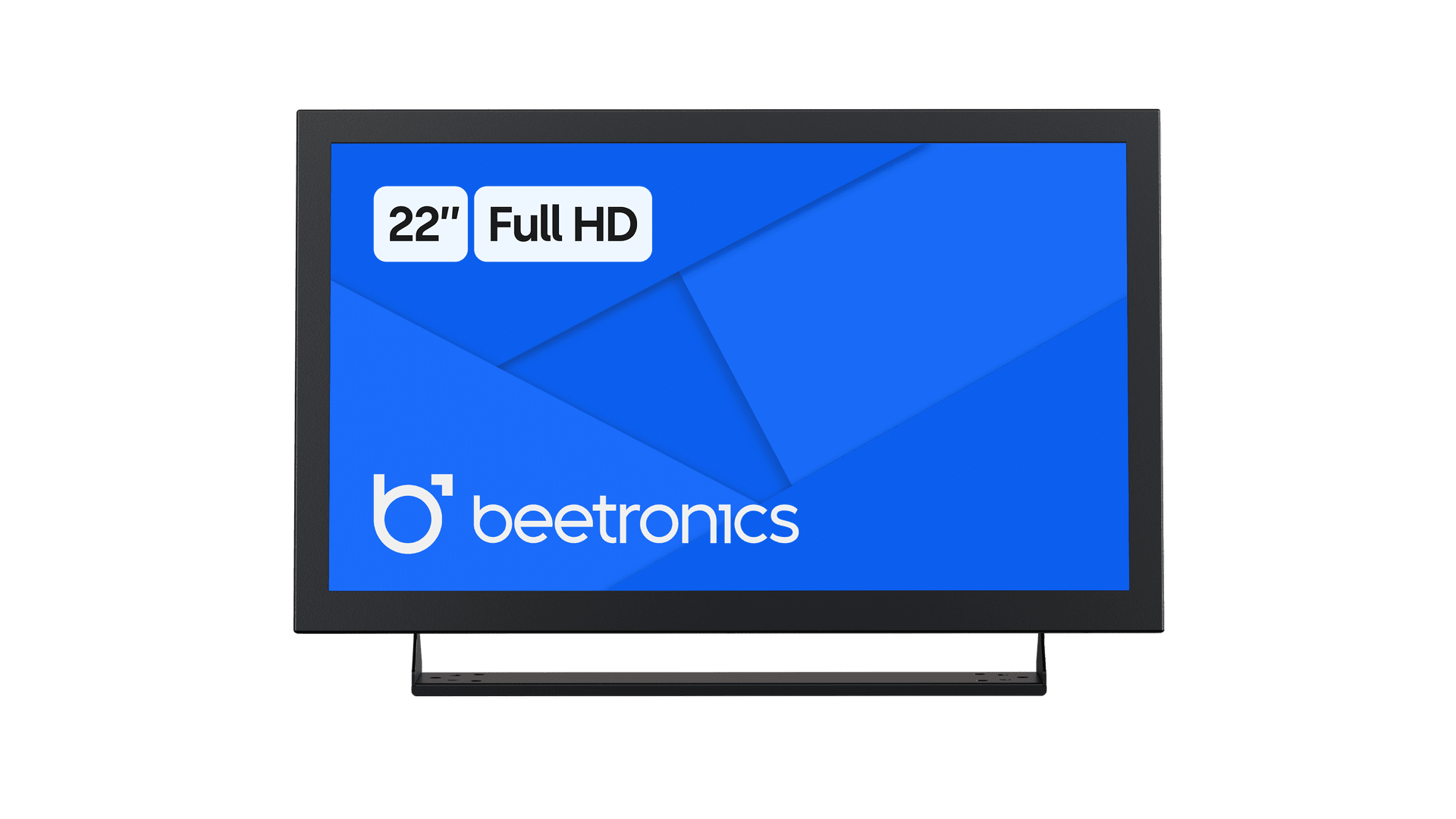

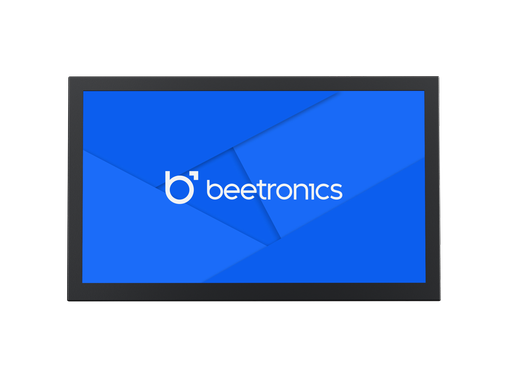

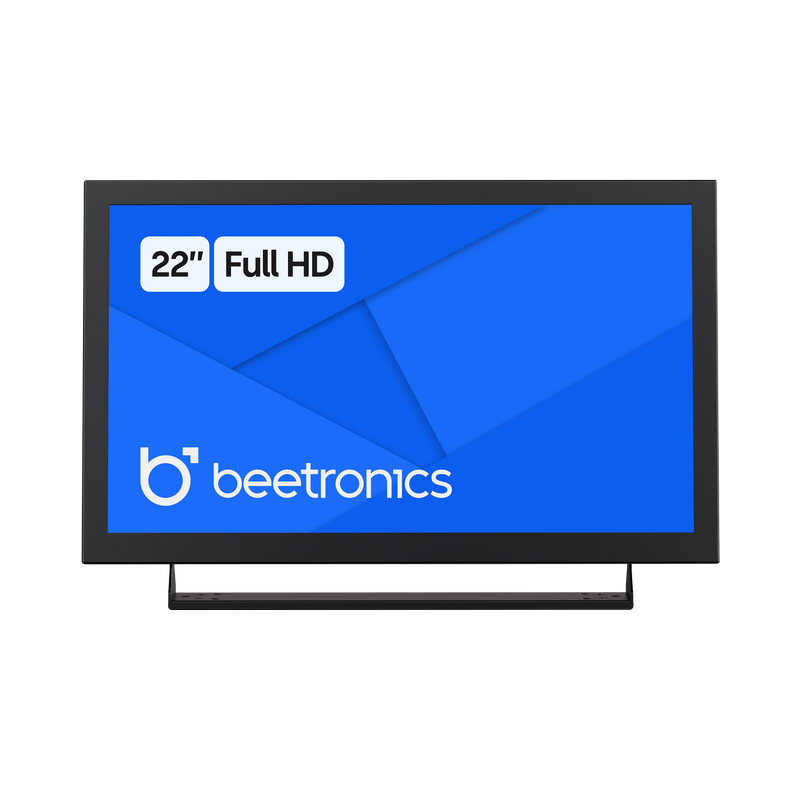

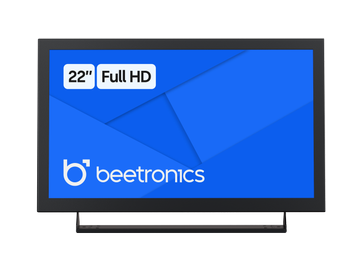

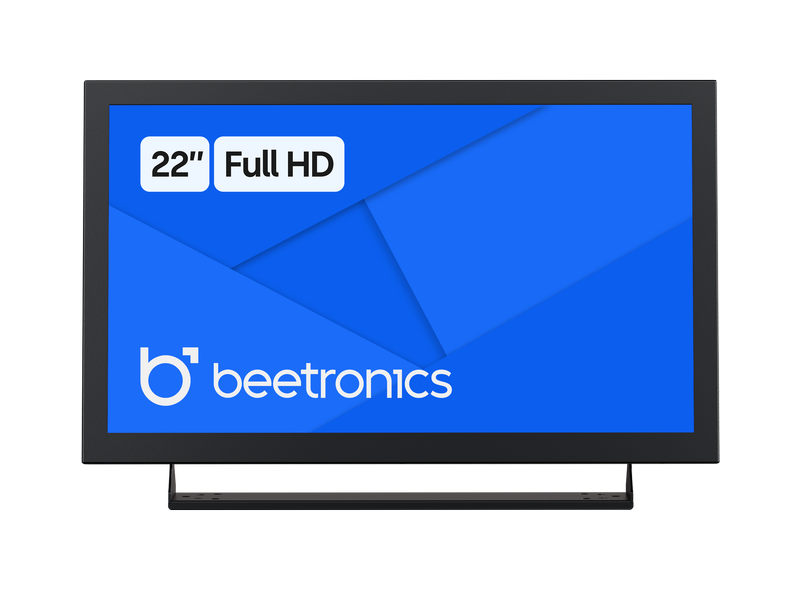

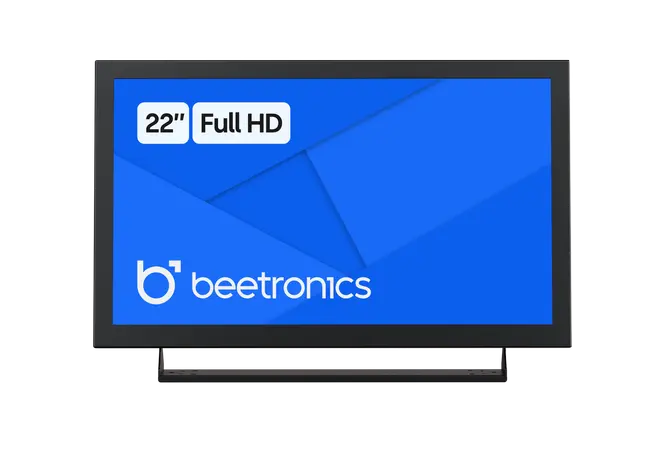

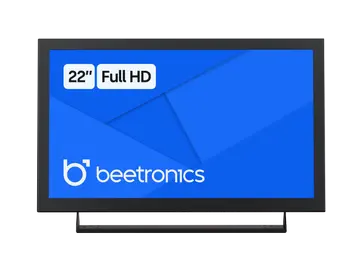

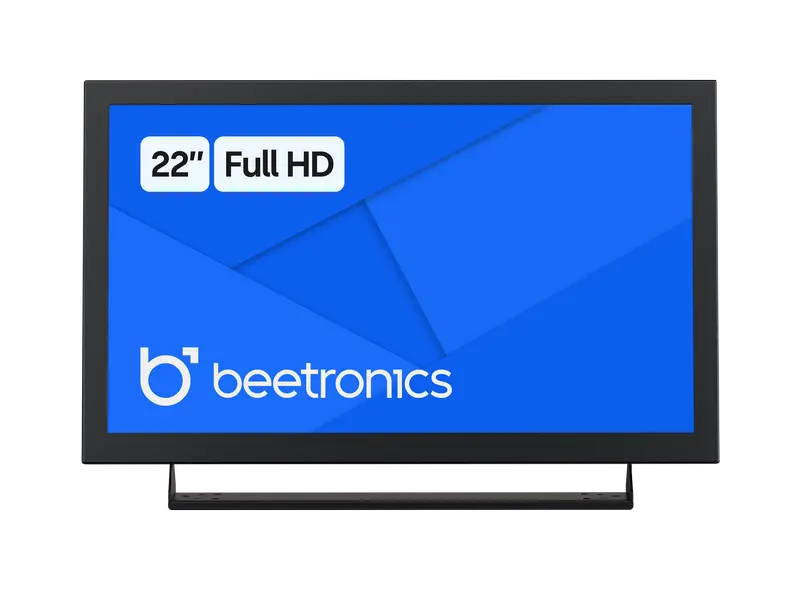

This 22 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 22 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 22HD7M can be connected via HDMI, VGA, BNC or RCA connections.
Outstanding Full HD image quality
Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

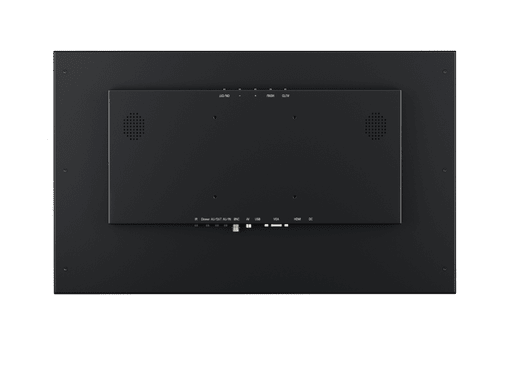

Versatile connectivity

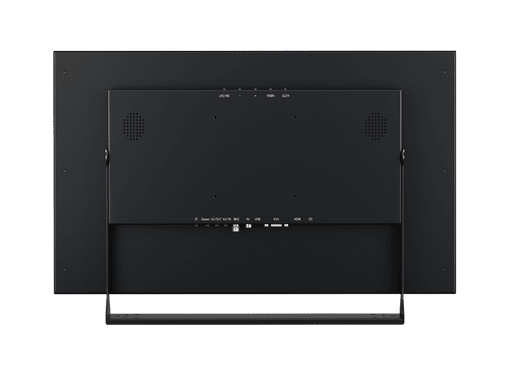

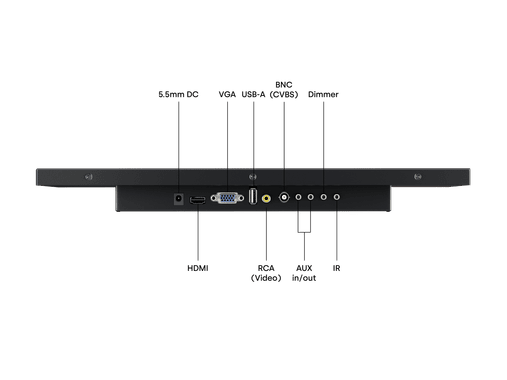

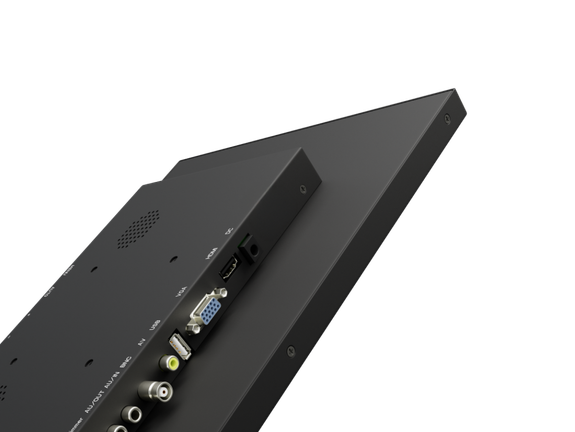

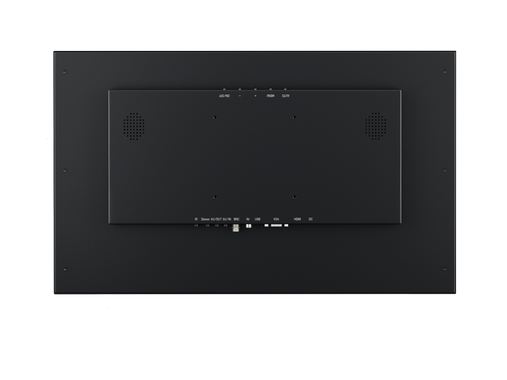

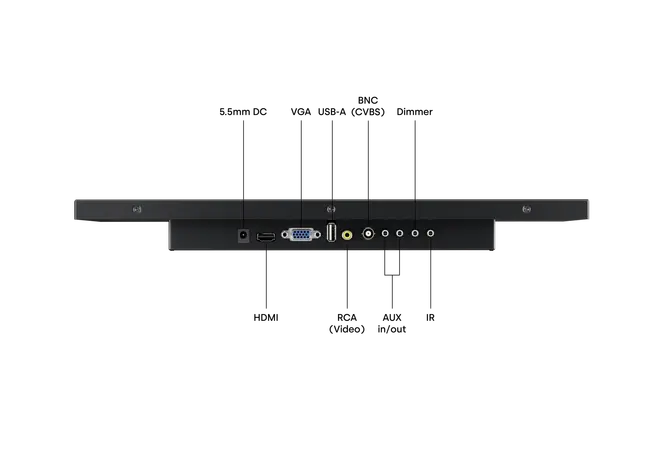

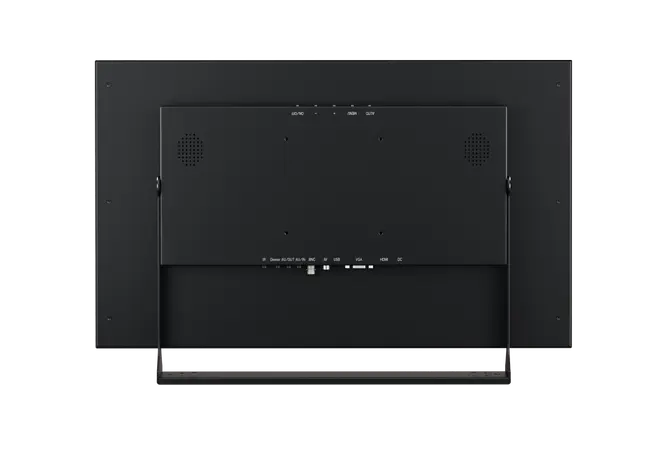

The 22HD7M has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

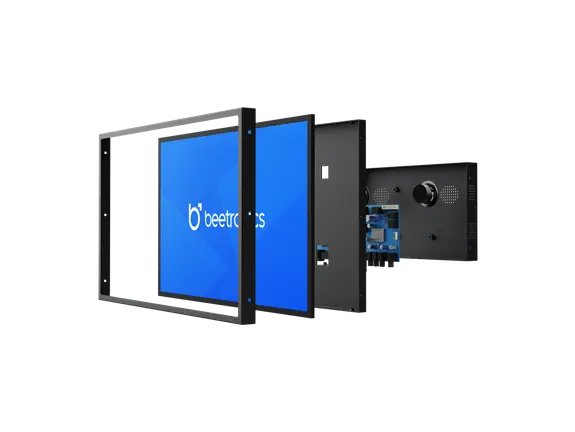

Designed for professional use
The 22HD7M is designed for continuous operation and professional use. The monitor is manufactured with high quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

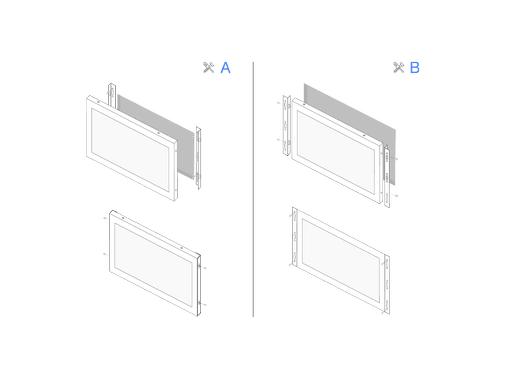

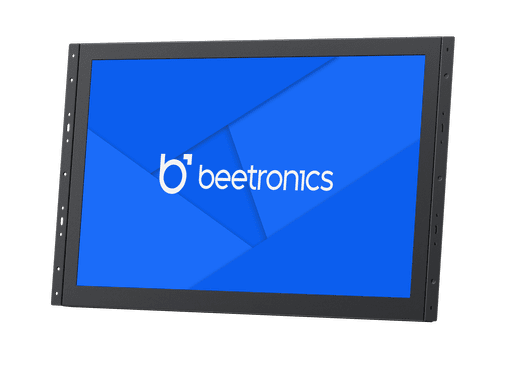

Easily integrated

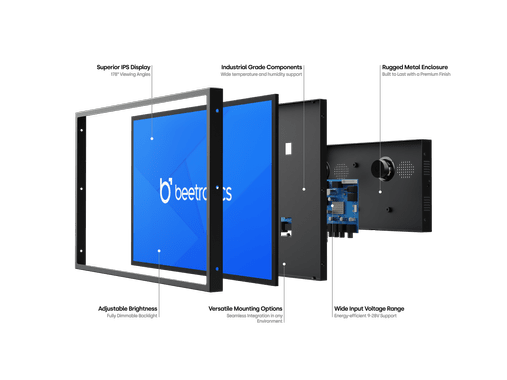

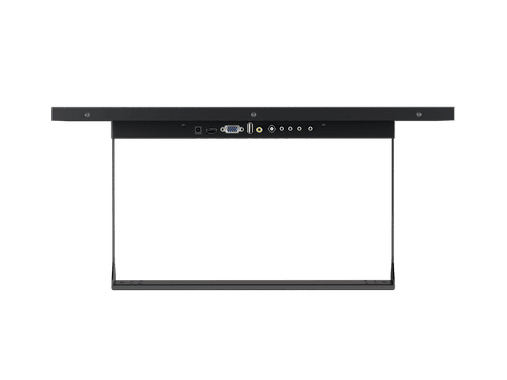

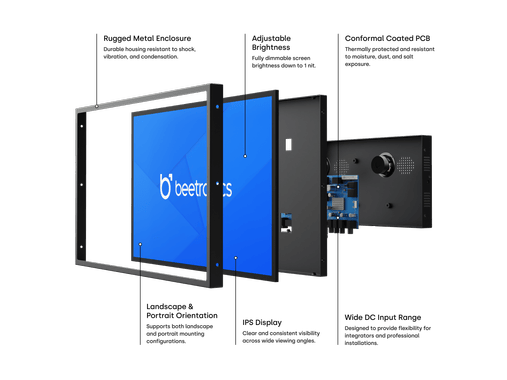

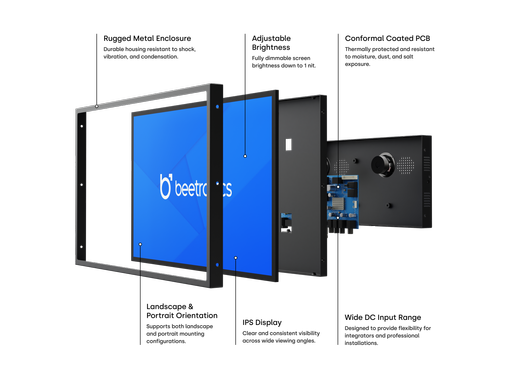

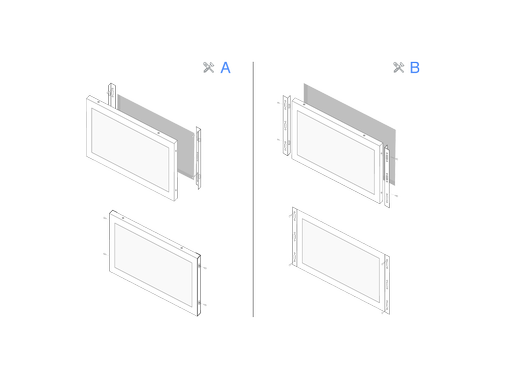

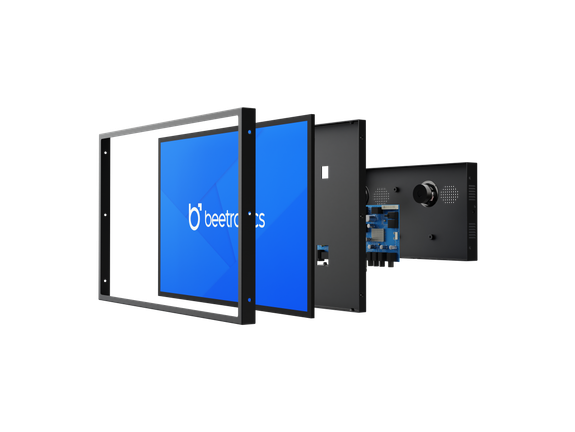

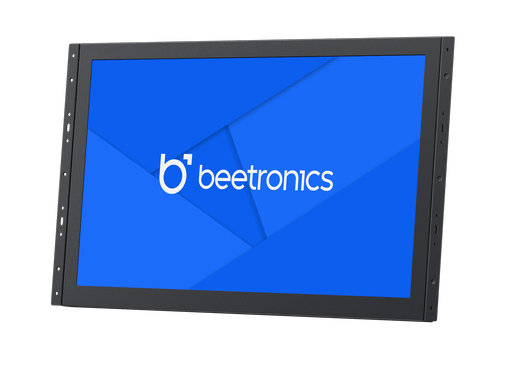

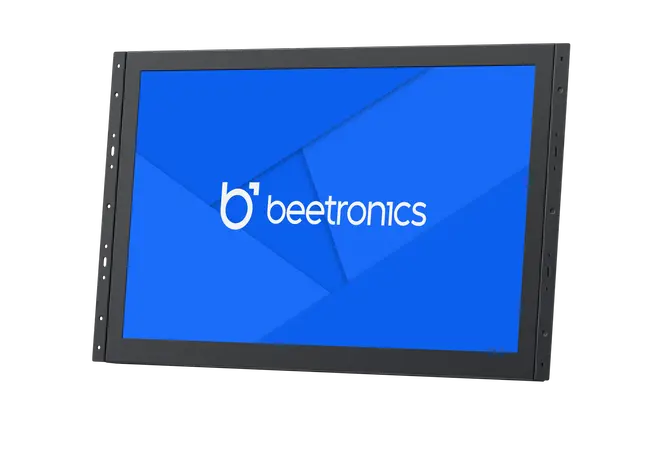

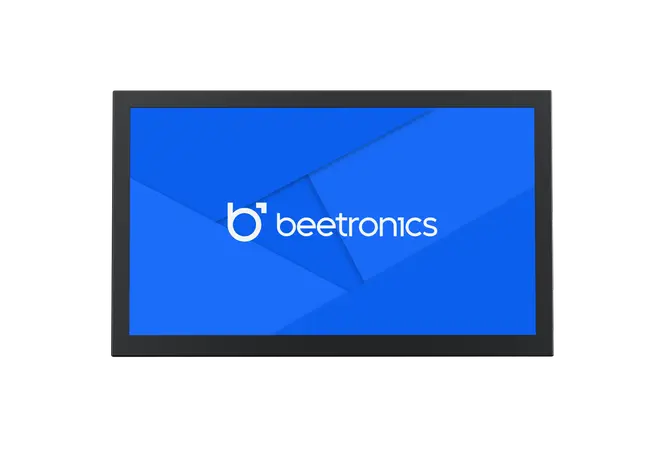

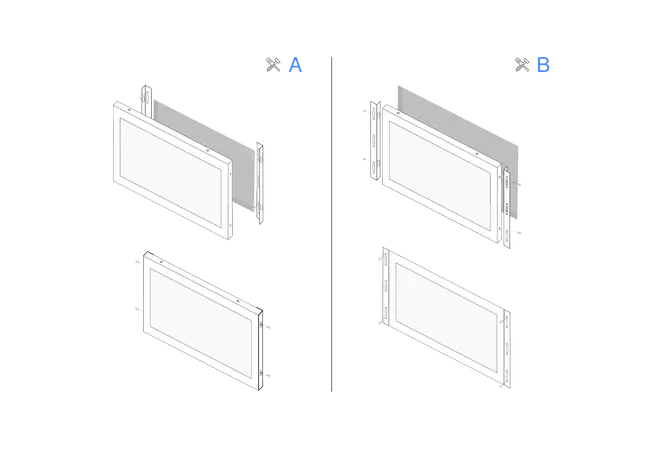

Thanks to numerous mounting options the 22 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

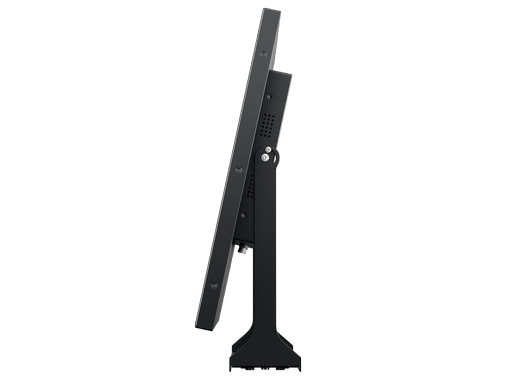

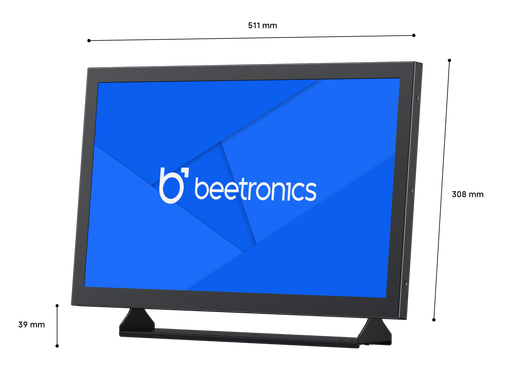

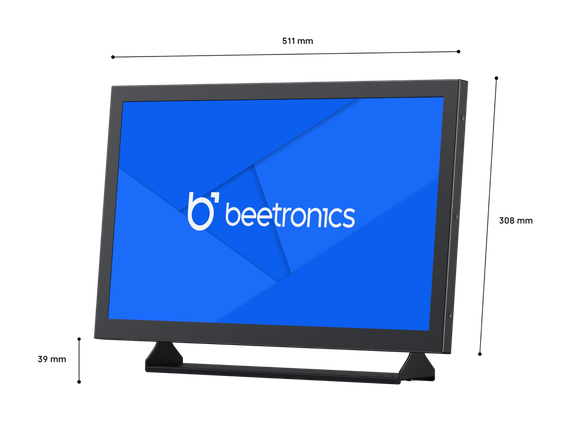

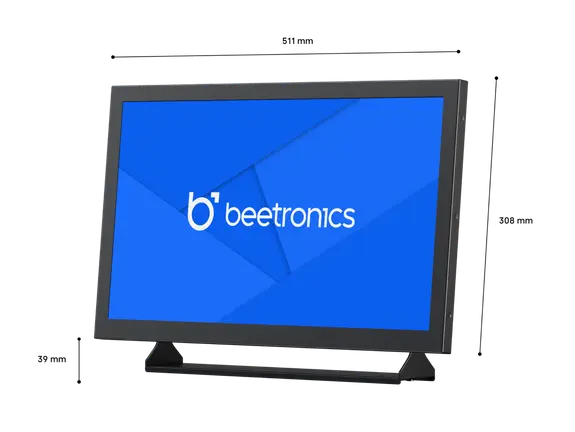

Desktop or wall mounting

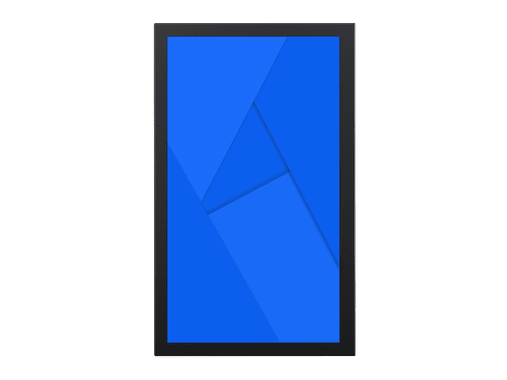

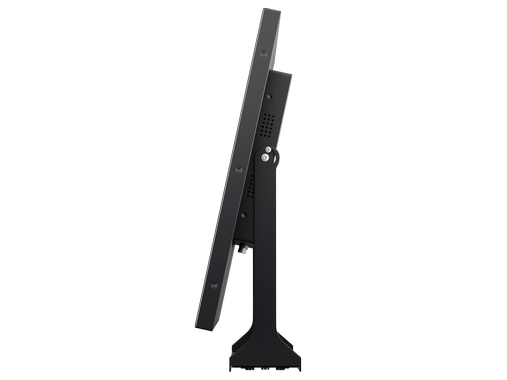

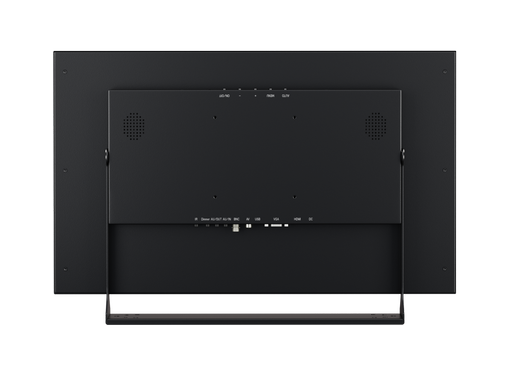

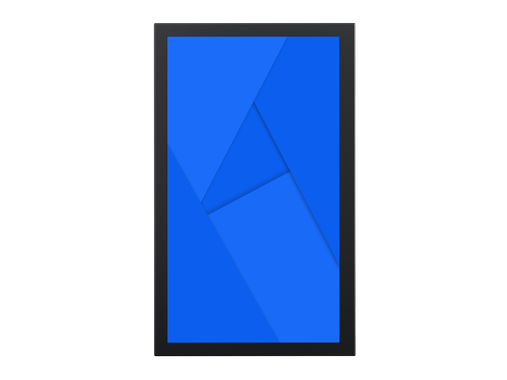

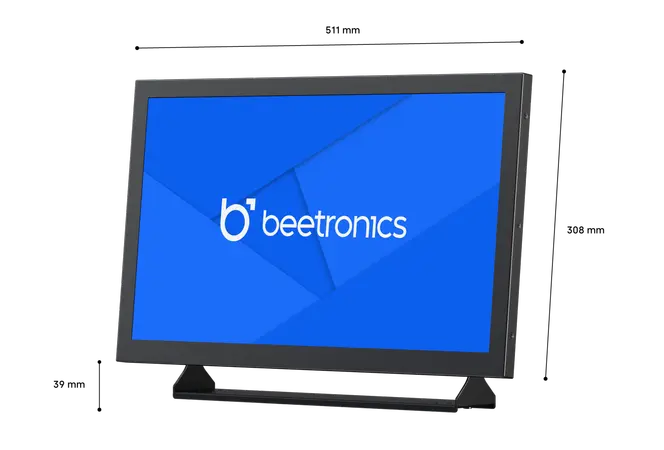

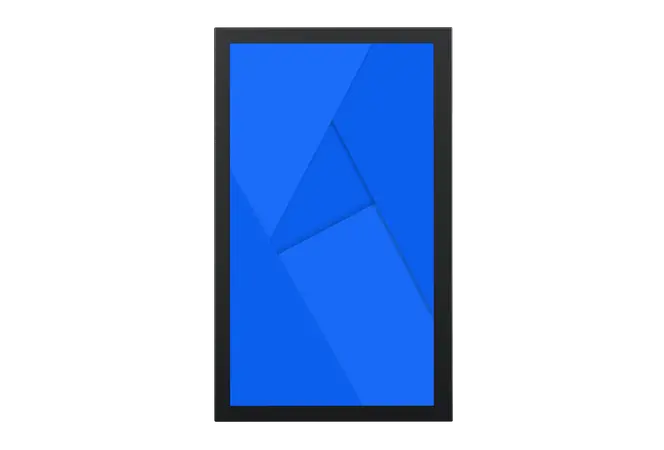

The Beetronics 22HD7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.
| General | |
|---|---|
| Manufacturer |
Beetronics
|
| Item number |
22HD7M
|
| Previous model |
22HDM
|
| Product name |
22 inch monitor metal
|
| Warranty |
2 years
|
| Datasheet | |
| Manual | |
| Panel | |
|---|---|
| Type |
Matte, LED-IPS
|
| Screen diagonal |
21,5 inches (546 mm)
|
| Aspect ratio |
16:9 (4:3 adjustable)
|
| Native resolution |
1920 x 1080
|
| Supported resolutions |
1920 x 1080 (max), 640 x 480 (min)
|
| Pixels per inch |
100 PPI
|
| Viewing angle |
178° horizontal, 178° vertical
|
| Colour encoding system |
PAL/NTSC/SECAM
|
| Brightness |
300 cd/m2
|
| Contrast |
3000:1
|
| Connectivity | |
|---|---|
| HDMI |
1x
|
| VGA |
1x
|
| BNC (CVBS) |
1x
|
| RCA video |
1x
|
| AUX input |
1x
|
| AUX output |
1x
|
| USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
| Size & weight | |
|---|---|
| Colour |
Black
|
| Weight |
5290 gram (5960 gram with stand)
|
| Width |
511 mm
|
| Height |
309 mm (+0 to 30 mm with stand)
|
| Thickness |
39 mm
|
| Display dimensions |
479 x 270 mm
|
| Technical drawing | |
| 3D drawing | |
| Features and functions | |
|---|---|
| Audio |
Integrated speakers
|
| Key-lock |
The control buttons can be blocked
|
| Auto-on |
Automatically powers on when it receives current or a signal
|
| Dimmable |
Adjustable backlight brightness
|
| Mirroring |
Image can be mirrored, horizontally and vertically
|
| Power | |
|---|---|
| Input voltage |
DC 9-33V
|
| Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
| Consumption |
<15 Watt (0.5 Watt standby)
|
| Environmental | |
|---|---|
| Operating temperature |
-20c° to +60c°
|
| Storage temperature |
-20c° to +70c°
|
| Operating humidity |
20% - 90% non-condensing
|
| Mounting | |
|---|---|
| Wall mount |
VESA (100 mm)
|
| Flush mount |
Mounting strips included
|
| Stand |
Adjustable and detachable
|
| Certifications & Standards | |
|---|---|
| Certifications |
CE, FCC, RoHS, REACH
|
| Package content | |
|---|---|
| Includes |

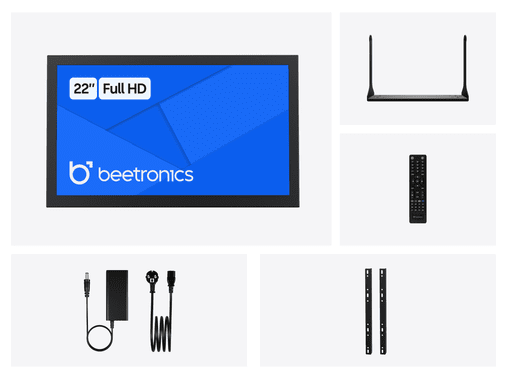

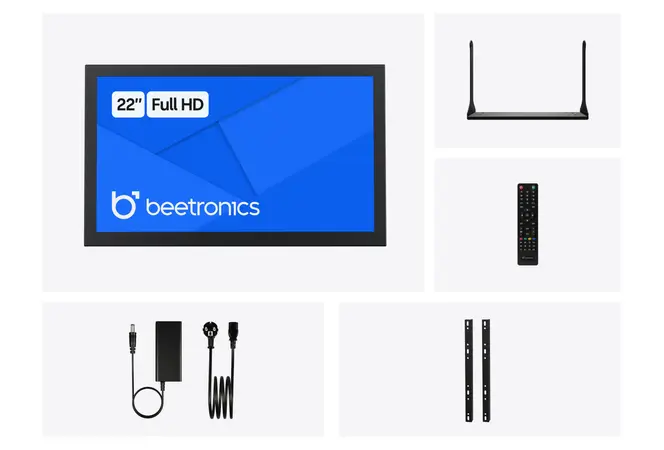

Monitor, Stand, Remote control, Mounting strips, Mains adaptor, Manual
|
| Manual | Download PDF |
| Technical drawing | Download PDF |
| 3D drawing | Download CAD/STP |
| Datasheet | Download PDF |
