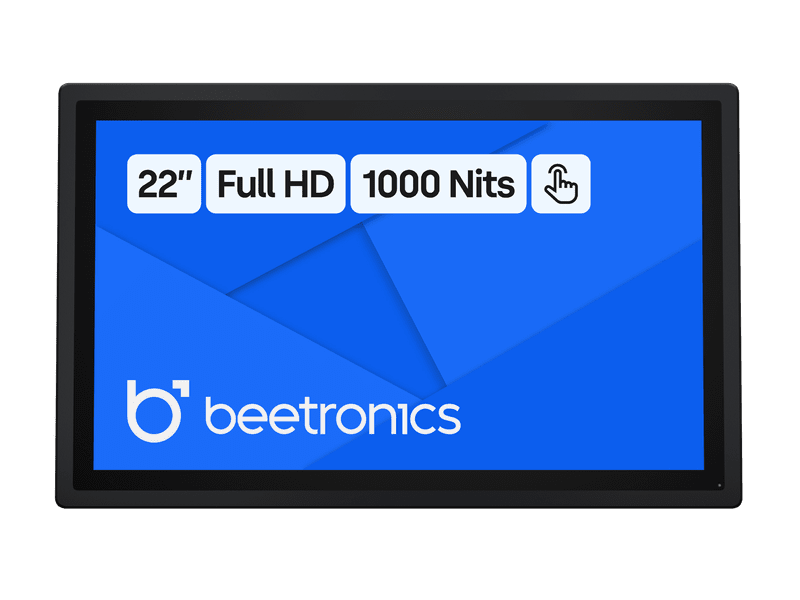

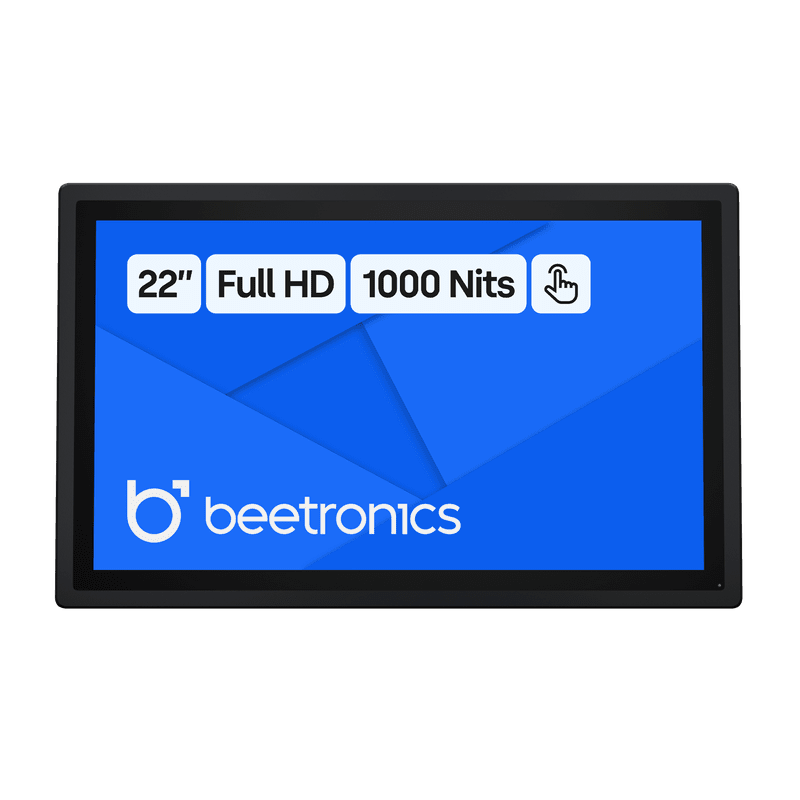

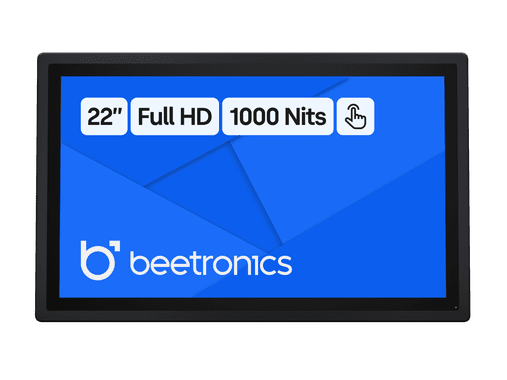

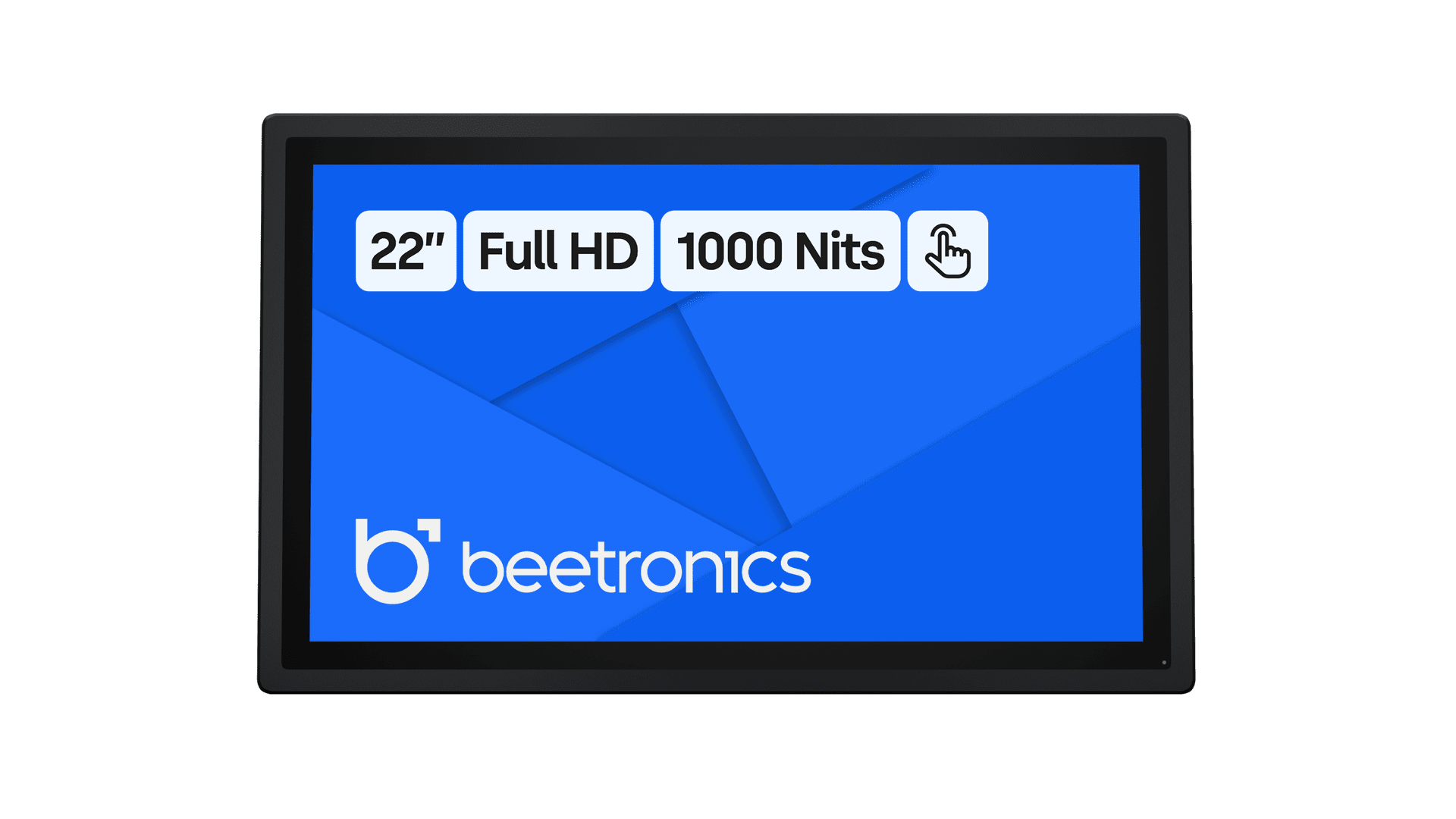

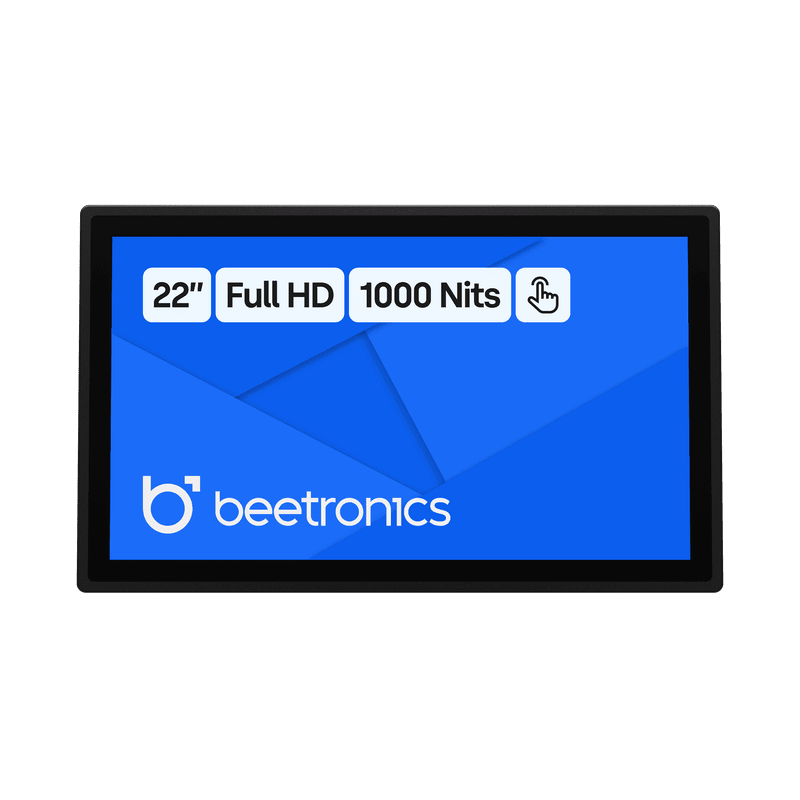

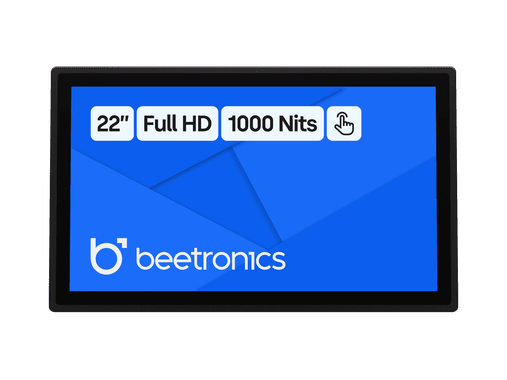

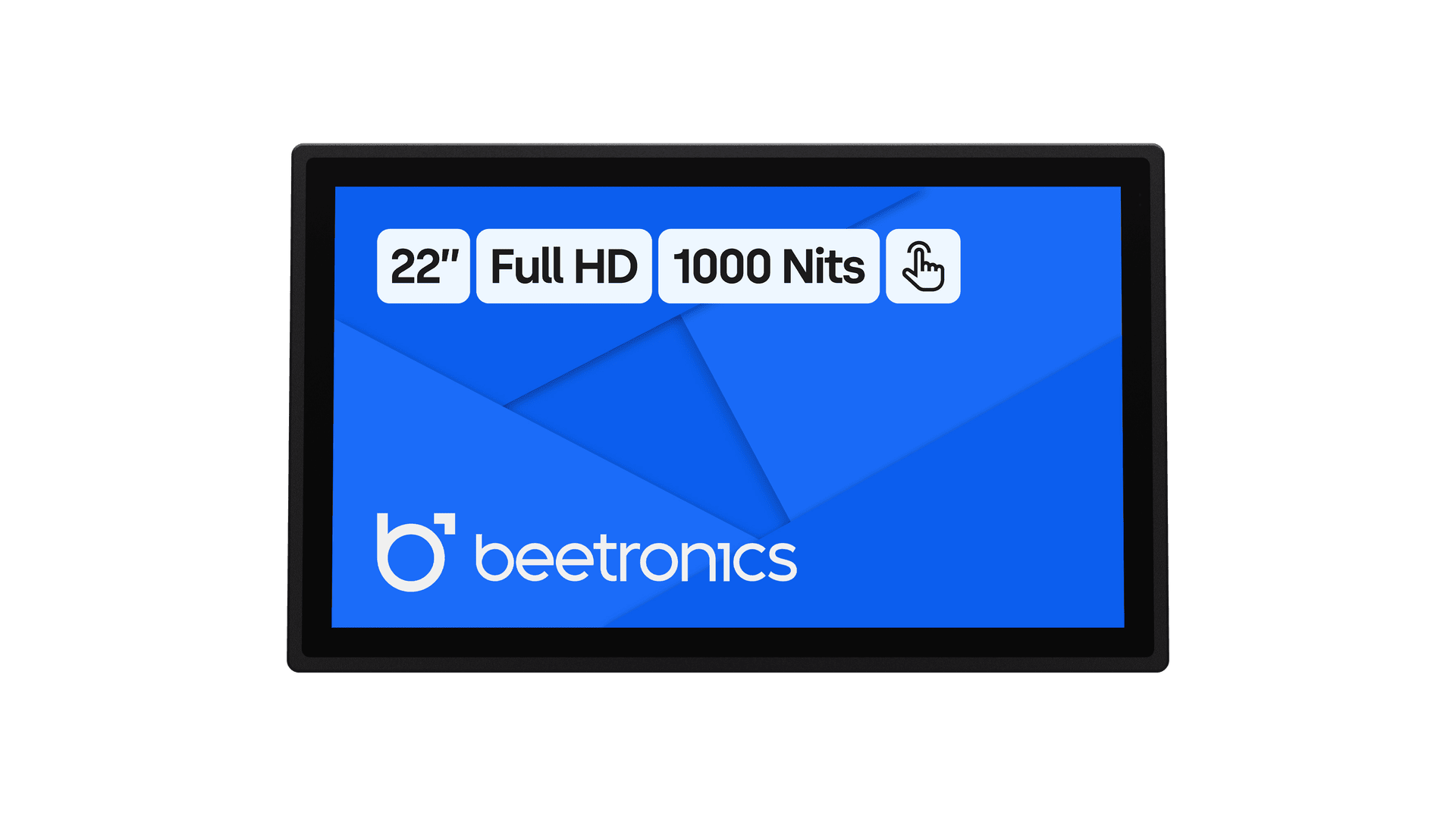

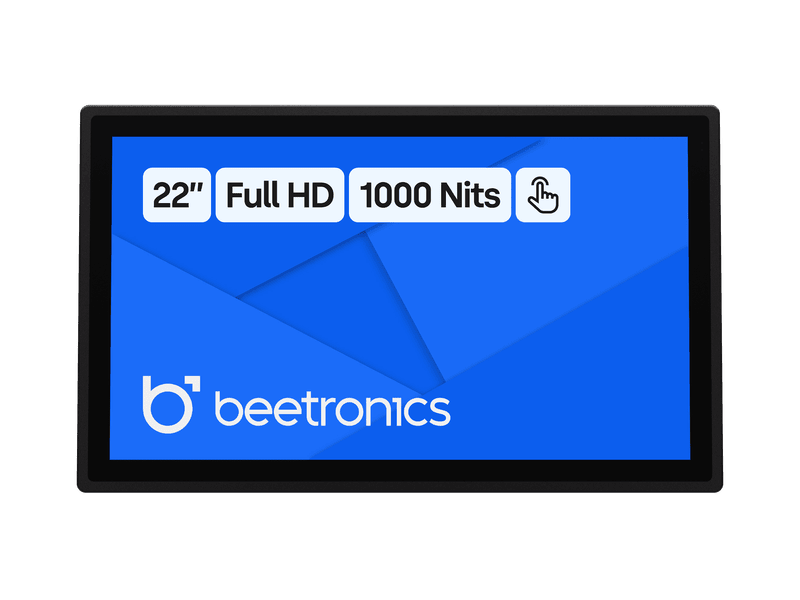

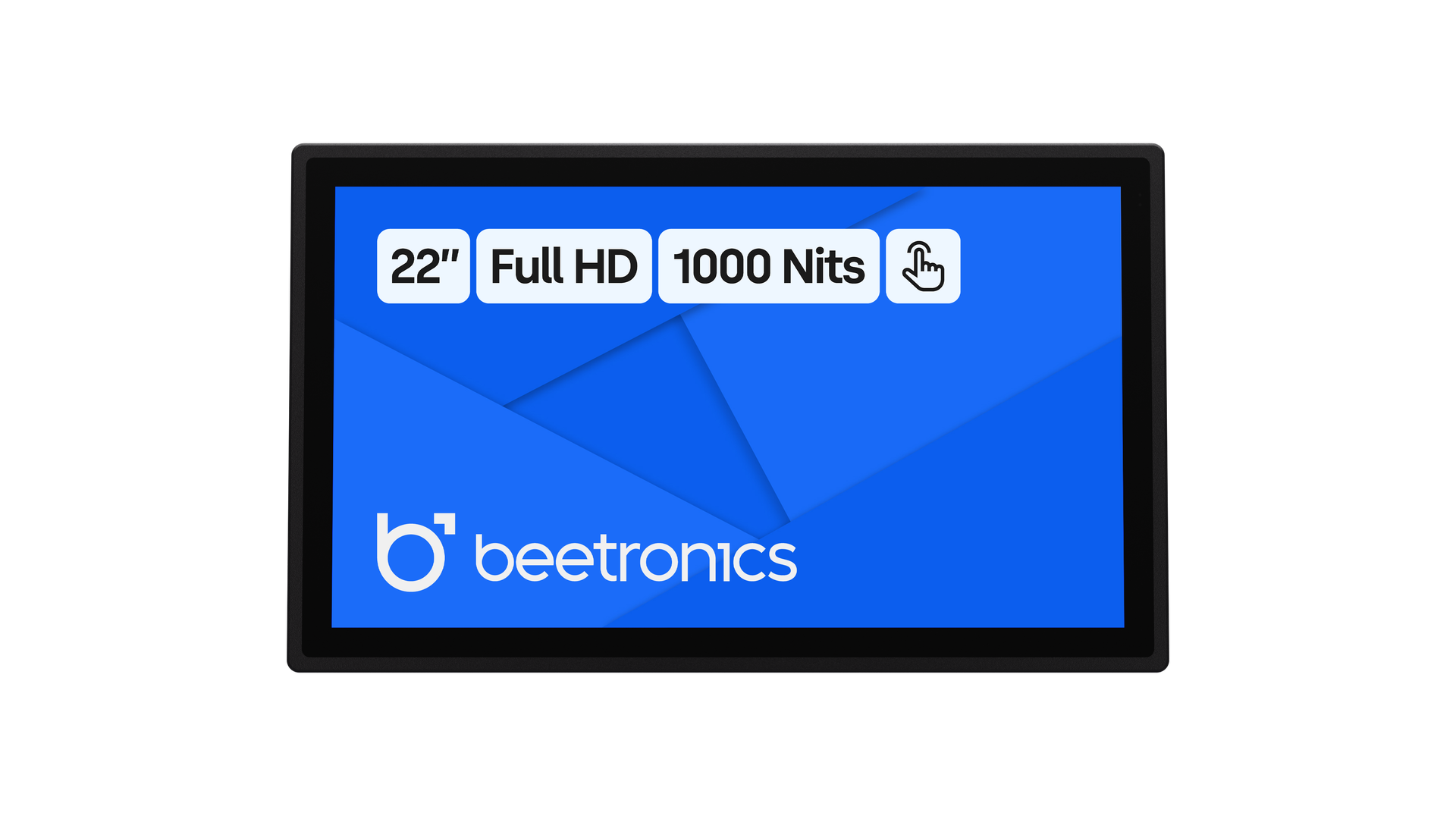

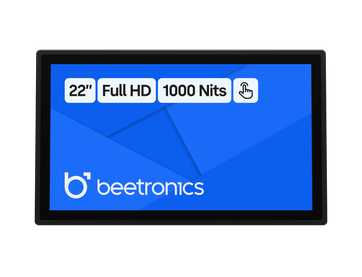

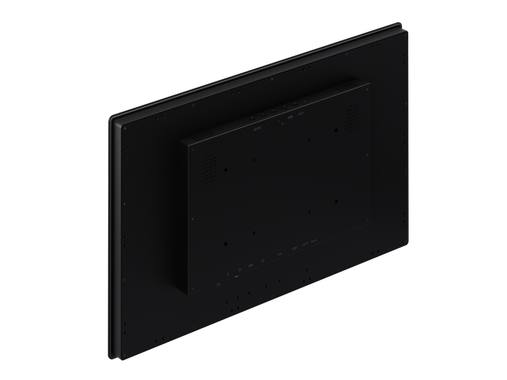

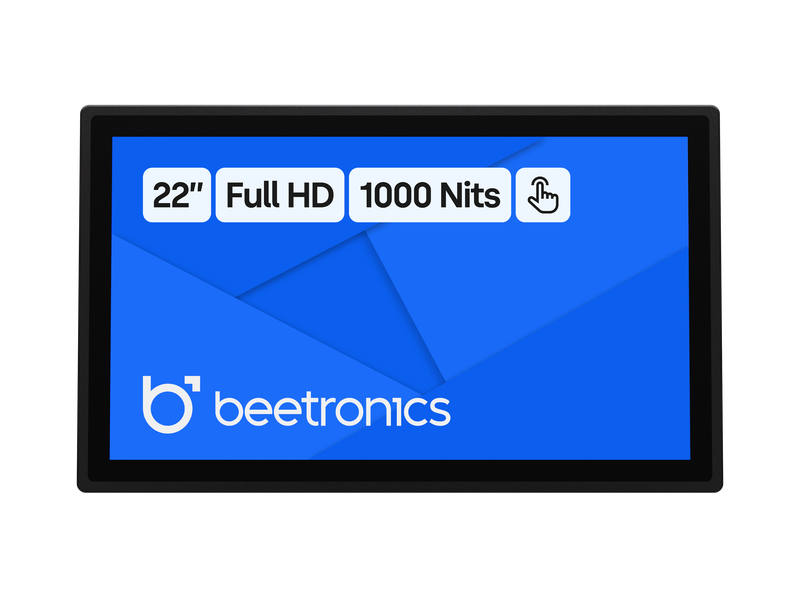

22 Inch Touchscreen Metal
(High Brightness)

Model: 22HB9M/U1
100+ units in stock
Features
  1. High-brightness Full-HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, panel mount

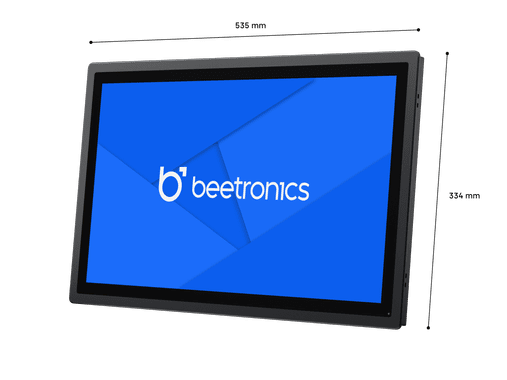

  4. External dimensions: 532 x 323 x 46 mm

This 22-inch touchscreen monitor features a matte, Full HD panel with a high brightness of 1000 nits. The display is designed for both indoor and outdoor use and guarantees excellent visibility in any environment. Thanks to its sturdy and compact metal casing, the 22HB9M/U1 can be seamlessly integrated into any application. The touchscreen is suitable for professional, commercial, and industrial use.

€ 849,00
€ 1.044,27 VAT Incl.
Order by 3:00 pm for delivery on Friday.
Long-term availability Consistently available for years to come.
Free shipping & returns No shipping costs and free 30-day returns.
5,000+ reviews, rated 4.8/5 Trusted by industry leaders worldwide.
Product highlights

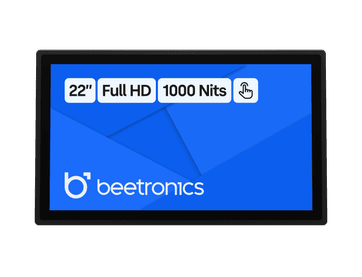

22 Inch Touchscreen Metal (High Brightness)

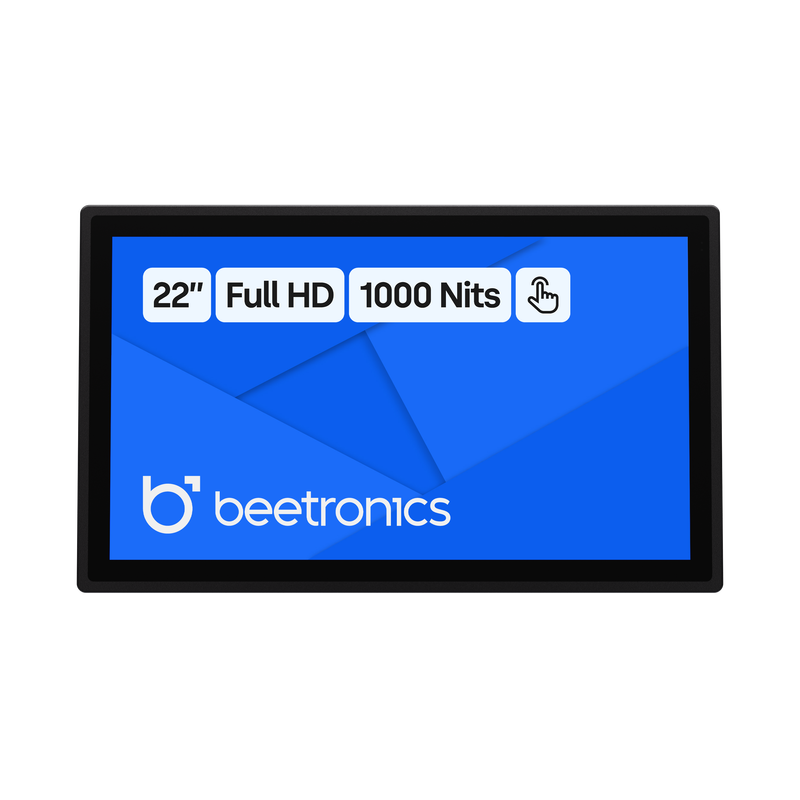

Sunlight-readable Full HD multi-touch panel

The 22-inch touchscreen monitor is equipped with a Full HD panel that provides a sharp image with true-to-life colors. The touchscreen has a matte front panel with a high brightness of 1000 nits and is optically bonded. This ensures an easily readable image without reflections even in the brightest environments.

The screen brightness can also be automatically dimmed based on ambient light via the integrated light sensor. The brightness can also be manually adjusted using the included remote control or an optional dimmer knob.

22 Inch Touchscreen Metal (High Brightness)

Compatible with Windows, macOS, ChromeOS and Linux

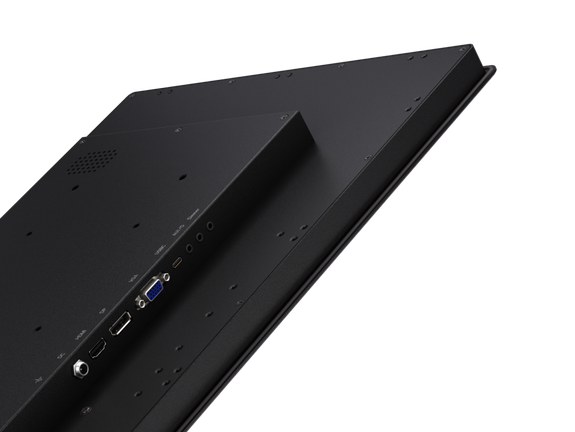

The 22-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

22 Inch Touchscreen Metal (High Brightness)

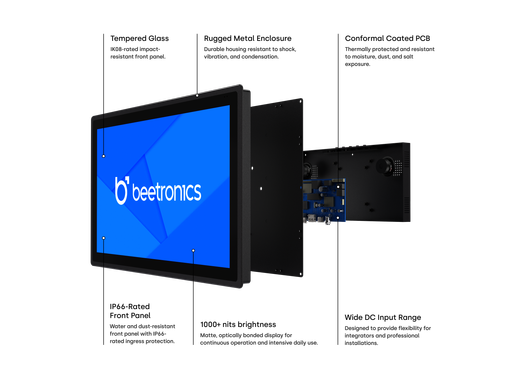

Designed for professional use

The 22HB9M/U1 is designed for professional applications and is suitable for continuous use. The display is produced using high-quality industrial components and features a robust metal casing with a sturdy front panel.

The display supports a wide input voltage of 10-36V DC, allowing it to be plugged direclly into an outlet or the popular 12V or 24V options.

Mounting options

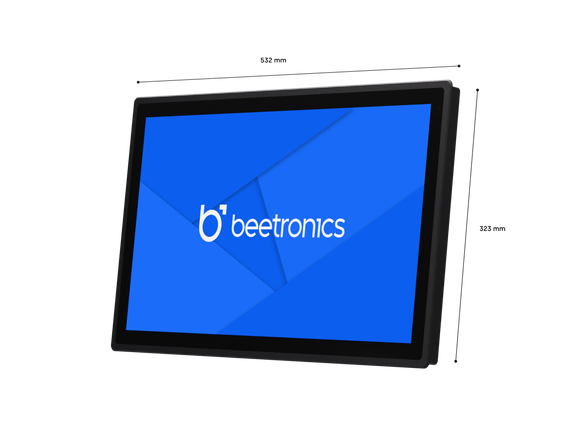

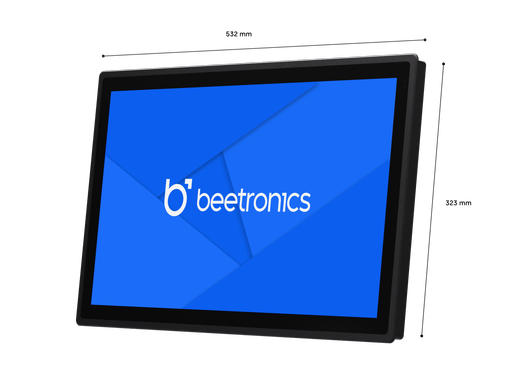

Panel mount

The monitor is designed for panel mounting, delivering a robust, water-resistant, and dust-proof solution. With its sleek, symmetrical bezel and integrated rubber sealing ring, it ensures a seamless, professional finish. This maintenance-free touchscreen requires no ventilation and is built for both indoor and outdoor environments. It supports mounting in both landscape and portrait orientations, offering flexible installation options to suit a variety of settings.

Wall mount

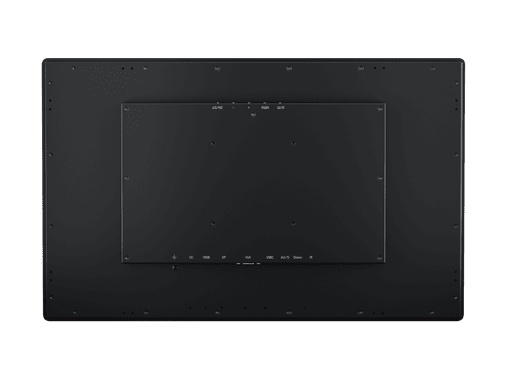

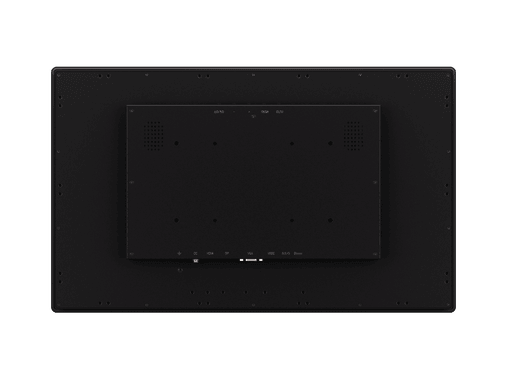

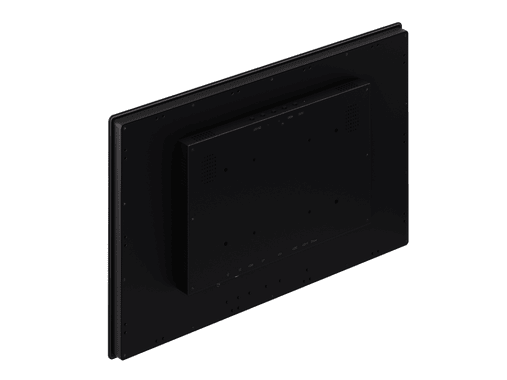

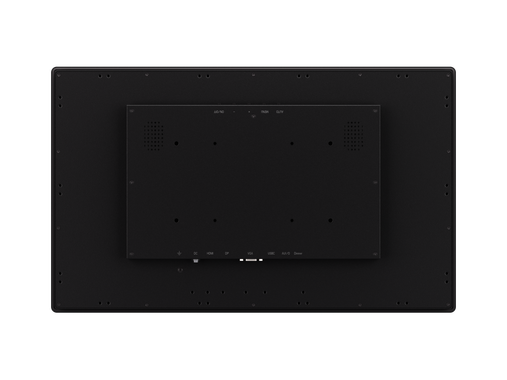

The touchscreen includes a universal 100mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Stand

The touchscreen is equipped with a universal 100mm VESA mounting pattern on the back of the housing. This allows the touchscreen to be mounted on our optional VDK7 desk stand, as well as on universal stands and mounting brackets. It can be mounted in both landscape and portrait orientation.

Specifications
General
Manufacturer
Beetronics
Item number
22HB9M/U1
Product name
22 Inch Touchscreen Metal (High Brightness)
Warranty
2 years
Datasheet
Download PDF
Drivers
Download touchscreen driver
User manual
Download PDF
Quickstart
Download PDF
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Tahoe, Sequoia, Sonoma
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Samsung DeX
All Samsung DeX versions
Panel
Diagonal size
21.5 inches (548 mm)
Aspect ratio
16:9 (4:3 adjustable)
MTBF
50K
Native resolution
1920 x 1080
Supported resolutions
1920 x 1080 (max), 640 x 480 (min)
Pixels per inch
102 PPI
Brightness
1000 nits
Contrast
1000:1
Color encoding system
PAL/NTSC/SECAM
Viewing angle
178° horizontal, 178° vertical
Surface
Mat tempered glas
Touch technology
Capacitive, 10-point multi-touch (PCAP), optically bonded
Touch control
Stylus, hand, glove

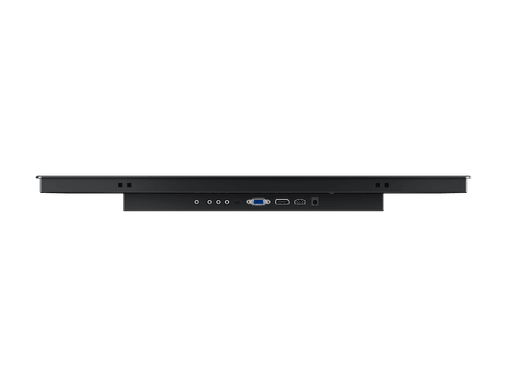

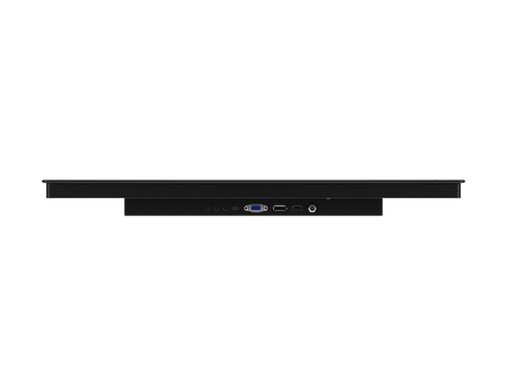

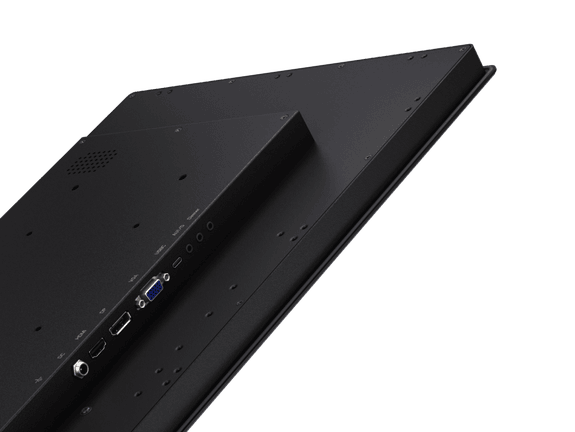

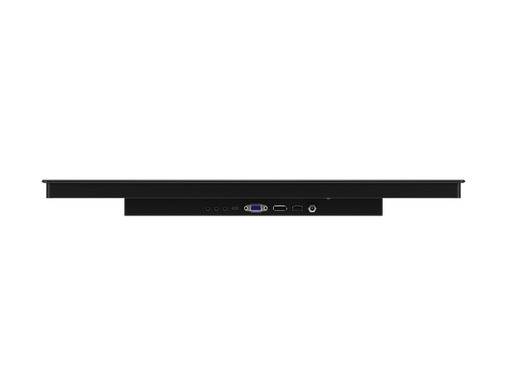

Connectivity
HDMI
1x
DisplayPort
1x
VGA
1x
USB-C
1x Video, audio, touch
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX input (3.5mm)
1x
AUX output (3.5 mm)
1x
Size & weight
Colour
Black
Dimensions (without stand)
532 x 323 x 46 mm
Active area
478 x 269 mm
Weight
5640 grams
Technical drawing (2D)
Download PDF
Technical drawing (3D)
Download CAD/STP
Features and functions
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Automatic dimming based on ambient light via an integrated light sensor. Manual dimming via the remote control or an optional dimmer knob.

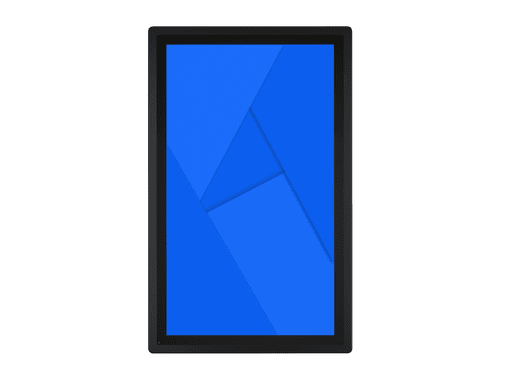

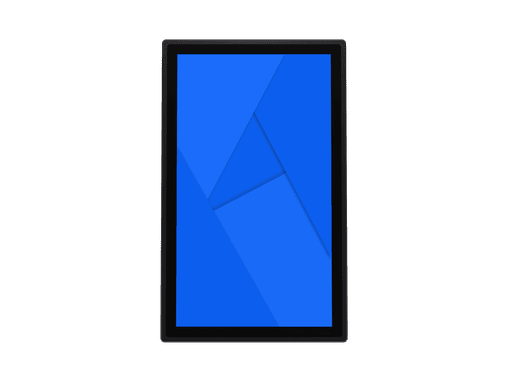

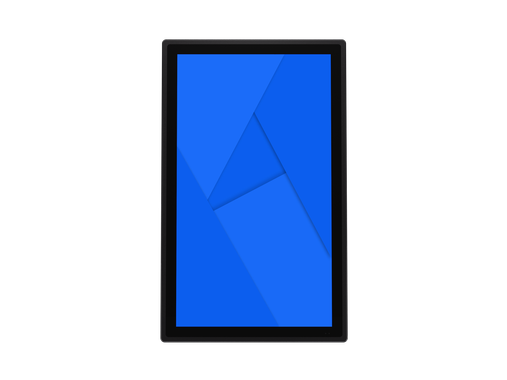

Orientation
Landscape, portrait, face-up
Power
Input voltage
DC 10-36V
Consumption
40 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 19V-2.5A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Operating temperature
-20°C to +70°C
Storage temperature
-30°C to +80°C
Operating humidity
10% - 90% non-condensing
Mounting
Wall mount
VESA 100x100mm
Flush mount
Panel mount accessories included
Compliance
Ingress protection (IP)
IP66 when panel mounted
Impact protection (IK)
IK08
Standards & certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, SAE J1113, EN50155, EN45545-2, CCC, CAN ICES-003(A)/NMB-003(A)

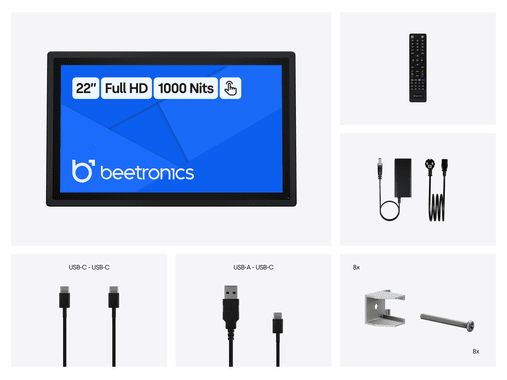

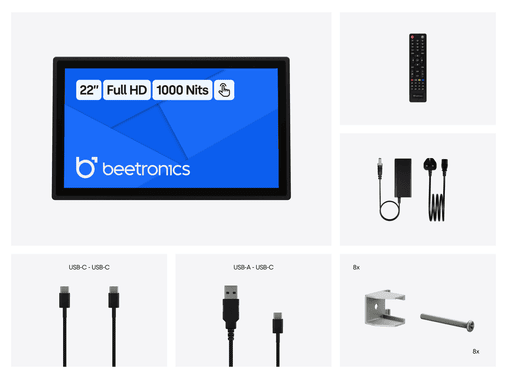

Package content
Includes
Touchscreen, USB-C to USB-C cable, USB-C to USB-A cable, remote control, mounting clamps (8x), mounting strips (8x), screws (8x), rubber seal, power adapter, manual
Compatible accessories
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Touch pen
Compatible with CTS7 capacitive touchscreen stylus
Downloads
Click to download product documentation.
Manual(PDF)
Quickstart(PDF)
2D drawing (PDF)
3D drawing (STP)
Datasheet (PDF)
Touchscreen drivers (DRIVER)
