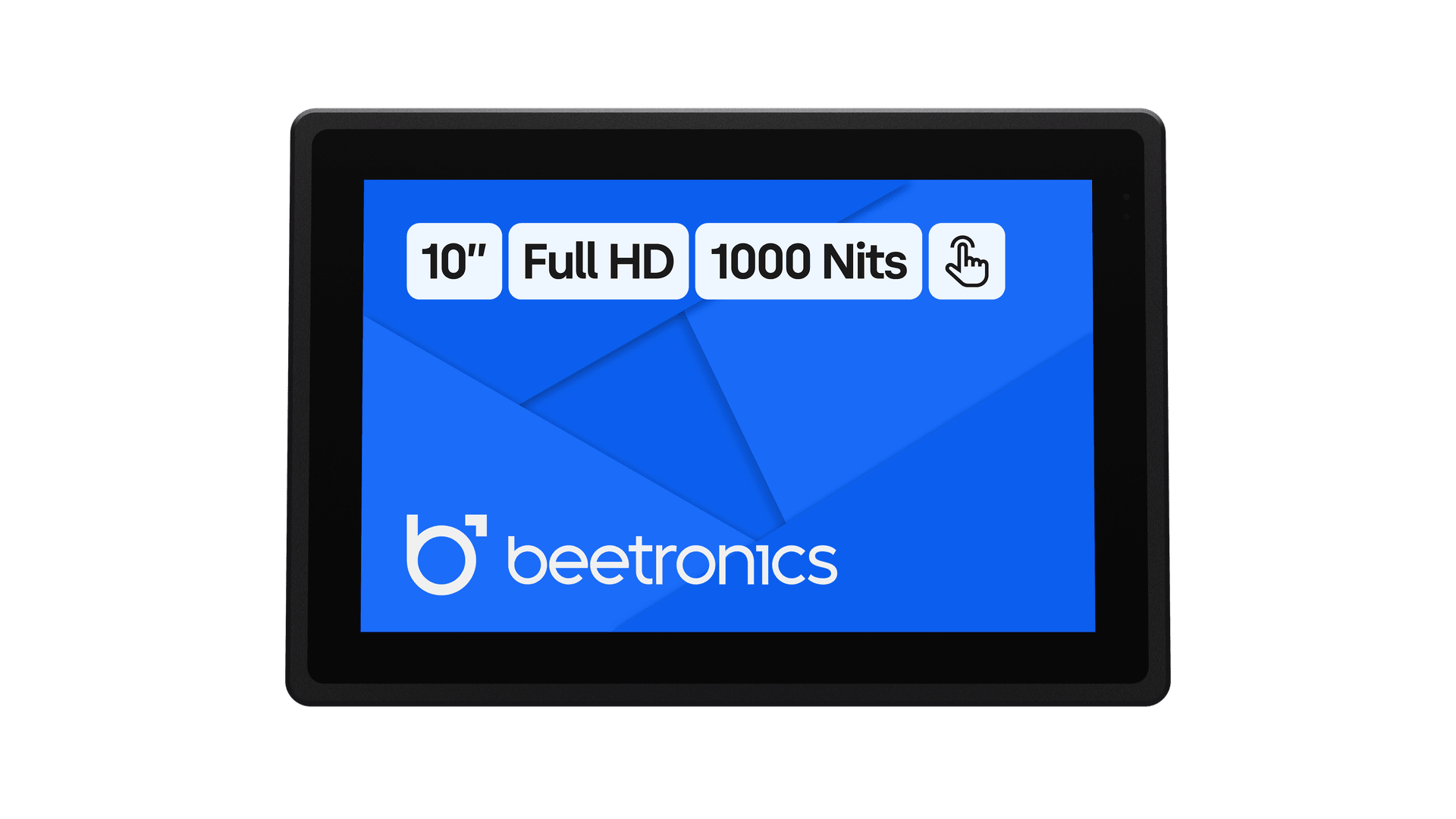

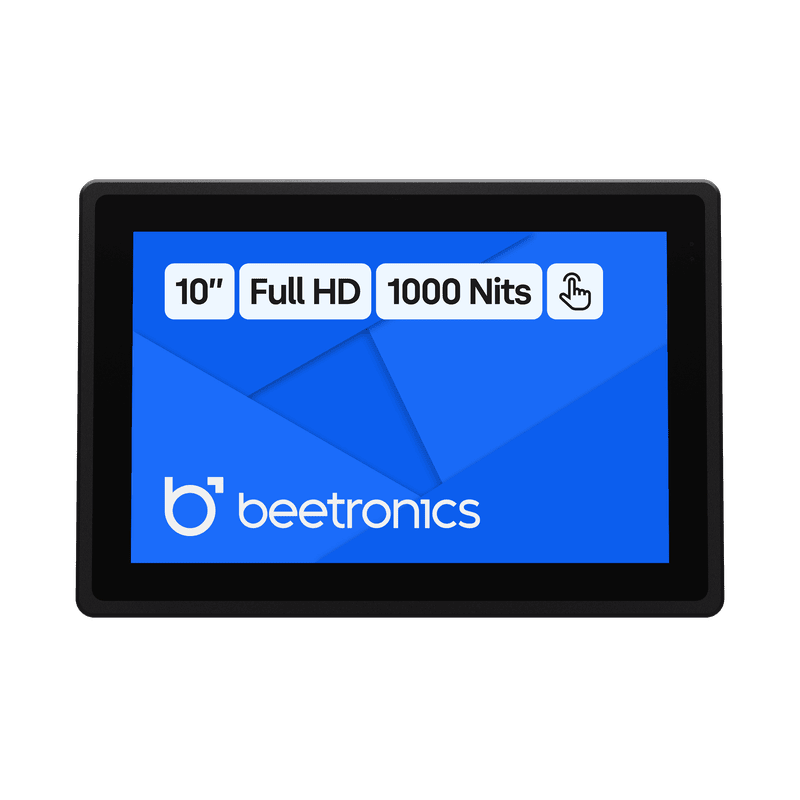

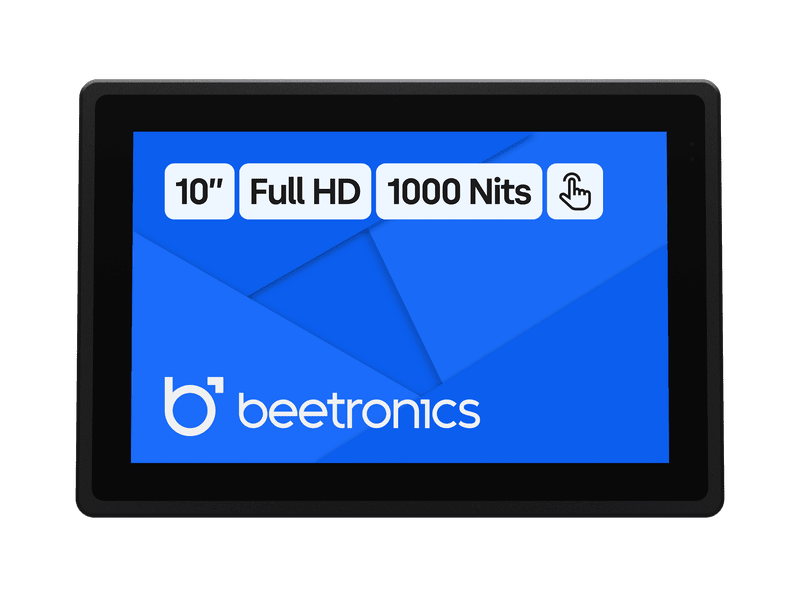

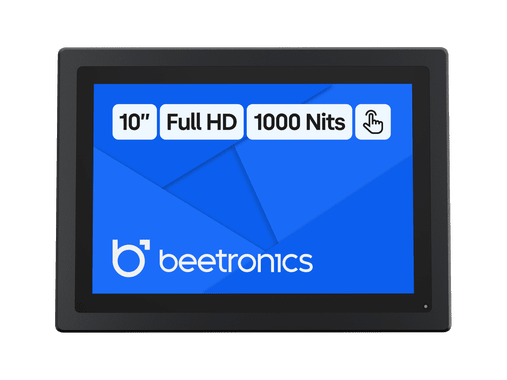

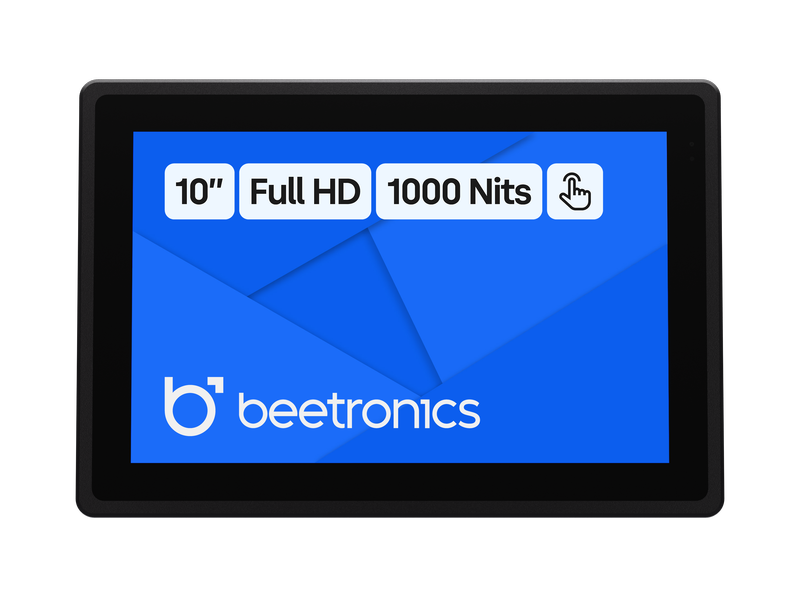

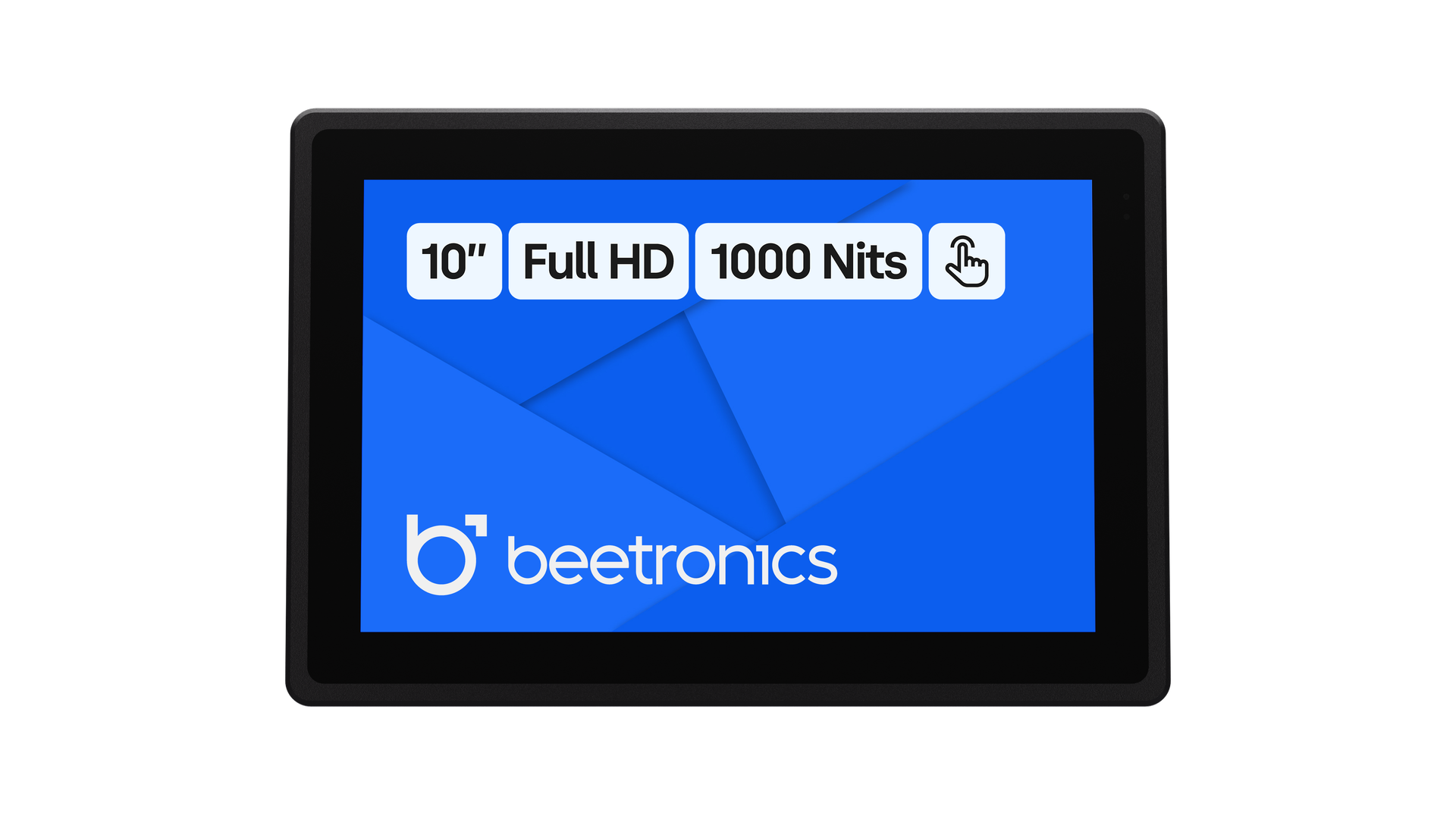

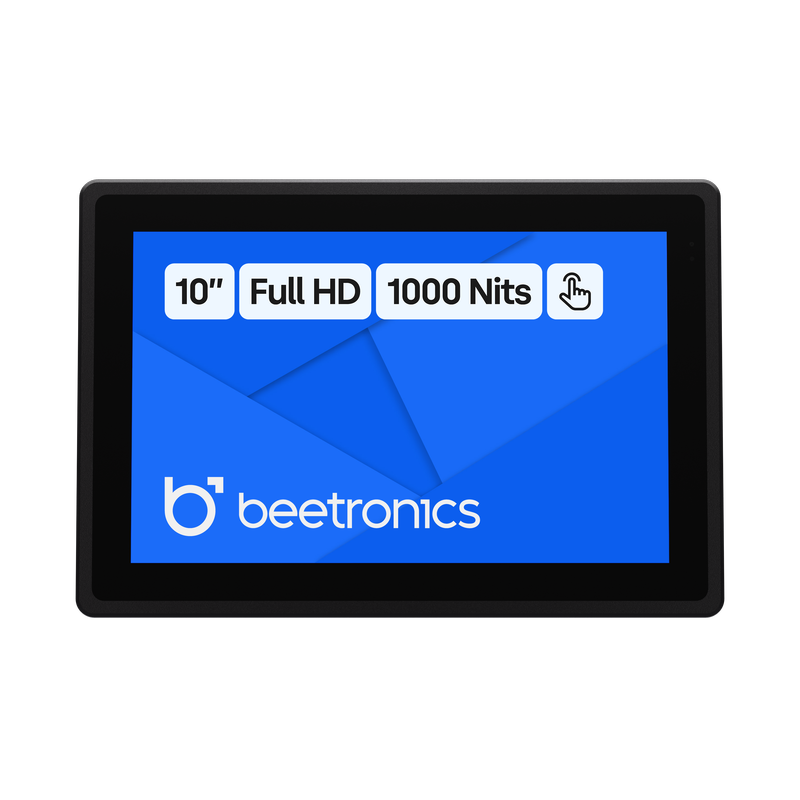

10 Inch Touchscreen Metal
(High Brightness)

Model: 10HB9M/U1
100+ units in stock
Features
  1. High-brightness Full-HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, panel mount

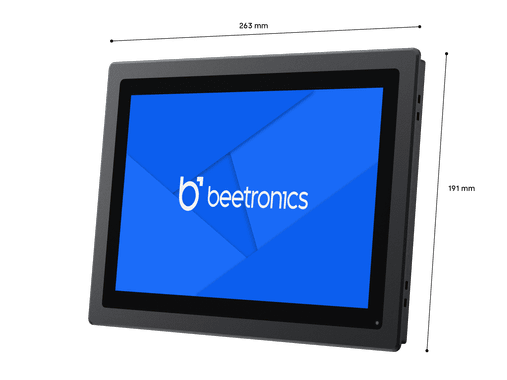

  4. External dimensions: 260 x 178 x 37 mm

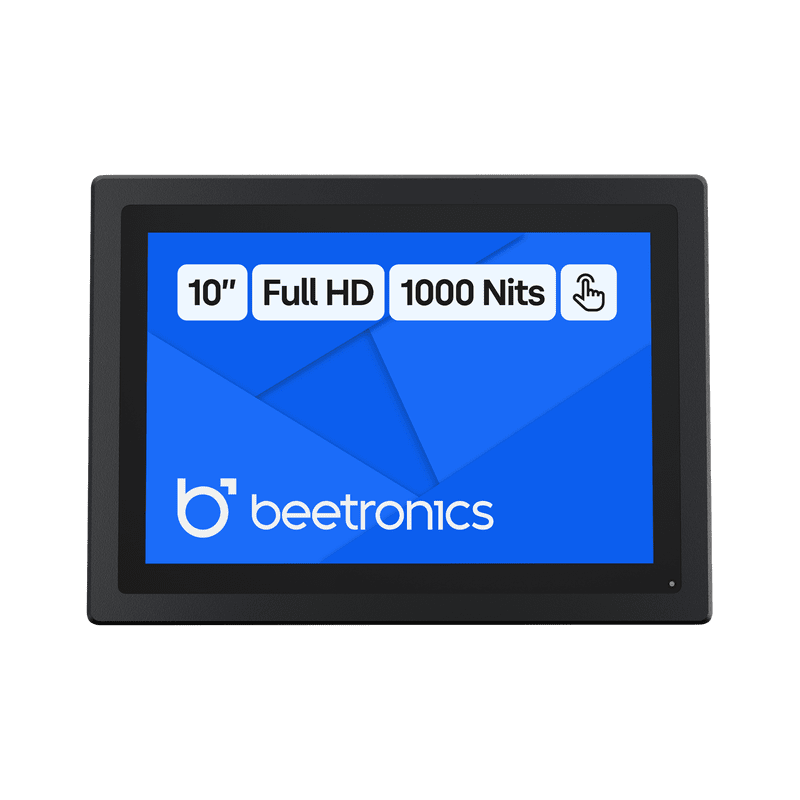

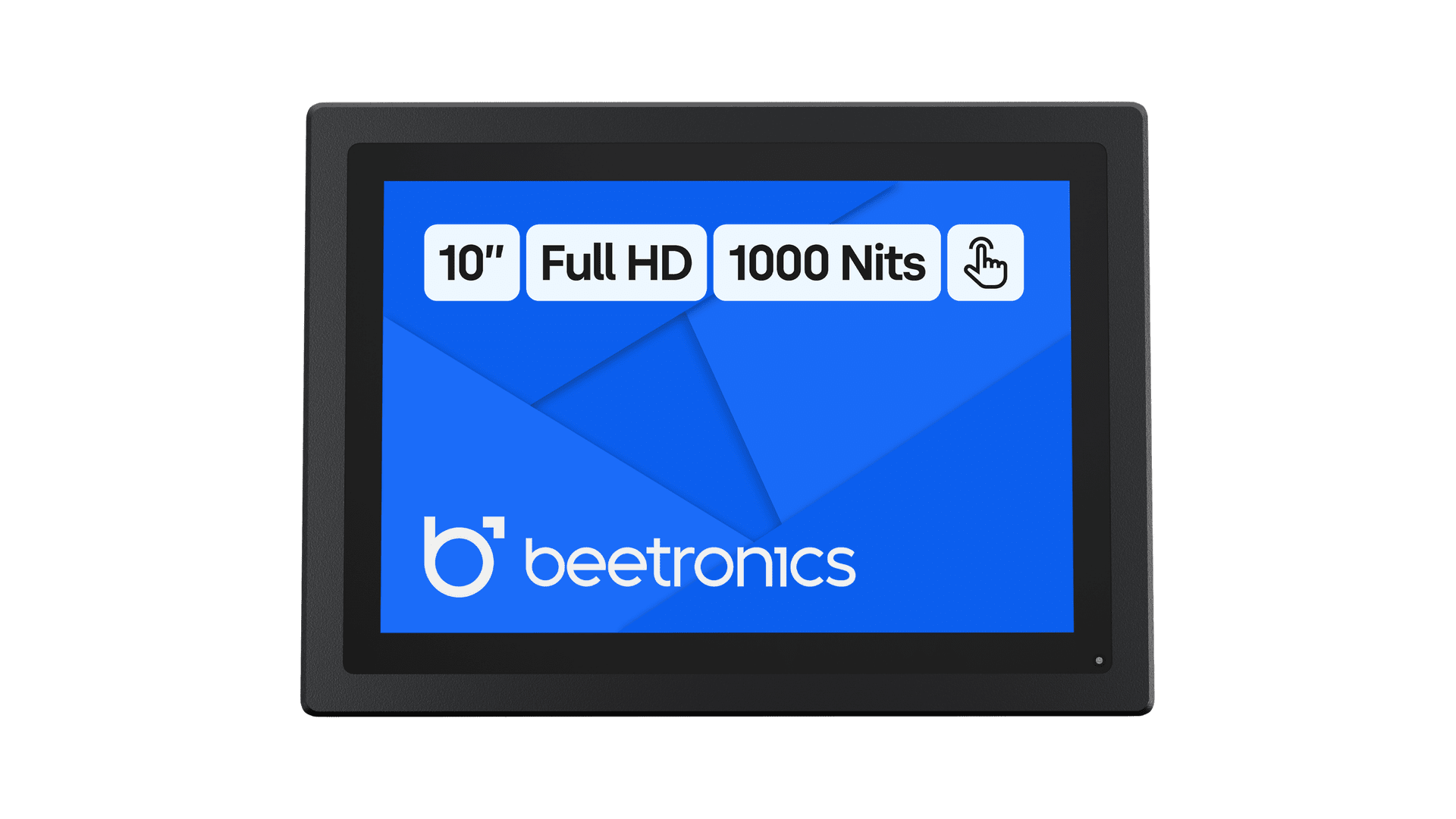

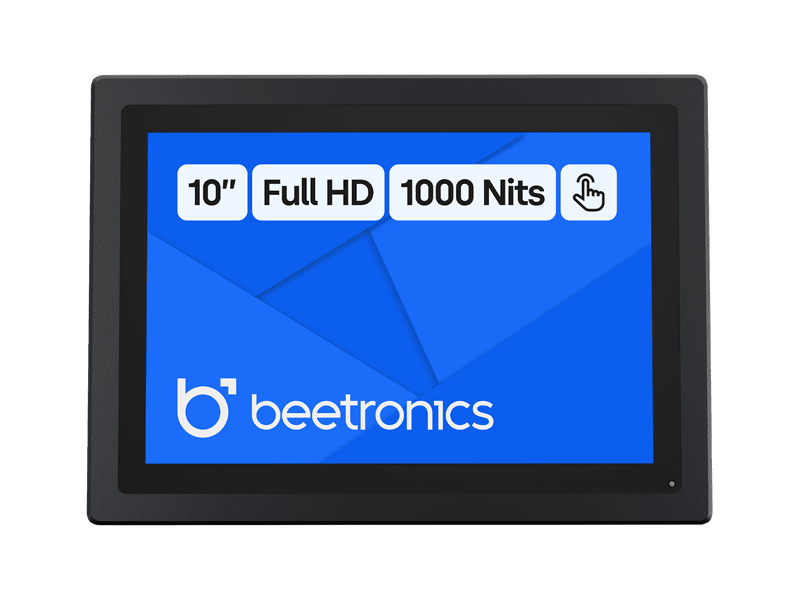

This 10-inch touchscreen monitor features a matte, Full HD panel with a high brightness of 1000 nits. The display is designed for both indoor and outdoor use and guarantees excellent visibility in any environment. Thanks to its sturdy and compact metal casing, the 10HB9M/U1 can be seamlessly integrated into any application. The touchscreen is suitable for professional, commercial, and industrial use.

€ 599,00
€ 736,77 VAT Incl.
Order by 3:00 pm for delivery on Wednesday.
Long-term availability Consistently available for years to come.
Free shipping & returns No shipping costs and free 30-day returns.
5,000+ reviews, rated 4.8/5 Trusted by industry leaders worldwide.
Product highlights
10 Inch Touchscreen Metal (High Brightness)

Sunlight-readable Full HD multi-touch panel

The 10-inch touchscreen monitor is equipped with a Full HD panel that provides a sharp image with true-to-life colors. The touchscreen has a matte front panel with a high brightness of 1000 nits and is optically bonded. This ensures an easily readable image without reflections even in the brightest environments.

The screen brightness can also be automatically dimmed based on ambient light via the integrated light sensor. The brightness can also be manually adjusted using the included remote control or an optional dimmer knob.

10 Inch Touchscreen Metal (High Brightness)

Compatible with Windows, macOS, ChromeOS and Linux

The 10-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

10 Inch Touchscreen Metal (High Brightness)

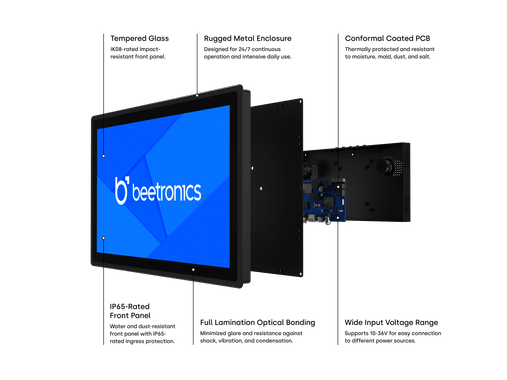

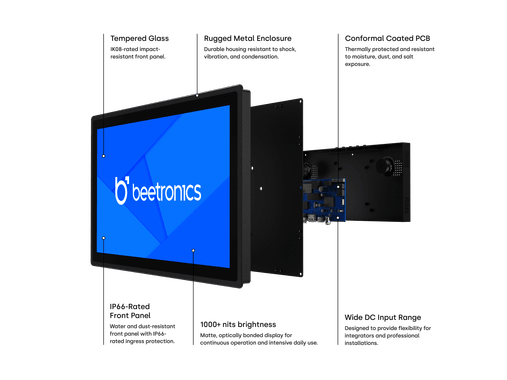

Designed for professional use

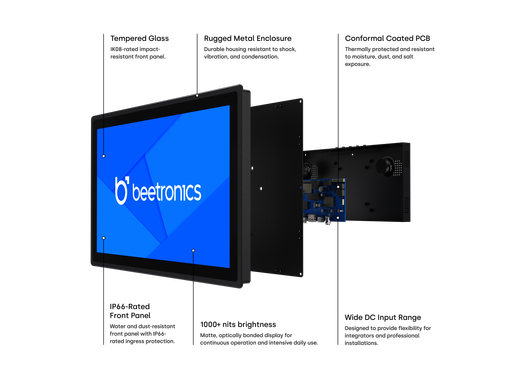

The 10HB9M/U1 is designed for professional applications and is suitable for continuous use. The display is produced using high-quality industrial components and features a robust metal casing with a sturdy front panel.

The display supports a wide input voltage of 10-36V DC, allowing it to be plugged direclly into an outlet or the popular 12V or 24V options.

Mounting options

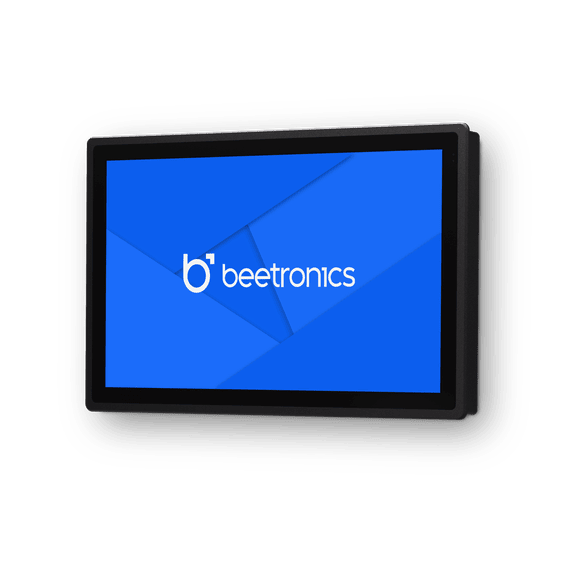

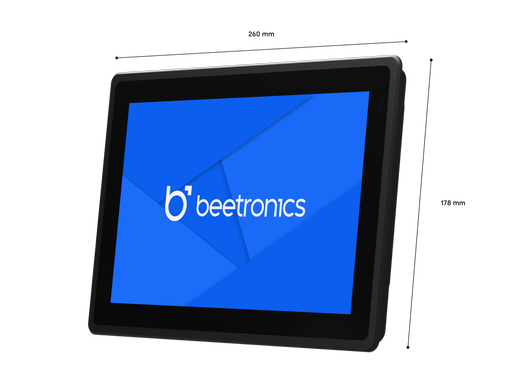

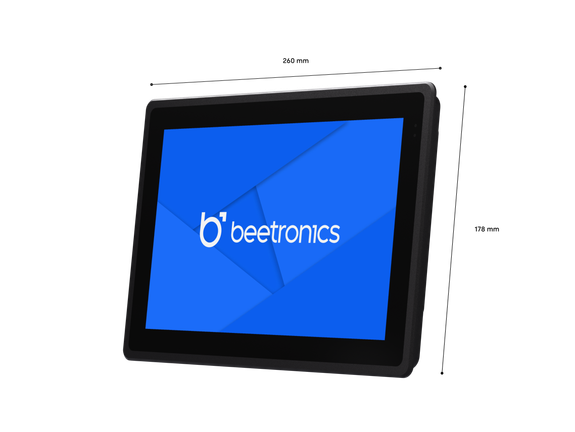

Panel mount

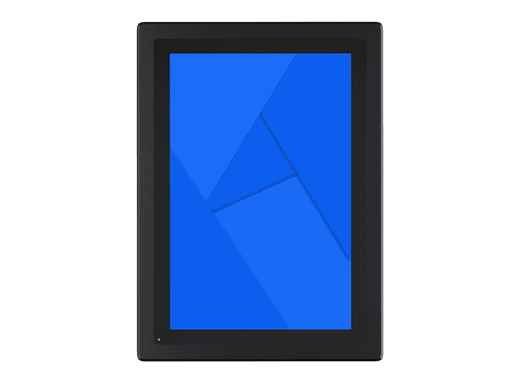

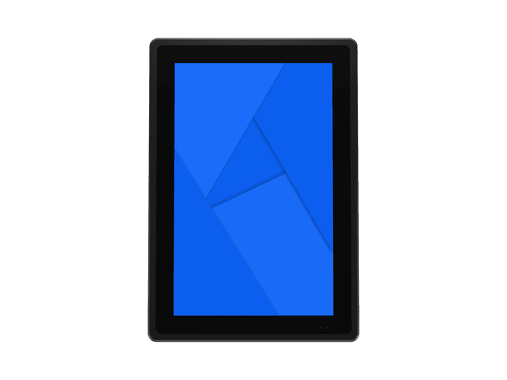

The monitor is designed for panel mounting, delivering a robust, water-resistant, and dust-proof solution. With its sleek, symmetrical bezel and integrated rubber sealing ring, it ensures a seamless, professional finish. This maintenance-free touchscreen requires no ventilation and is built for both indoor and outdoor environments. It supports mounting in both landscape and portrait orientations, offering flexible installation options to suit a variety of settings.

Wall mount

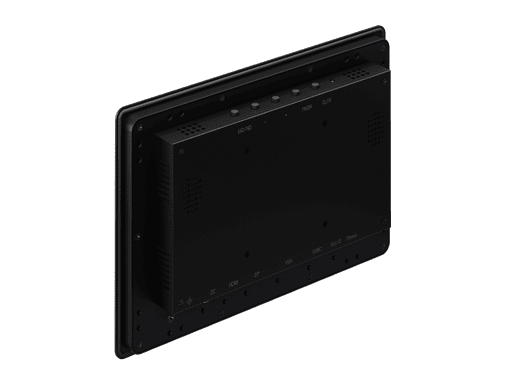

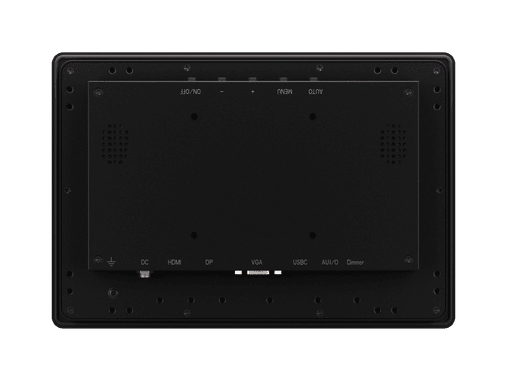

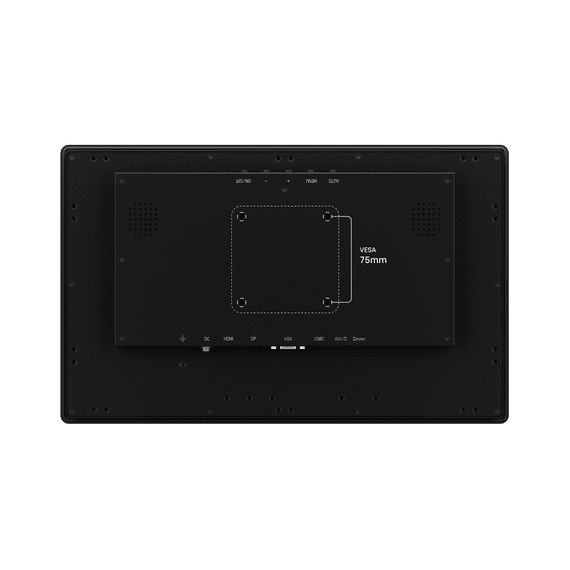

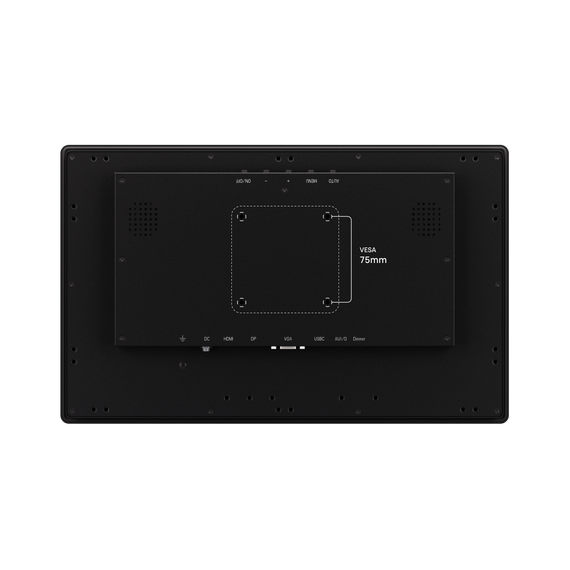

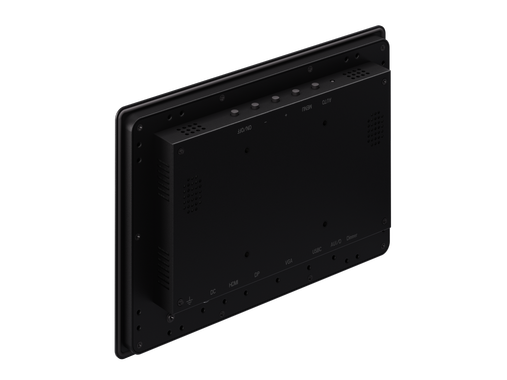

The touchscreen includes a universal 75mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Stand

The touchscreen is equipped with a universal 75mm VESA mounting pattern on the back of the housing. This allows the touchscreen to be mounted on our optional VDK5 desk stand, as well as on universal stands and mounting brackets. It can be mounted in both landscape and portrait orientation.

Specifications
General
Manufacturer
Beetronics
Product line
High brightness series
Product name
10 Inch Touchscreen Metal (High Brightness)
Item number
10HB9M/U1
Product type
Touchscreen
Warranty
2 years
Datasheet
Download PDF
User manual
Download PDF
Quickstart
Download PDF
Display architecture
Aspect ratio
16:10 (16:9, 4:3 adjustable)
Native resolution
1920 x 1200
Pixels per inch
224 PPI
Diagonal size
10.1 inches (258 mm)
Surface
Tempered glass, matte finish
Supported orientation
Landscape, portrait, face-up
Display performance
Maximum brightness
1000 nits (typical)
Minimum brightness
1 nit
Contrast
900:1
Viewing angle
170° horizontal, 170° vertical
Supported resolutions
1920 x 1200 (max), 640 x 480 (min)
Touch technology
Touch technology
Capacitive (PCAP), optically bonded
Touch points
10-point (multi-touch)
Touch interface
USB HID-compliant
Touch control
Stylus, hand, glove
Gesture support
Tap, swipe, scroll, pinch-to-zoom (dependent on host system OS and application)
Touch drivers
Download touchscreen driver
Operational features
Audio
Dual integrated speakers
Key-lock
The control buttons can be blocked.
Auto-on
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable backlight brightness via remote control, optional dimmer, or an integrated ambient light sensor for automatic brightness adjustment. Dimming thresholds can be configured.
Software & compatibility
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Tahoe, Sequoia, Sonoma
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Samsung DeX
All Samsung DeX versions

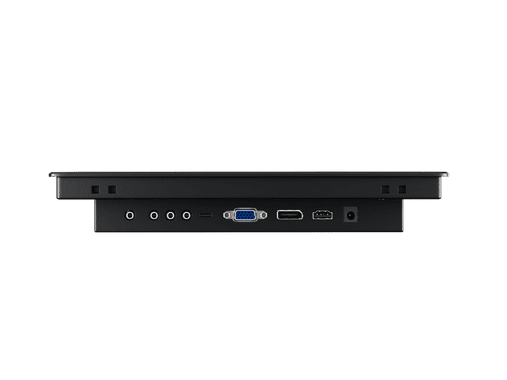

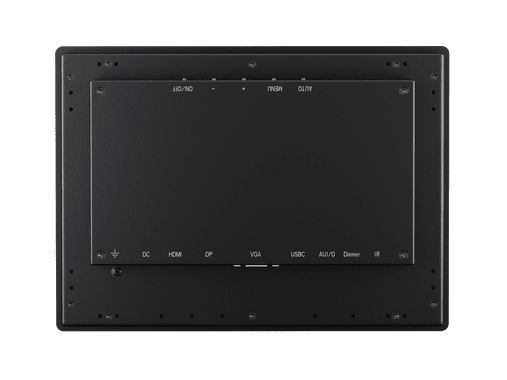

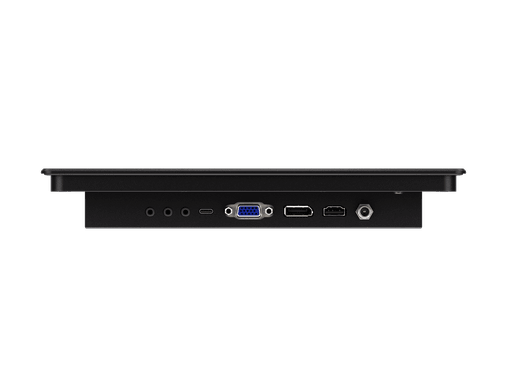

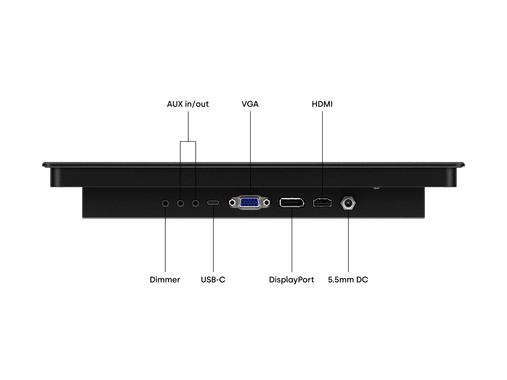

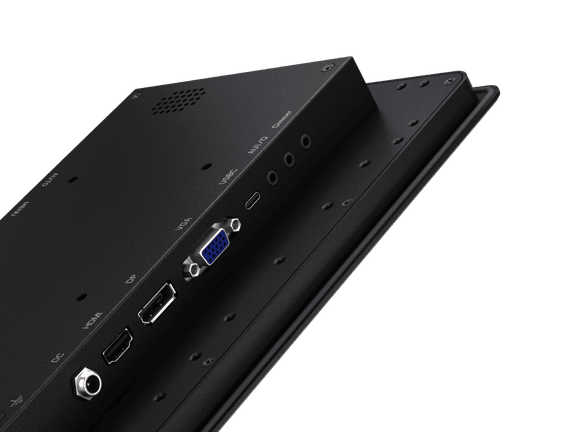

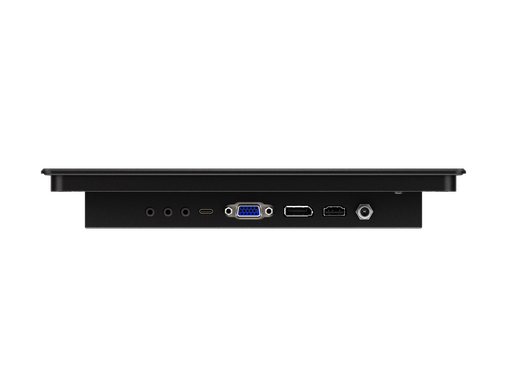

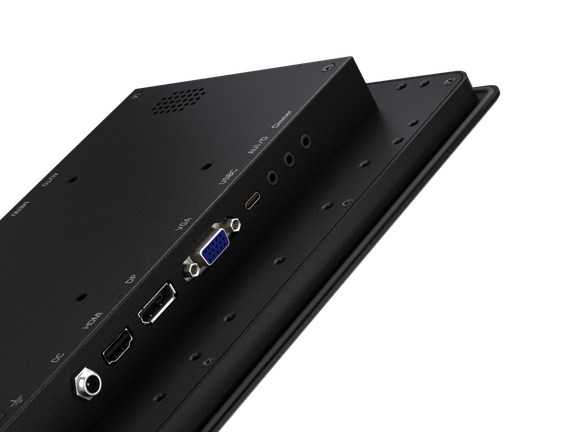

Connectivity
HDMI
1x
DisplayPort
1x
VGA
1x
USB-C
1x Video, audio, touch
USB-A

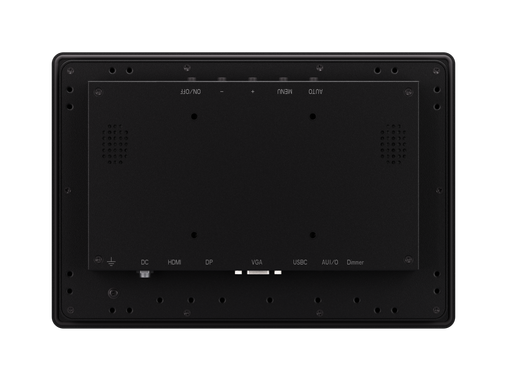

Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX input (3.5mm)
1x
AUX output (3.5 mm)
1x

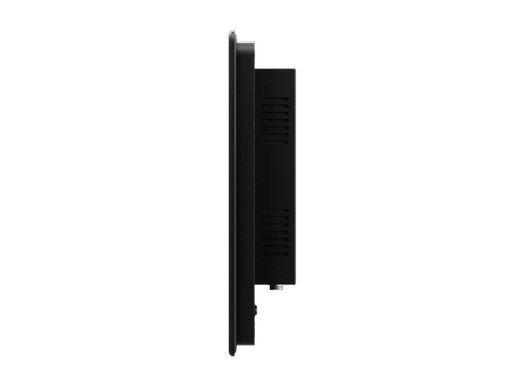

Mechanical

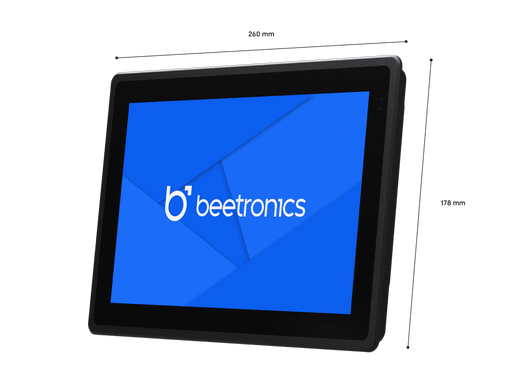

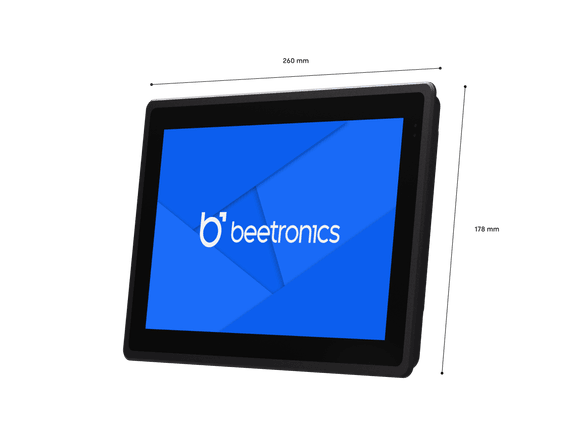

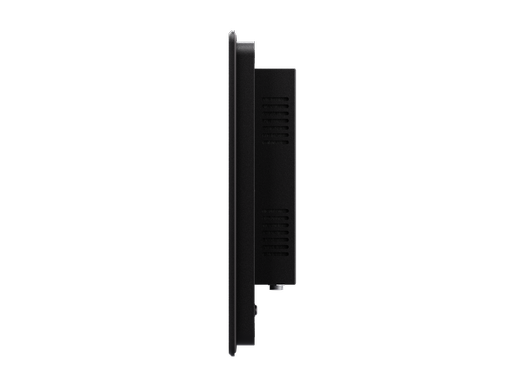

Dimensions (without stand)
260 x 178 x 37 mm
Active area
219 x 137 mm
Weight
1480 grams
Colour
Black
Technical drawing (2D)
Download PDF
Technical drawing (3D)
Download CAD/STP
Mounting
Wall mount
VESA 75x75mm
Flush mount
Panel mount accessories included
Supported mounting orientations
Landscape, portrait, face-up
Power
Input voltage
DC 10-36V
Consumption
11 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Operating temperature
-20°C to +70°C (-4°F to 158°F)
Storage temperature
-30°C to +80°C (-22°F to 176°F)
Operating humidity
10% - 90% non-condensing
Ingress protection (IP)
IP66 when panel mounted
Impact protection (IK)
IK08
MTBF
50K
Compliance & regulations
Regional standards
CE, UKCA, FCC (Part 15), ISED (ICES-003), CCC
Environmental standards
RoHS, REACH, WEEE, California Proposition 65, Conflict minerals (3TG; supplier declaration-based)
Industry standards
Maritime: IEC 60945, DNV-CG-0339 (requires BEE-PSU1-MAR); Railway: EN 50155, EN 45545-2; Automotive: e-Mark, UN ECE R10, SAE J1113, SAE J1455; Medical: EN 60601-1, EN 60601-1-2 (requires BEE-PSU1-MED)
Compliance scope
Standards and certifications apply to the tested product configuration using the specified power supply. Final system-level compliance remains the responsibility of the party responsible for system integration.

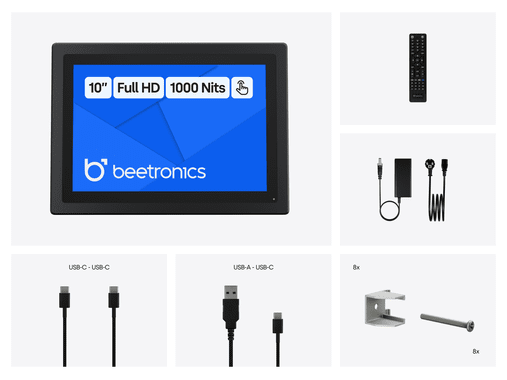

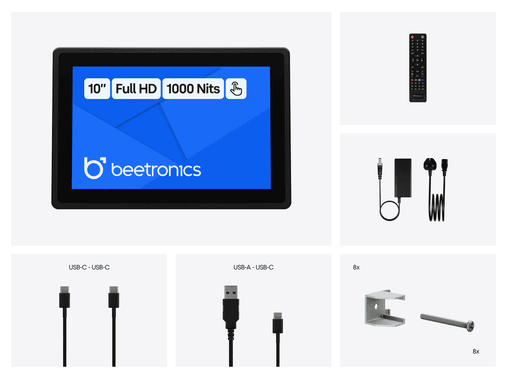

Package content
Includes
Touchscreen, USB-C to USB-C cable, USB-C to USB-A cable, remote control, mounting clamps (8x), mounting strips (8x), screws (8x), rubber seal, power adapter, manual
Compatible accessories
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Touch pen
Compatible with CTS7 capacitive touchscreen stylus
Downloads
Click to download product documentation.
Manual(PDF)
Quickstart(PDF)
2D drawing (PDF)
3D drawing (STP)
Datasheet (PDF)
Touchscreen drivers (DRIVER)
