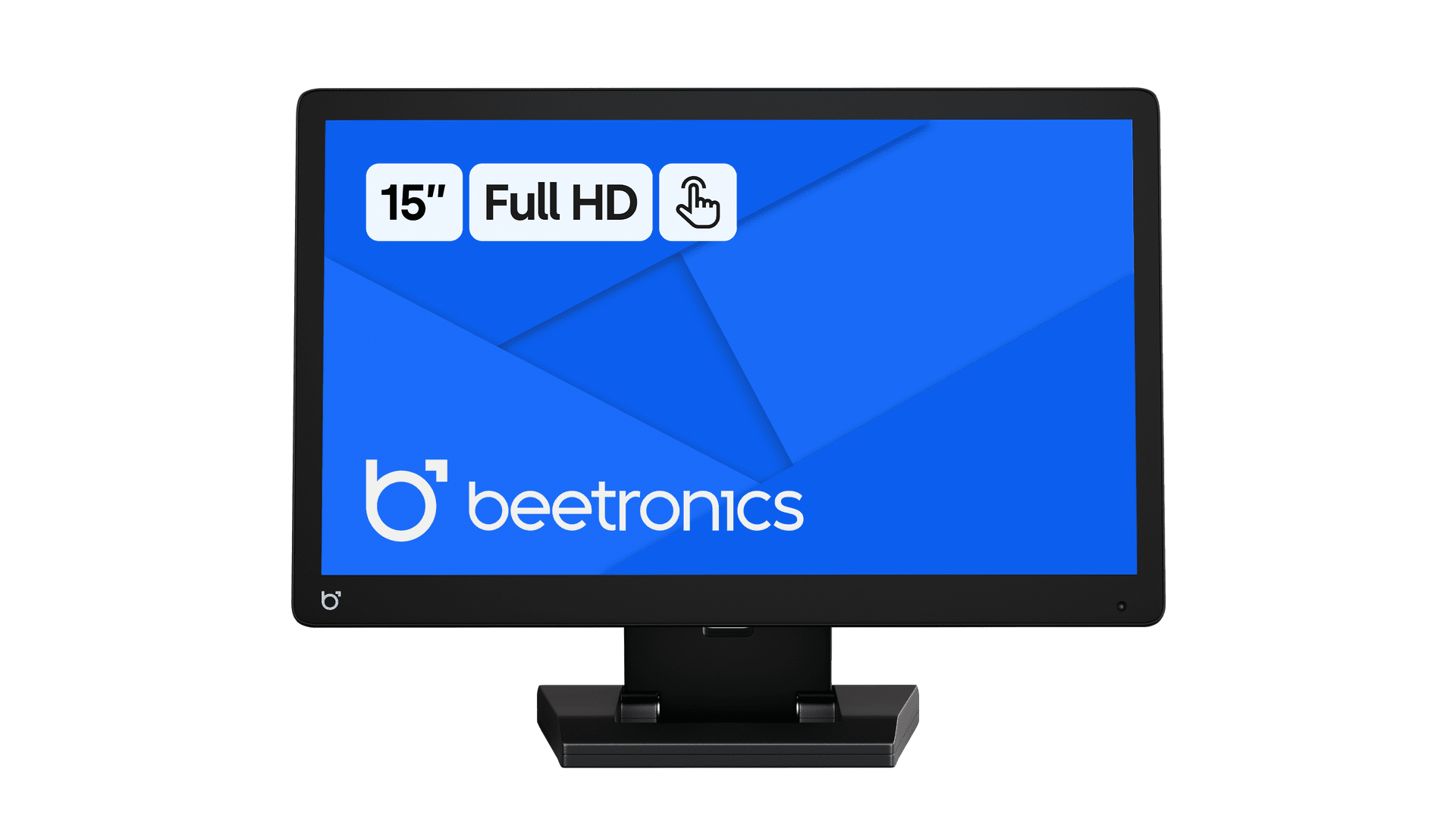

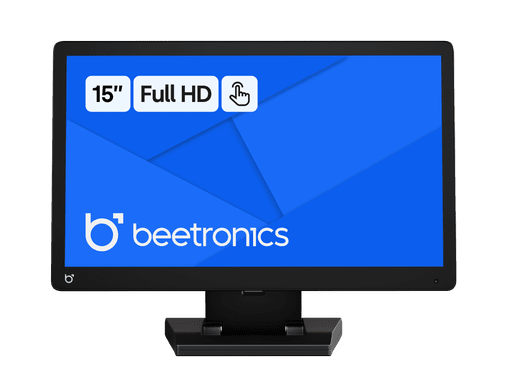

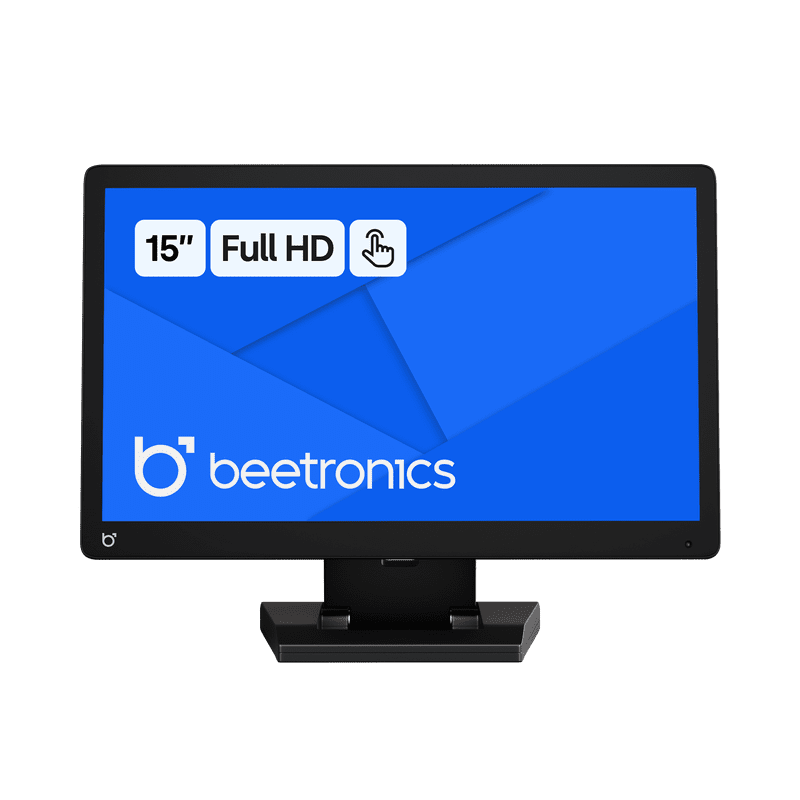

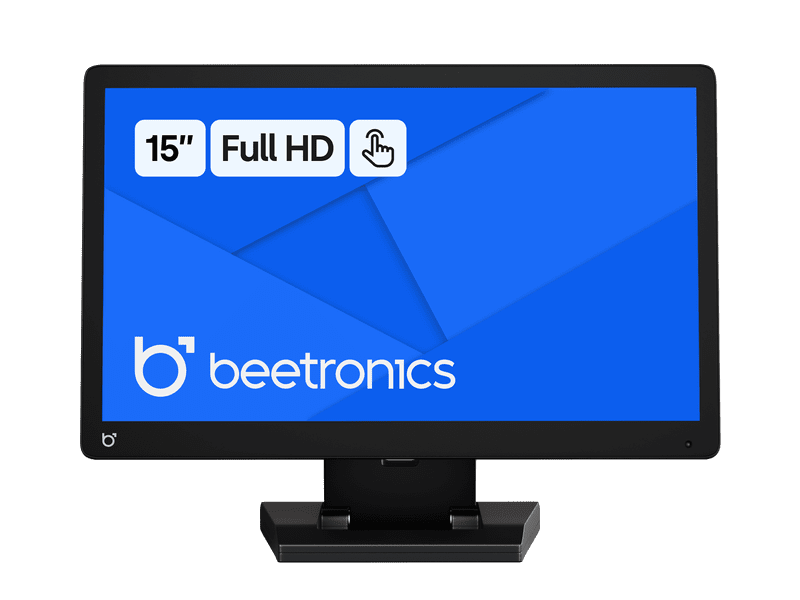

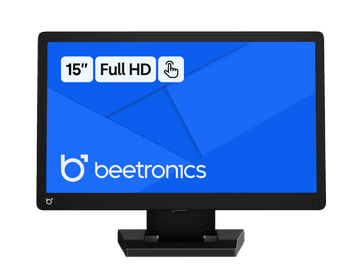

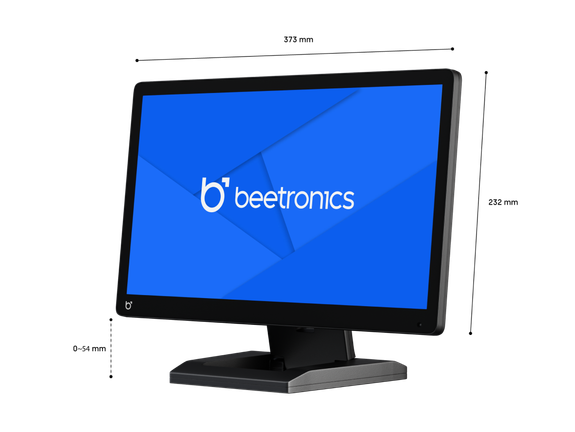

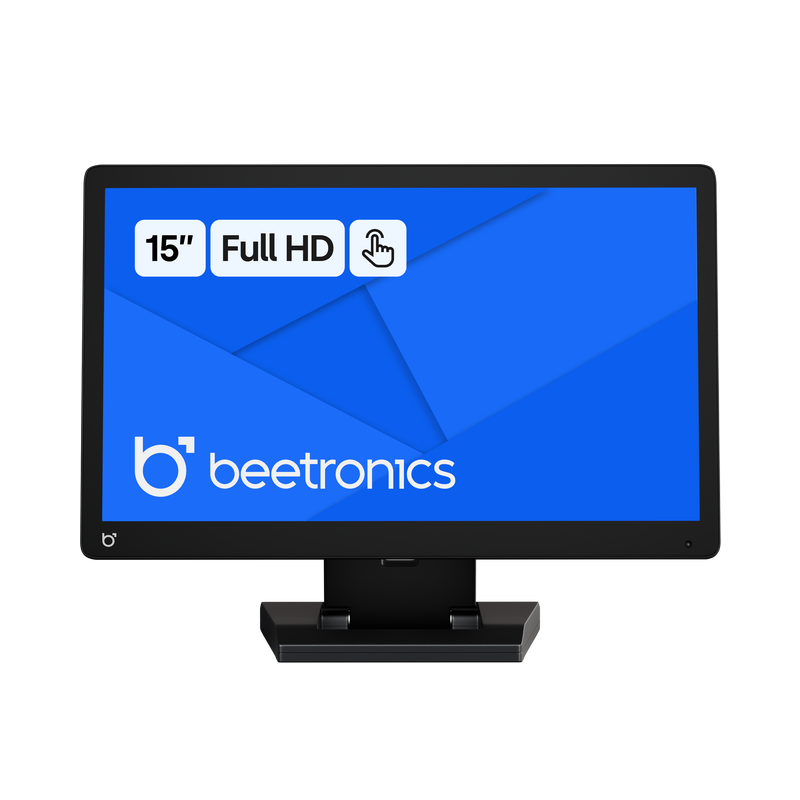

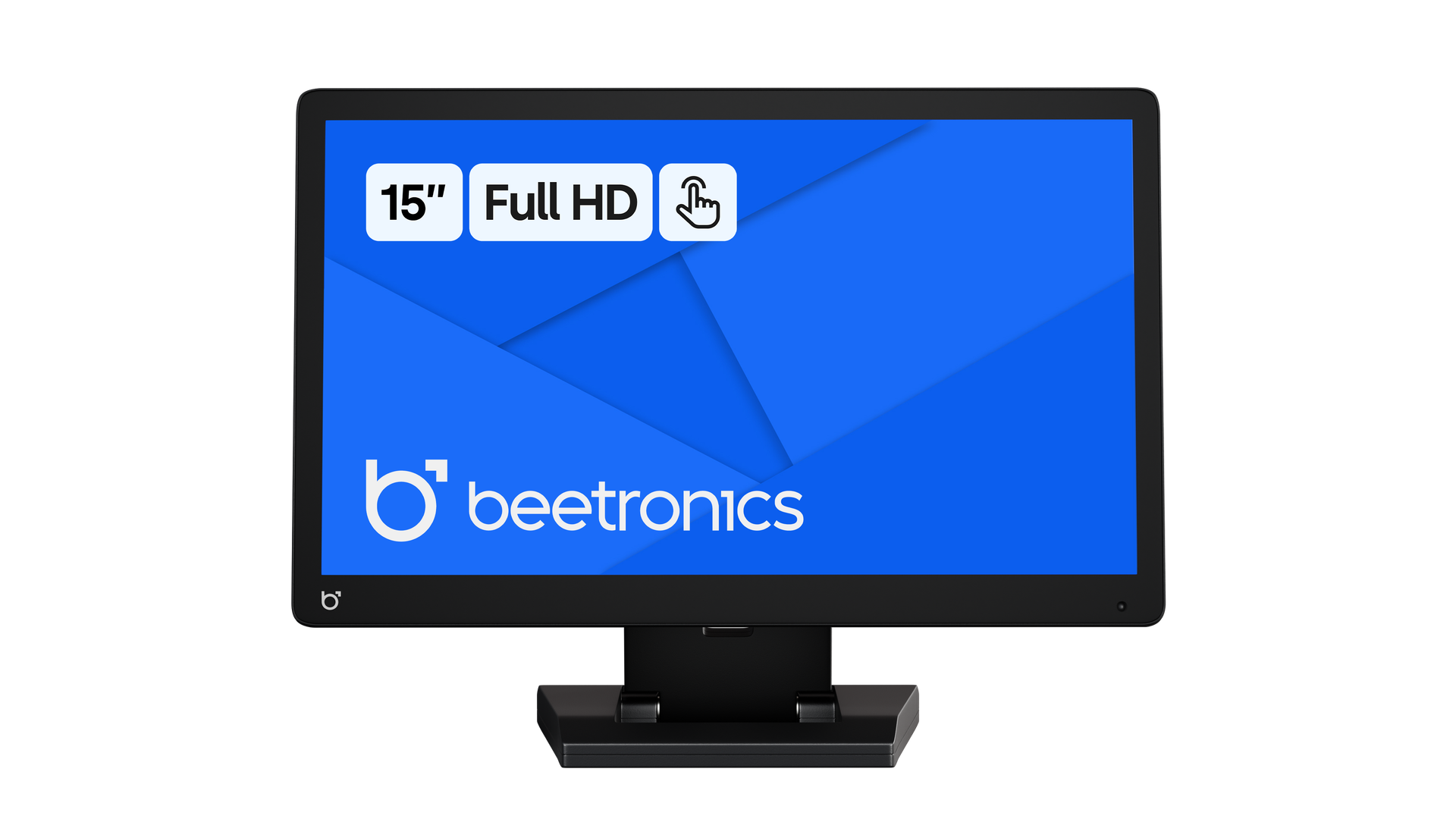

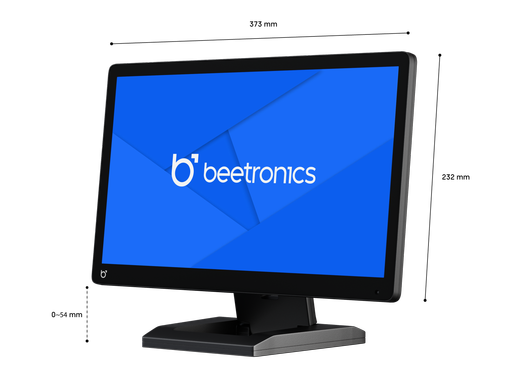

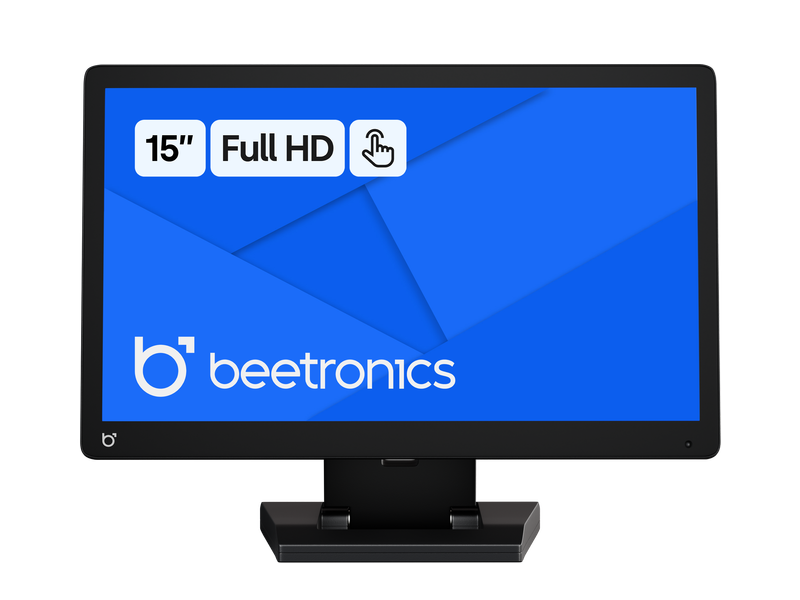

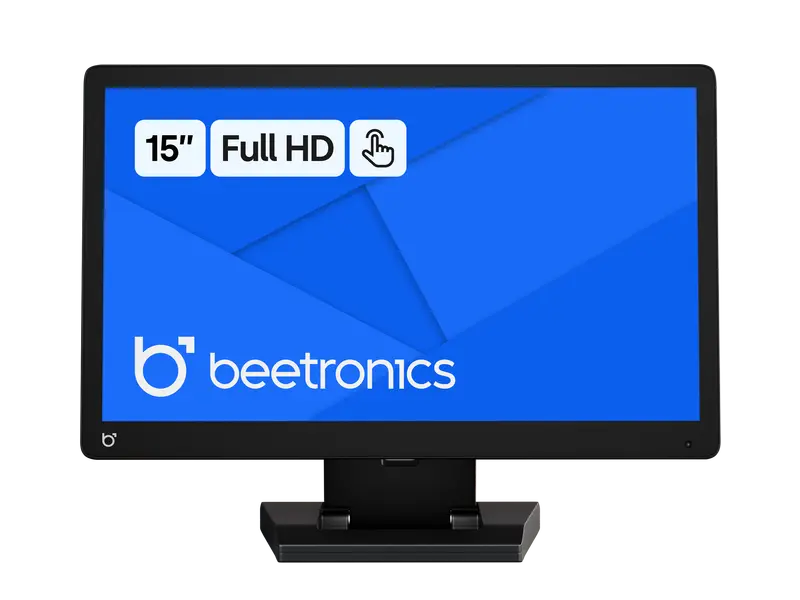

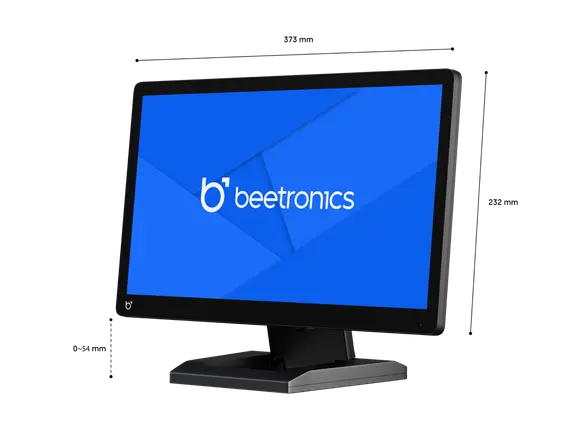

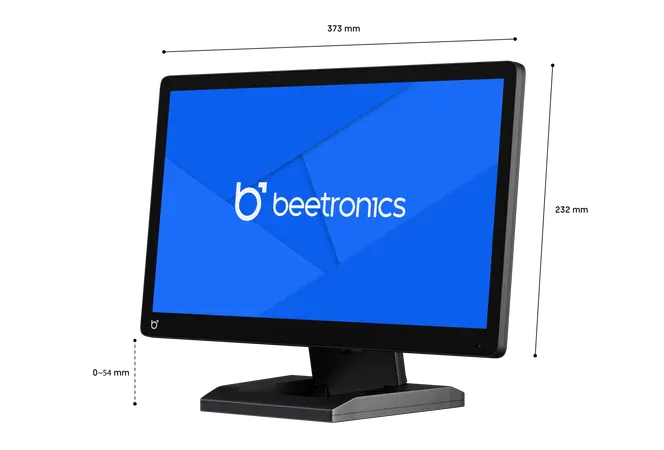

15 Inch Touchscreen

Model: 15TS7
100+ units in stock
Features
  1. Full HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Wall, desktop
  4. External dimensions: 373 x 232 x 33 mm

This Full HD 15 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 15TS7 provides crystal-clear image quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications and suitable for intensive use.

Display type
Monitor
Touchscreen
€ 459,00
€ 564,57 VAT Incl.
Order by 3:00 pm for delivery on Monday.
Long-term availability Consistently available for years to come.
Free shipping & returns No shipping costs and free 30-day returns.
5,000+ reviews, rated 4.8/5 Trusted by industry leaders worldwide.
Product highlights
15 Inch Touchscreen

Full HD multi-touch panel

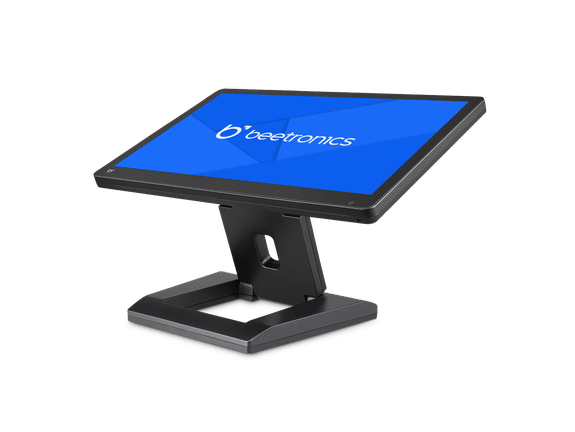

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 15TS7 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

15 Inch Touchscreen

Compatible with Windows, macOS, ChromeOS and Linux

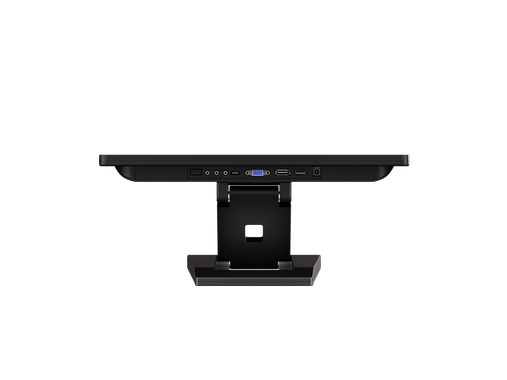

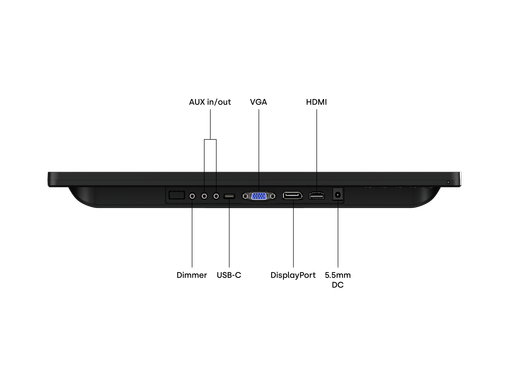

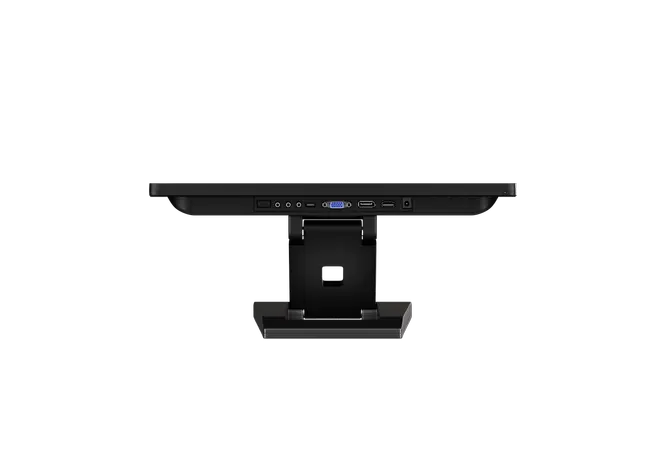

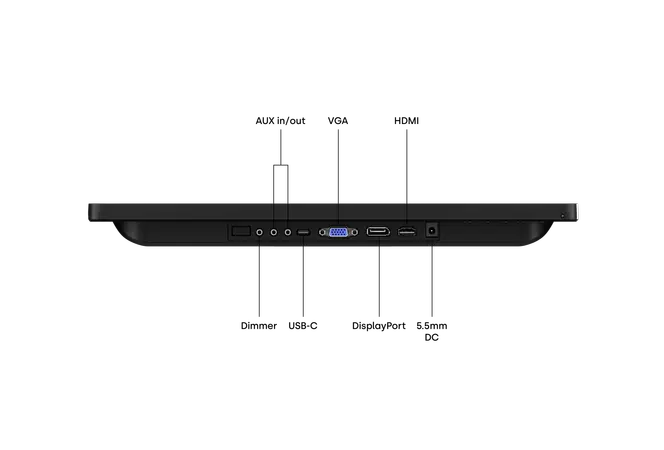

The 15-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.



15 Inch Touchscreen

Designed for professional use

The 15TS7 is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 36 Volts and features a fully dimmable backlight.

Mounting options

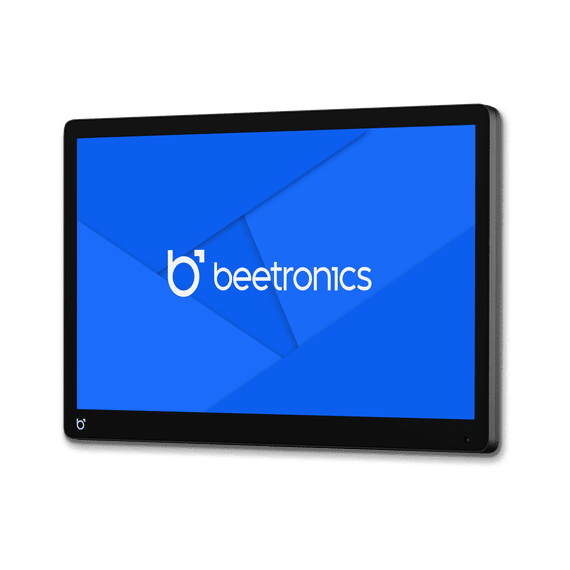

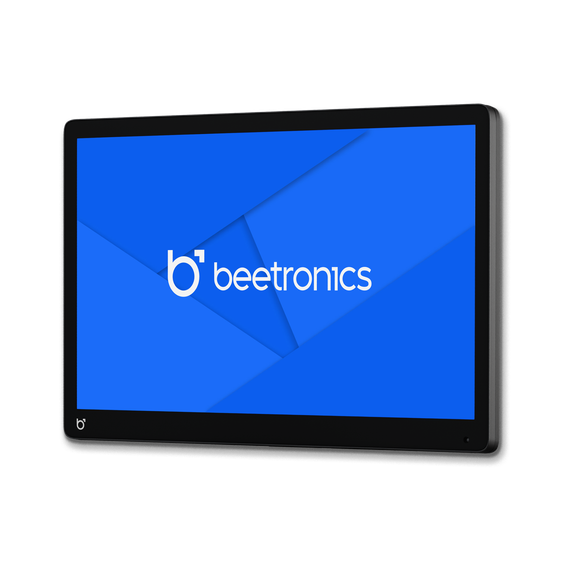

Wall mount

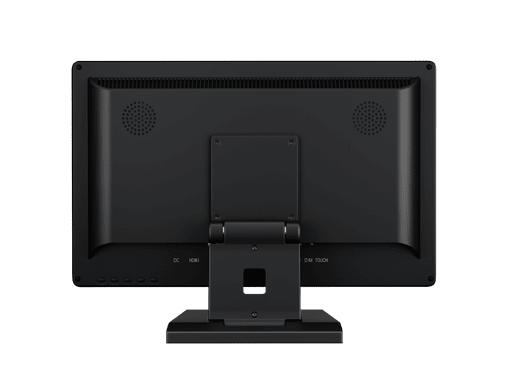

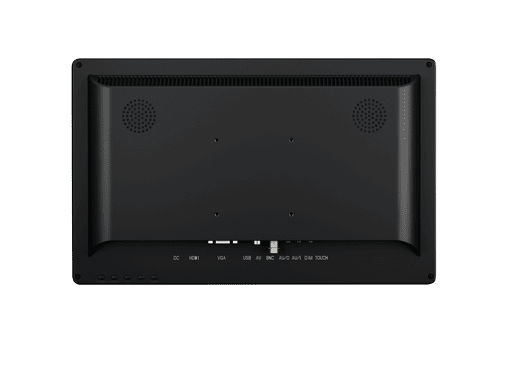

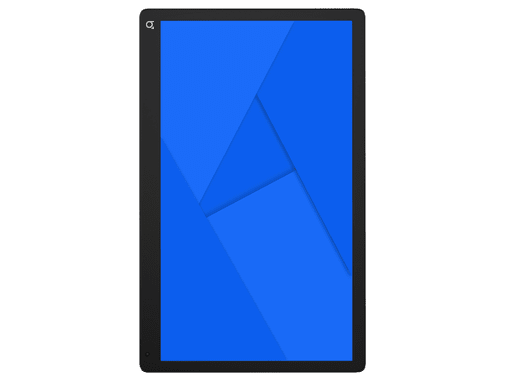

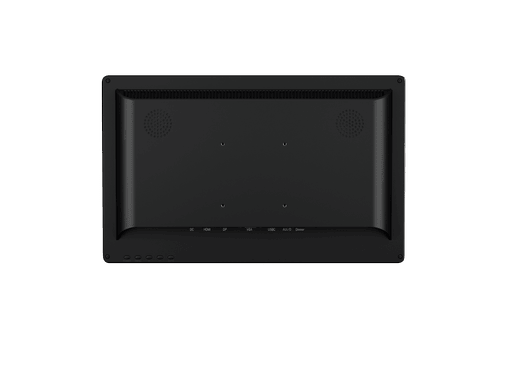

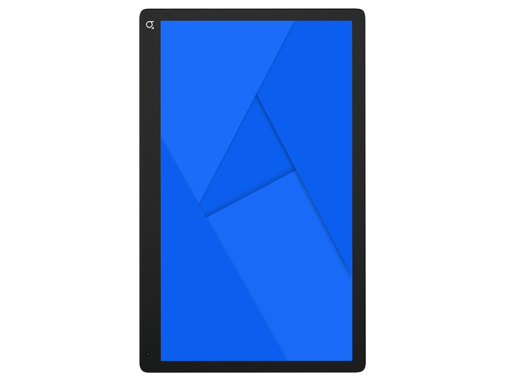

The included stand can be easily removed, giving you access to the universal 75mm VESA mount on the back of the touchscreen. This makes it possible to mount the touchscreen in either landscape or portrait orientation using a wide range of universal mounting options, such as monitor arms, wall brackets, ceiling mounts, or pole brackets.

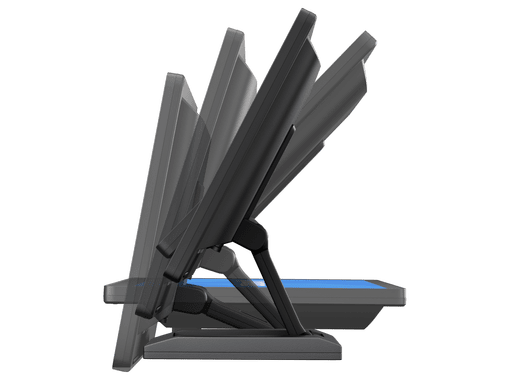

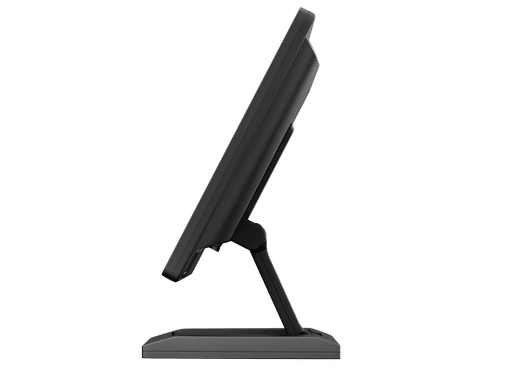

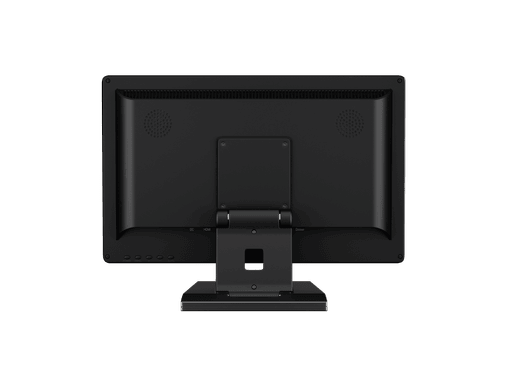

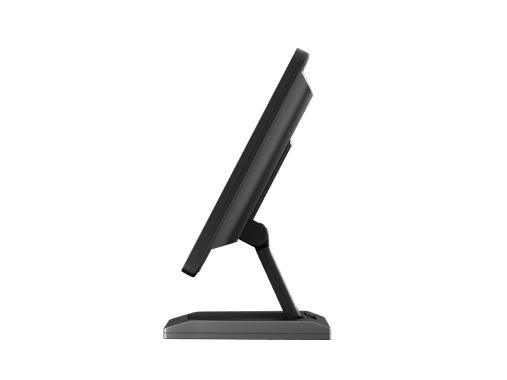

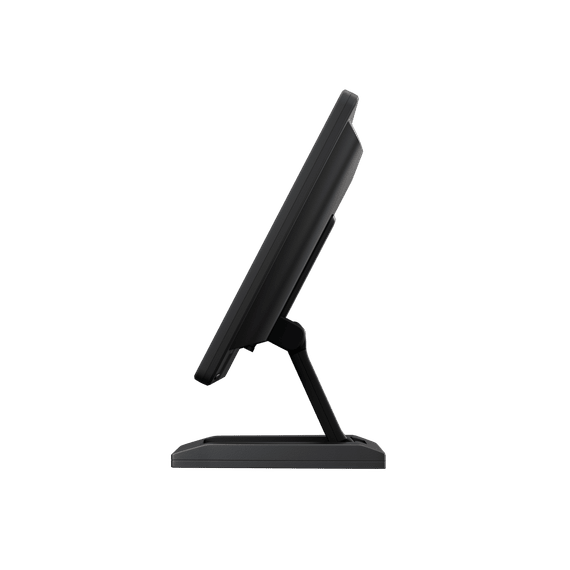

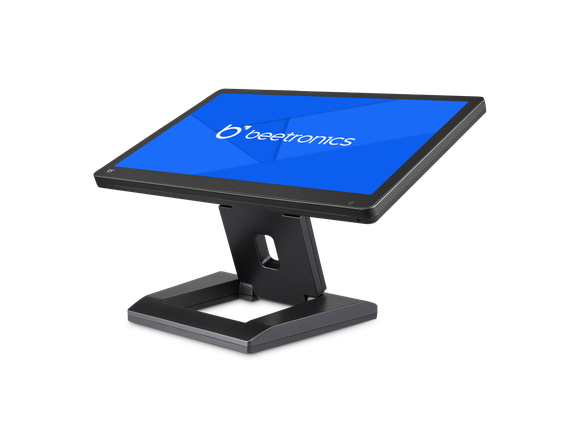

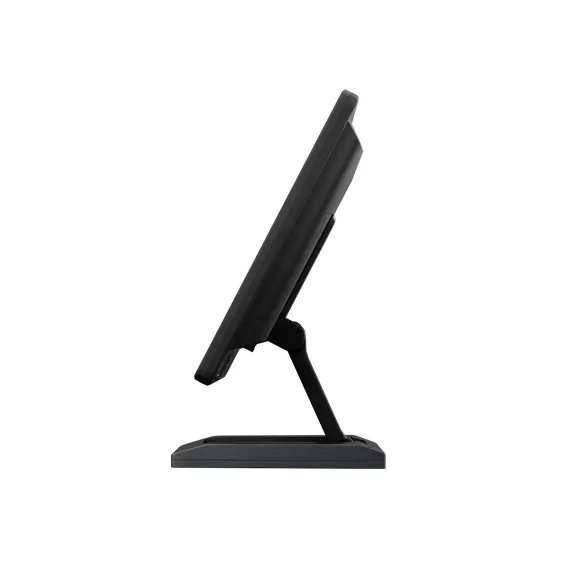

Stand

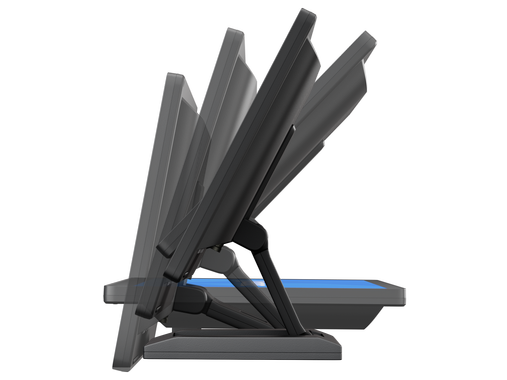

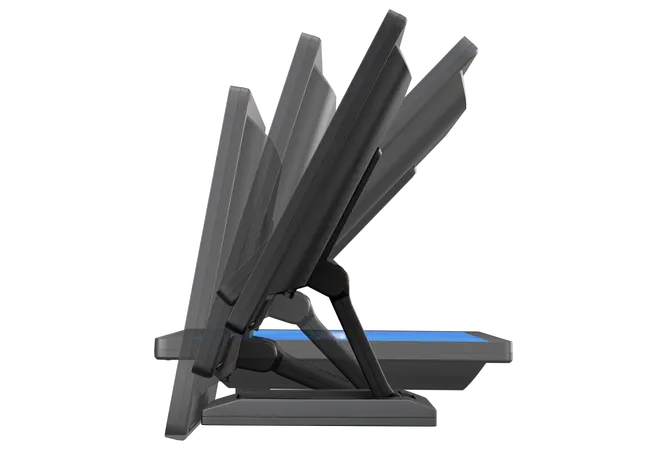

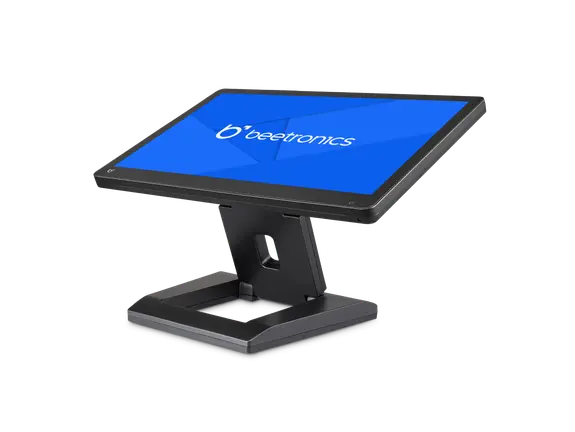

The touchscreen comes with a versatile stand that folds completely flat for easy storage or portability. The base is equipped with pre-drilled screw holes, making it suitable not only for secure attachment but also for wall and ceiling mounting. If needed, the stand can be quickly removed, providing access to the universal 75mm VESA mount. This allows the touchscreen to be installed on a wide range of universal stands or brackets in either landscape or portrait orientation.

Specifications
General
Manufacturer
Beetronics
Product line
Touchscreen series
Product name
15 Inch Touchscreen
Item number
15TS7
Previous model
15TS5
Product type
Touchscreen
Warranty
2 years
Datasheet
Download PDF
User manual
Download PDF
Quickstart
Download PDF
Display architecture
Aspect ratio
16:9 (4:3 adjustable)
Native resolution
1920 x 1080
Pixels per inch
146 PPI
Diagonal size
15.6 inches (395 mm)
Panel type
IPS-LCD
Backlight
LED
Surface
Tempered glass
Supported orientation
Landscape, portrait, face-up
Display performance
Maximum brightness
300 nits (typical)
Minimum brightness
1 nit
Contrast
700:1
Viewing angle
178° horizontal, 178° vertical
Response time
10 ms
Supported resolutions
1920 x 1080 (max), 640 x 480 (min)
Touch technology
Touch technology
Capacitive (PCAP)
Touch points
10-point (multi-touch)
Touch interface
USB HID-compliant
Touch control
Stylus, hand, glove
Gesture support
Tap, swipe, scroll, pinch-to-zoom (dependent on host system OS and application)
Touch drivers
Download touchscreen driver
Operational features
Audio
Dual integrated speakers
Key-lock
The control buttons can be blocked.
Auto-on
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable backlight brightness via remote control or optional dimmer.
Software & compatibility
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Tahoe, Sequoia, Sonoma
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Samsung DeX
All Samsung DeX versions

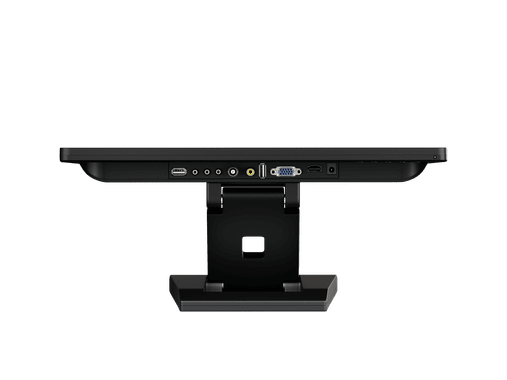

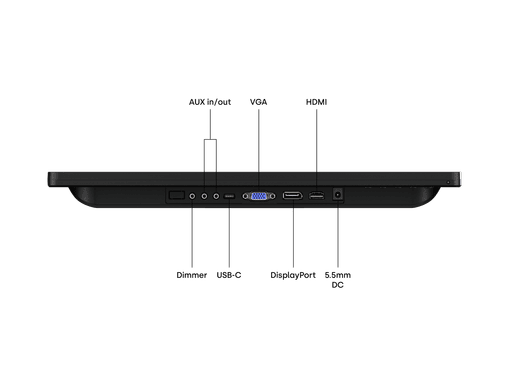

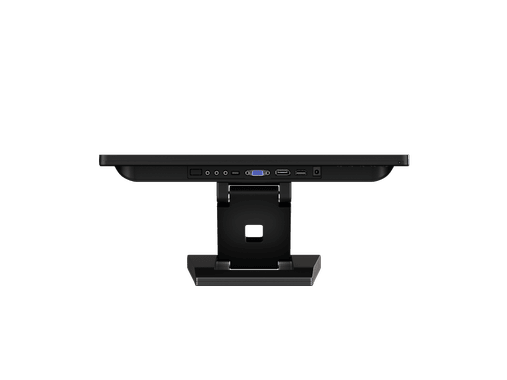

Connectivity
HDMI
1x
DisplayPort
1x
VGA
1x
USB-C
1x Video, audio, touch
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX input (3.5mm)
1x
AUX output (3.5 mm)
1x
Mechanical

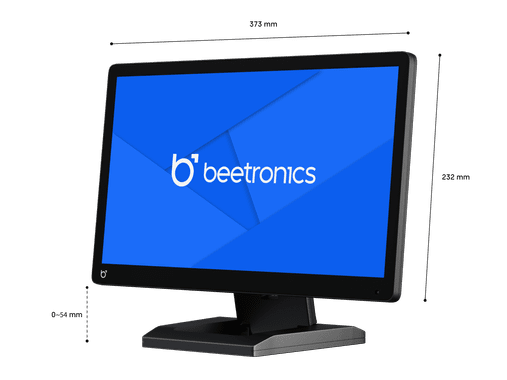

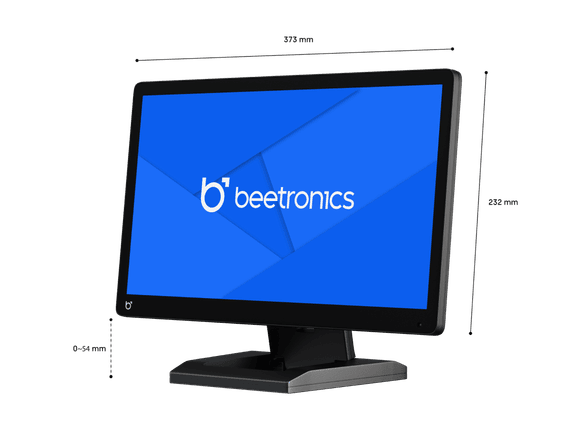

Dimensions (without stand)
373 x 232 x 33 mm
Active area
344 x 194 mm
Weight
1200 grams (1800 grams with stand)
Colour
Black
Technical drawing (2D)
Download PDF
Technical drawing (3D)
Download CAD/STP
Mounting
Wall mount
VESA 75x75mm
Flush mount
Possible, no accessories available
Stand
Adjustable and detachable
Supported mounting orientations
Landscape, portrait, face-up
Power
Input voltage
DC 9-36V
Consumption
11 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-10°C to +60°C (14°F to 140°F)
Storage temperature
-20°C to +70°C (-4°F to 158°F)
Operating humidity
10% - 90% non-condensing
Ingress protection (IP)
IP65 front panel
Impact protection (IK)
IK08
MTBF
50K
Compliance & regulations
Regional standards
CE, UKCA, FCC (Part 15), ISED (ICES-003), CCC
Environmental standards
RoHS, REACH, WEEE, California Proposition 65, Conflict minerals (3TG; supplier declaration-based)
Industry standards
Railway: EN 50155, EN 45545-2; Automotive: e-Mark, UN ECE R10, SAE J1113, SAE J1455
Compliance scope
Standards and certifications apply to the tested product configuration using the specified power supply. Final system-level compliance remains the responsibility of the party responsible for system integration.
Compliance statement
Download PDF

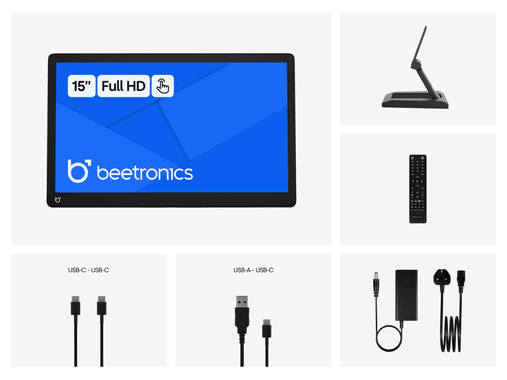

Package content
Includes

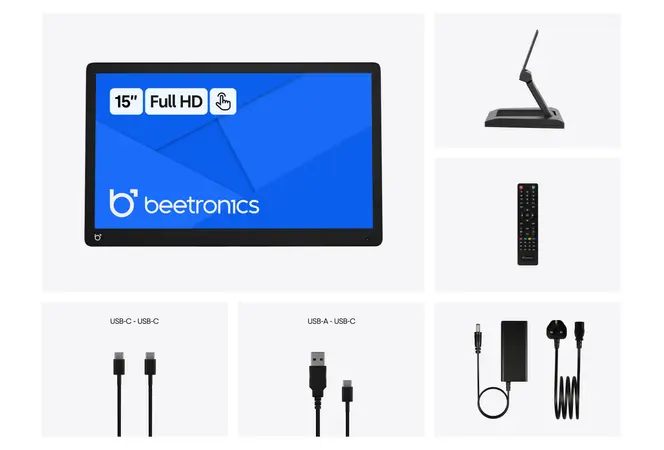

Touchscreen, USB-C to USB-C cable, USB-C to USB-A cable, remote control, power adapter, manual
