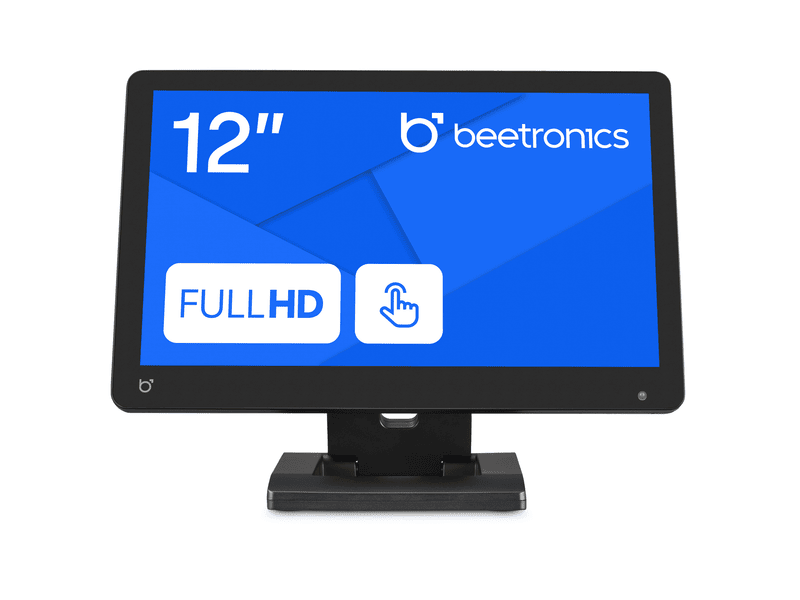

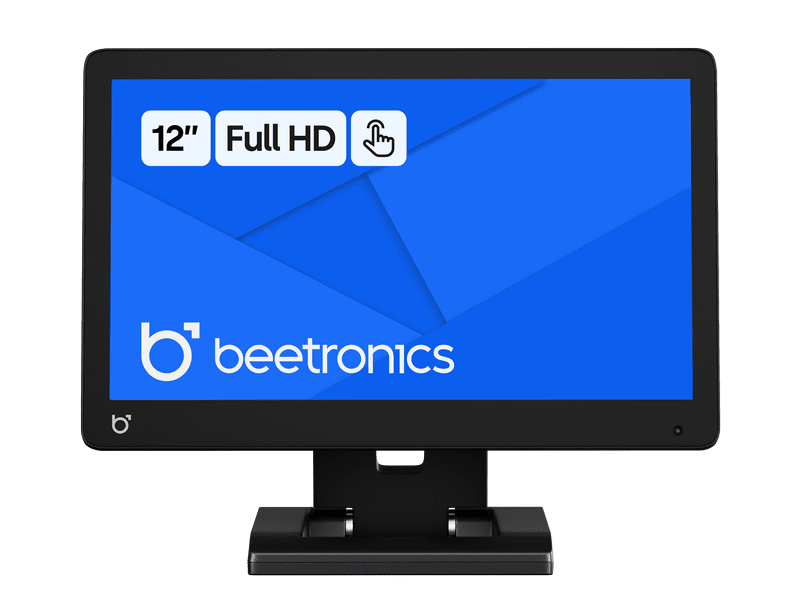

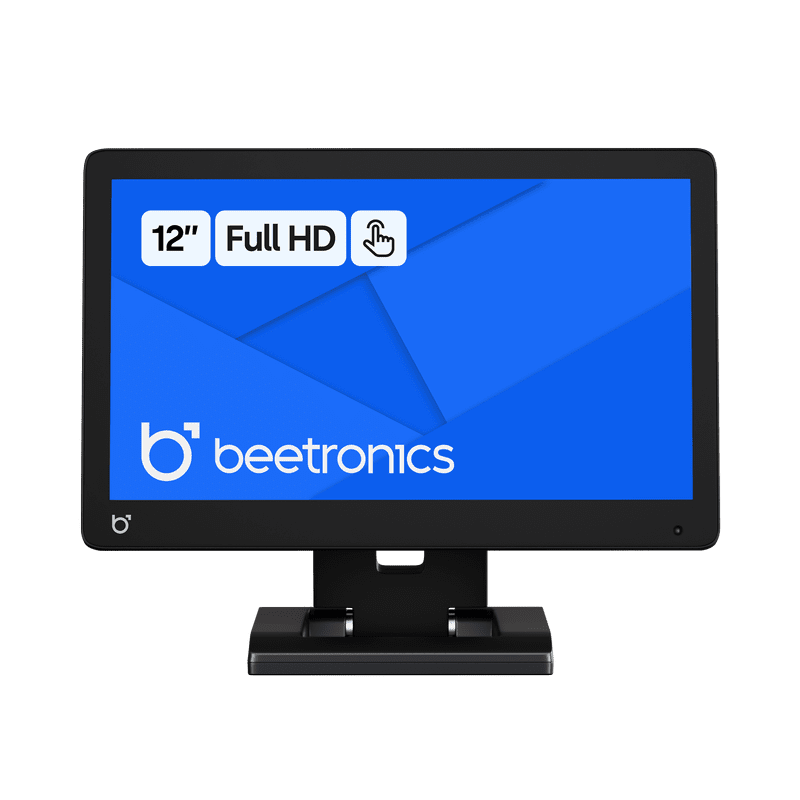

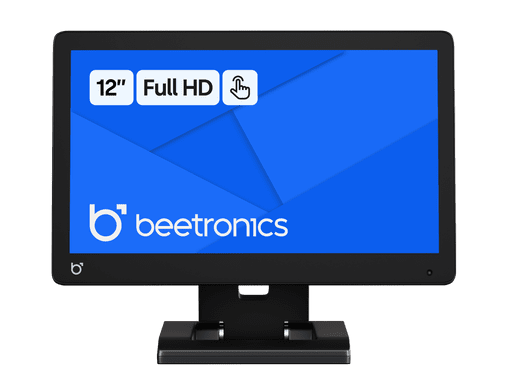

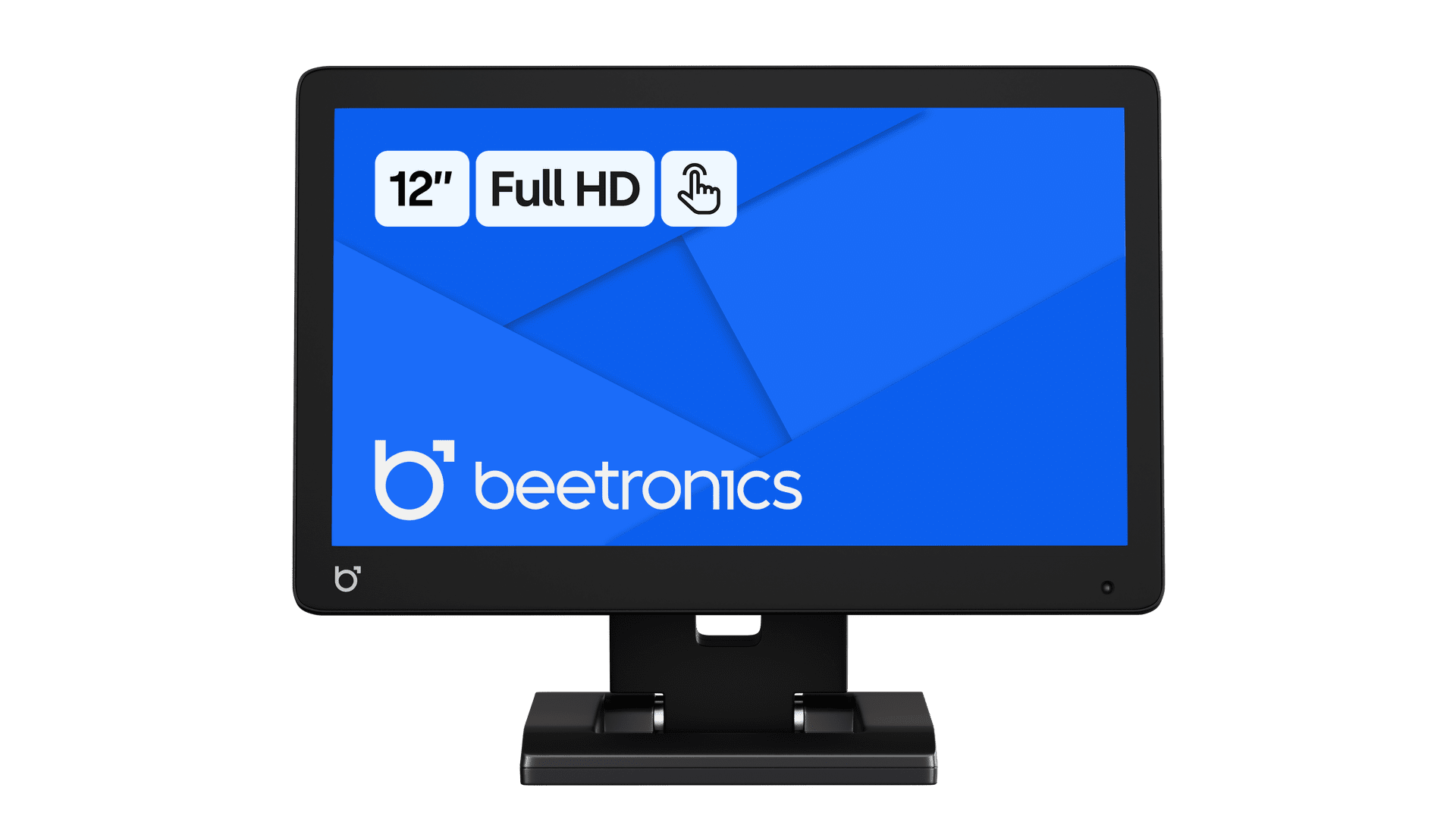

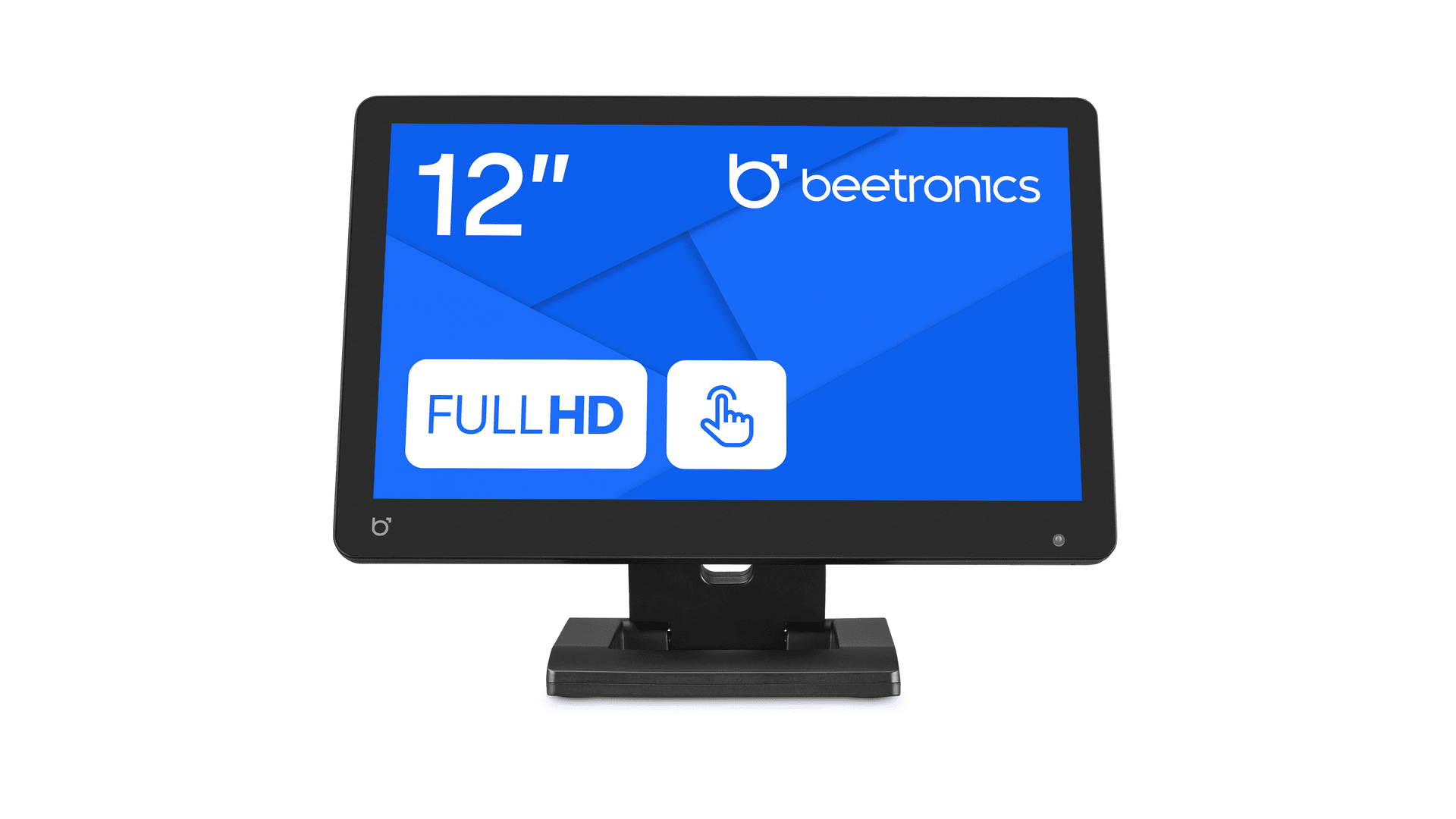

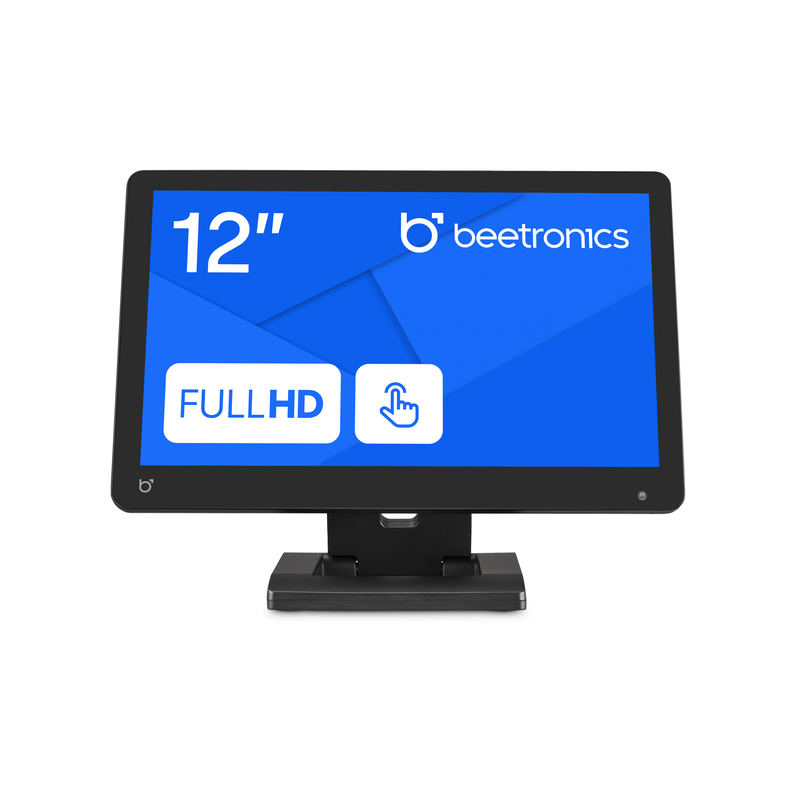

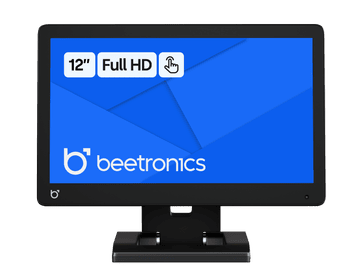

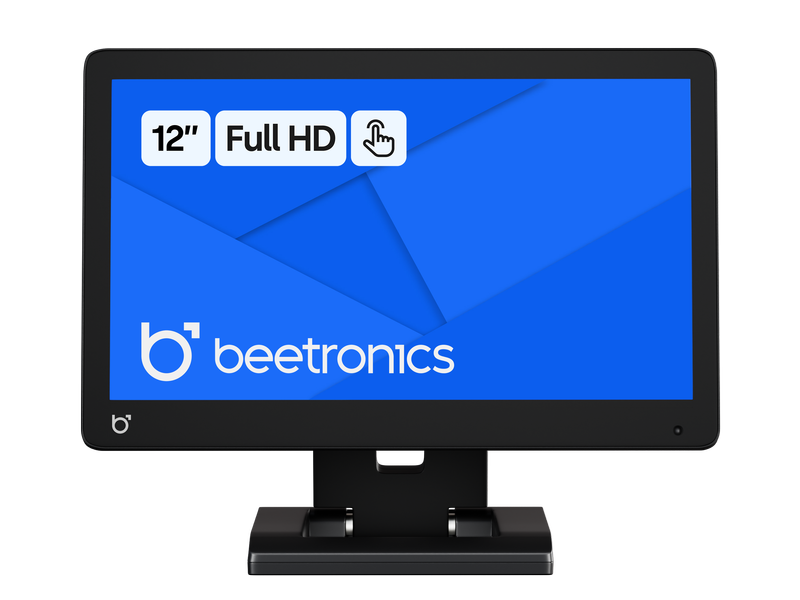

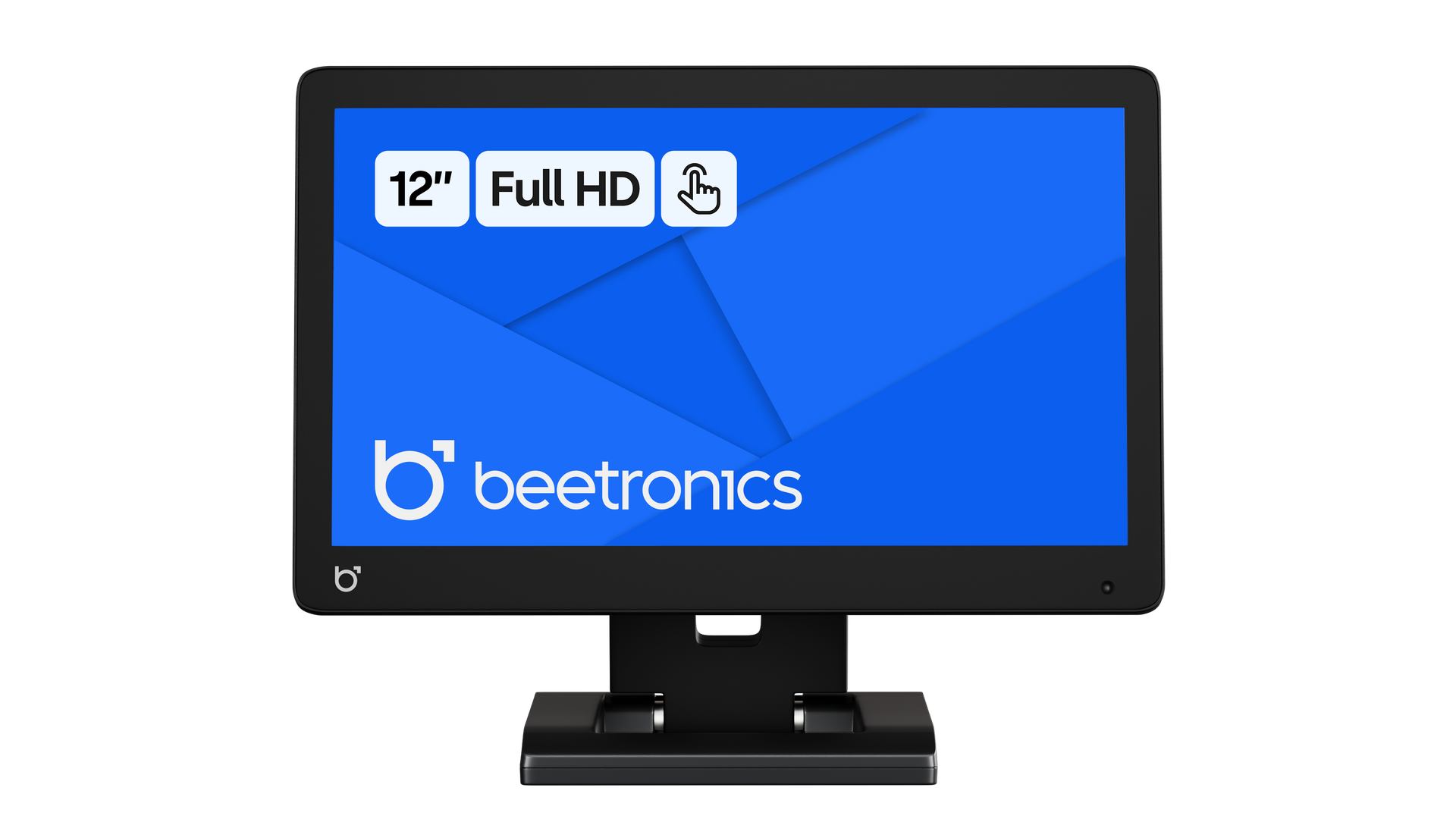

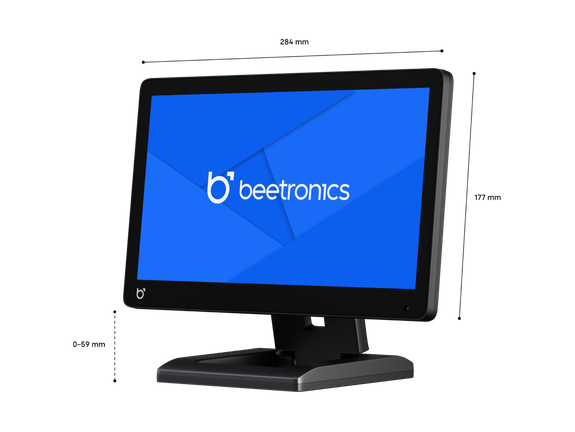

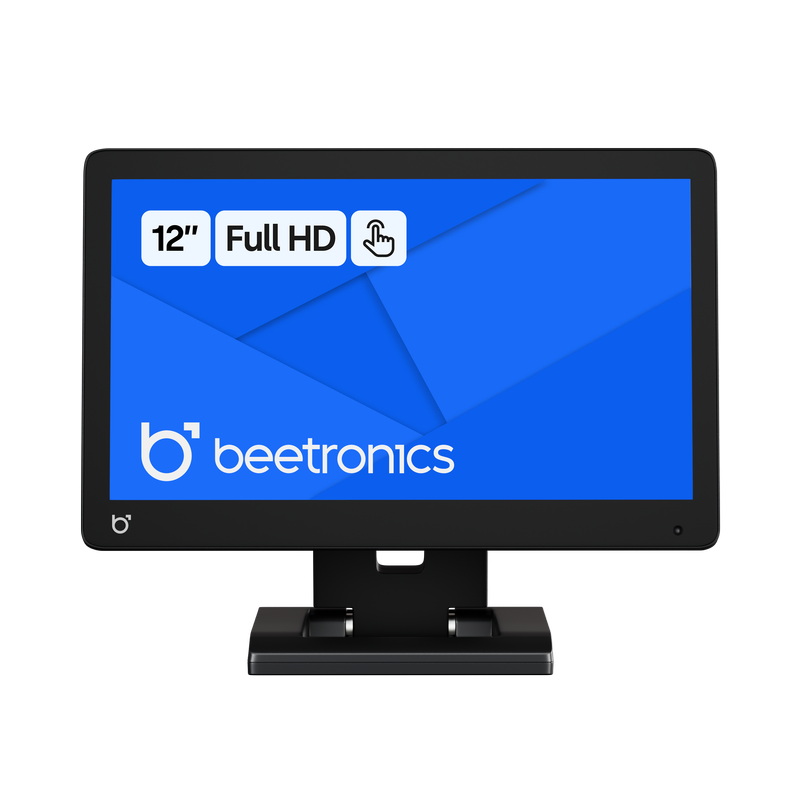

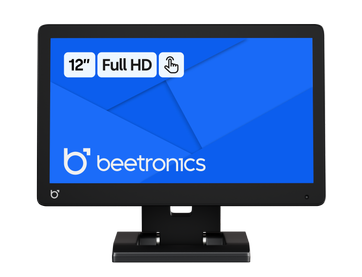

12 Inch Touchscreen

Model: 12TS7
100+ units in stock
Features
  1. Full HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Wall, desktop

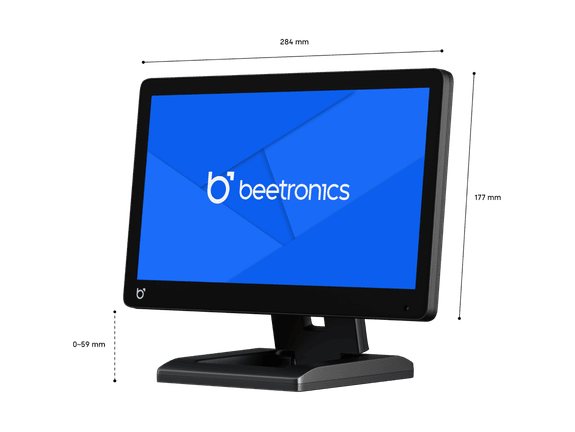

  4. External dimensions: 284 x 179 x 34 mm

This Full HD 12 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 12TS7 provides crystal-clear image quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications and suitable for intensive use.

Display type
Monitor
Touchscreen
€ 379,00
€ 466,17 VAT Incl.
Order by 3:00 pm for delivery on Friday.
Long-term availability Consistently available for years to come.
Free shipping & returns No shipping costs and free 30-day returns.
5,000+ reviews, rated 4.8/5 Trusted by industry leaders worldwide.
Product highlights
12 Inch Touchscreen

Full HD multi-touch panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 12TS7 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

12 Inch Touchscreen

Compatible with Windows, macOS, ChromeOS and Linux

The 12-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

12 Inch Touchscreen

Designed for professional use

The 12TS7 is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 36 Volts and features a fully dimmable backlight.

Mounting options
Wall mount

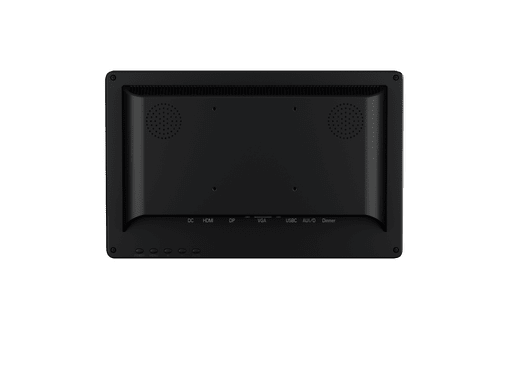

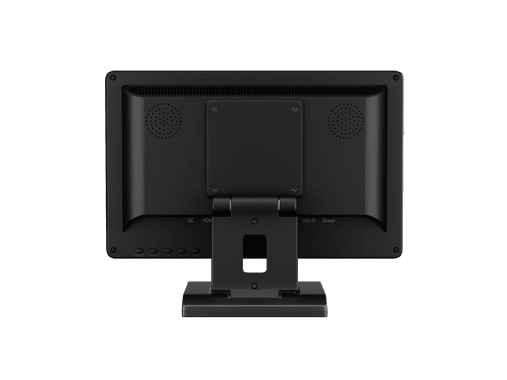

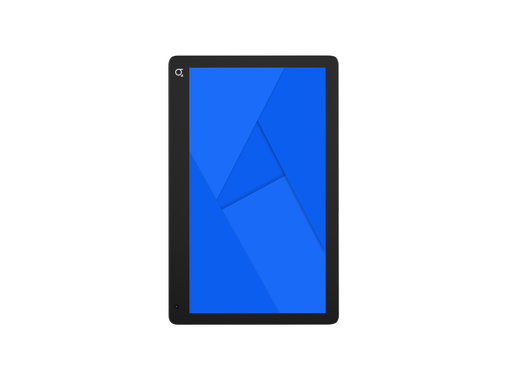

The included stand can be easily removed, giving you access to the universal 75mm VESA mount on the back of the touchscreen. This makes it possible to mount the touchscreen in either landscape or portrait orientation using a wide range of universal mounting options, such as monitor arms, wall brackets, ceiling mounts, or pole brackets.

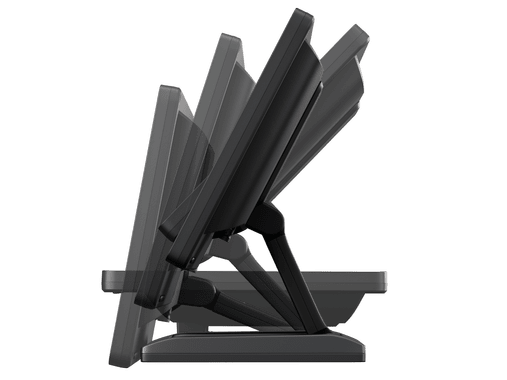

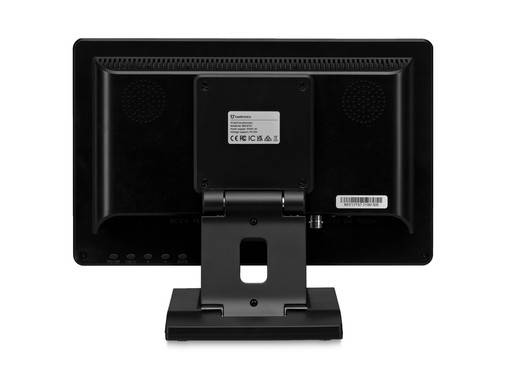

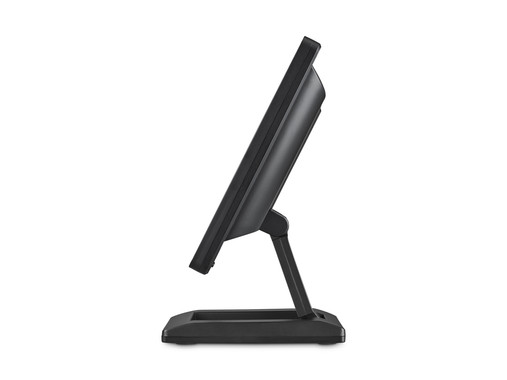

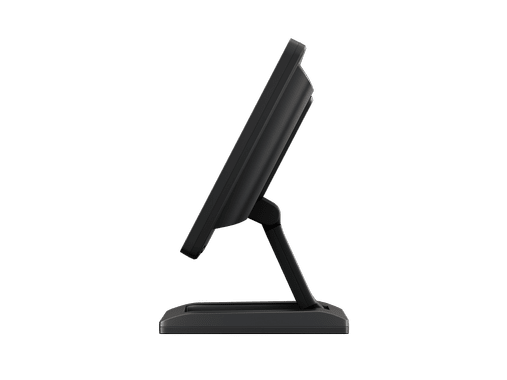

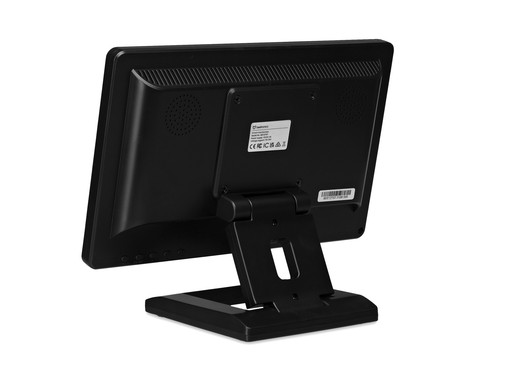

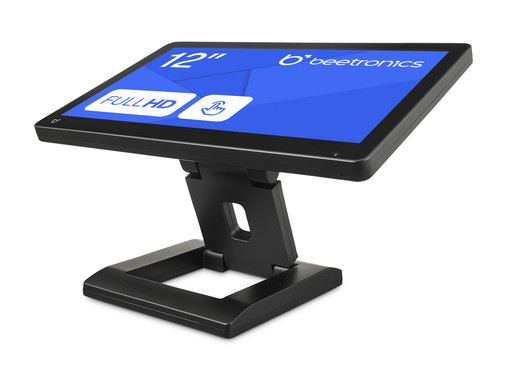

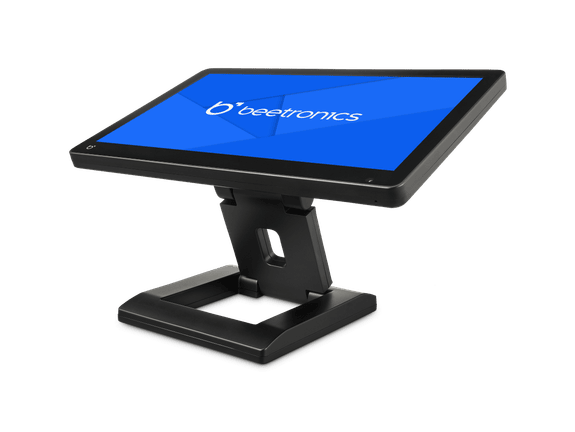

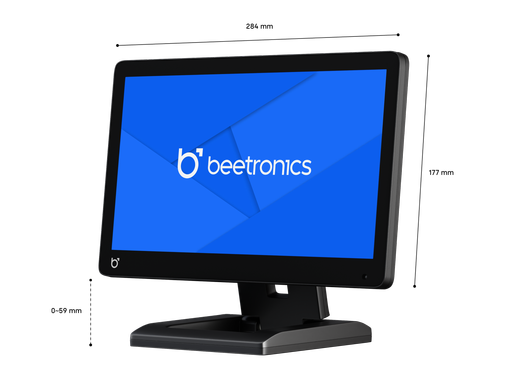

Stand

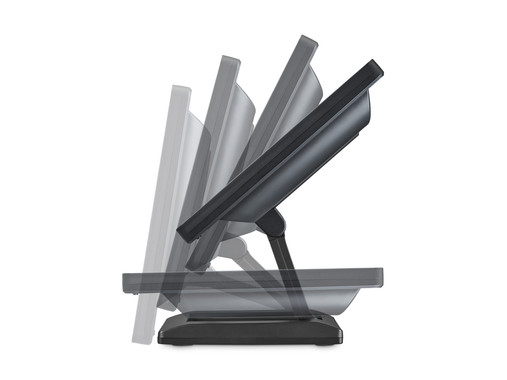

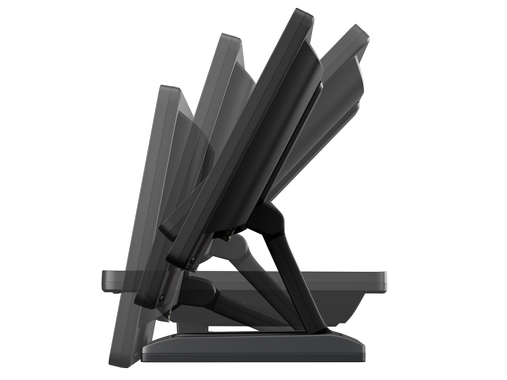

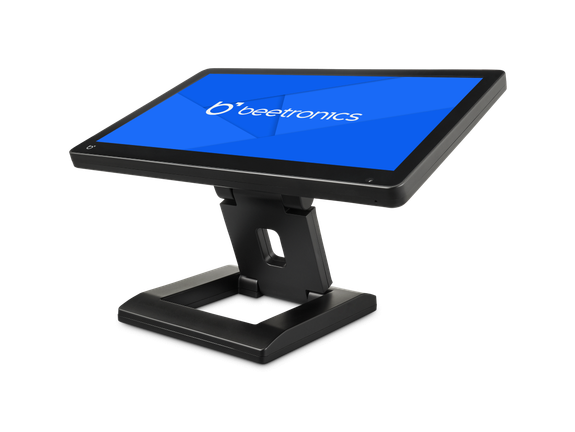

The touchscreen comes with a versatile stand that folds completely flat for easy storage or portability. The base is equipped with pre-drilled screw holes, making it suitable not only for secure attachment but also for wall and ceiling mounting. If needed, the stand can be quickly removed, providing access to the universal 75mm VESA mount. This allows the touchscreen to be installed on a wide range of universal stands or brackets in either landscape or portrait orientation.

Specifications
General
Manufacturer
Beetronics
Item number
12TS7
Product name
12 Inch Touchscreen
Warranty
2 years
Datasheet
Download PDF
Drivers
Download touchscreen driver
User manual
Download PDF
Quickstart
Download PDF
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Tahoe, Sequoia, Sonoma
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Samsung DeX
All Samsung DeX versions
Panel
Diagonal size
11.6 inches (297 mm)
Panel type
IPS-LCD
Aspect ratio
16:9 (4:3 adjustable)
Response time
10 ms
MTBF
50K
Native resolution
1920 x 1080
Supported resolutions
1920 x 1080 (max), 640 x 480 (min)
Pixels per inch
190 PPI
Backlight
LED
Brightness
500 cd/m2
Contrast
1000:1
Color encoding system
PAL/NTSC/SECAM
Viewing angle
178° horizontal, 178° vertical
Surface
Tempered glas
Touch technology
Capacitive, 10-point multi-touch (PCAP)
Touch control
Stylus, hand, glove

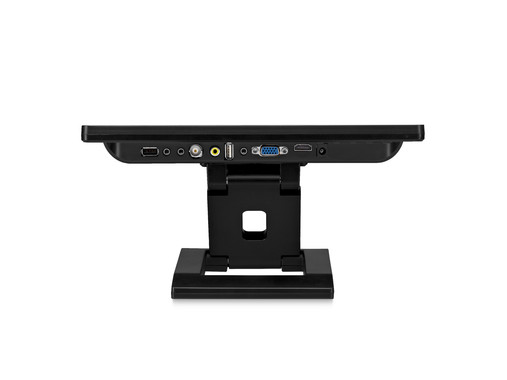

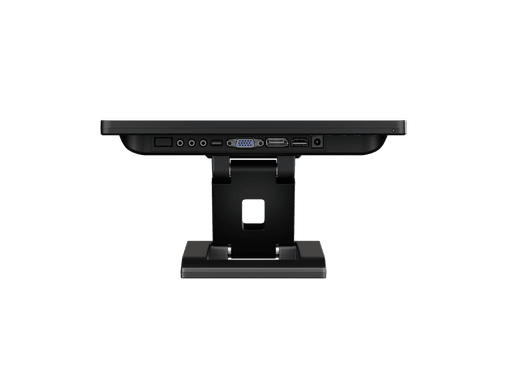

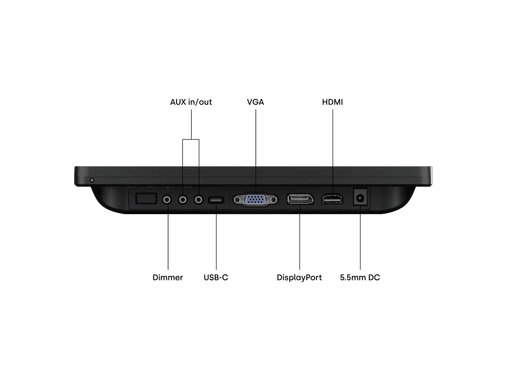

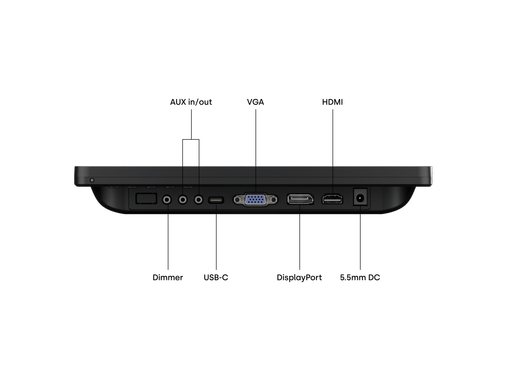

Connectivity
HDMI
1x
DisplayPort
1x
VGA
1x
USB-C
1x Video, audio, touch
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX input (3.5mm)
1x
AUX output (3.5 mm)
1x

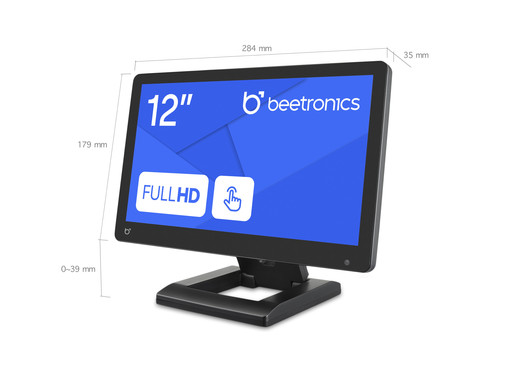

Size & weight
Colour
Black

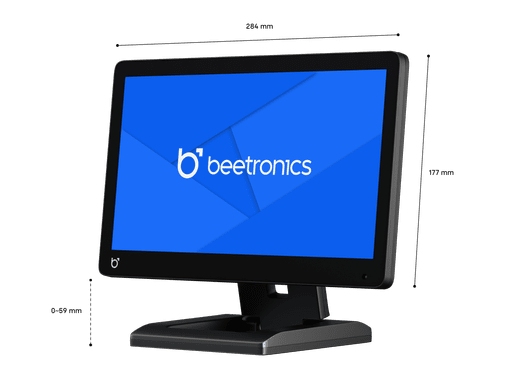

Dimensions (without stand)
284 x 179 x 32 mm
Active area
259 x 143 mm
Weight
700 grams (1100 grams with stand)
Technical drawing (2D)
Download PDF
Technical drawing (3D)
Download CAD/STP
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness

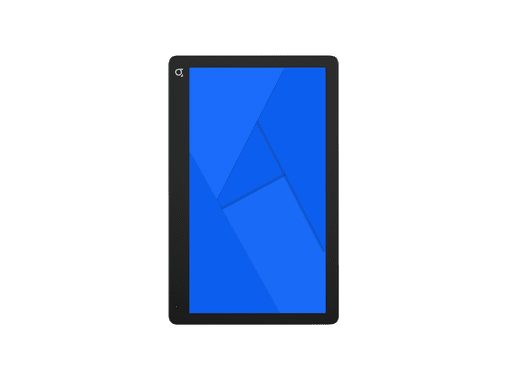

Orientation
Landscape, portrait, face-up
Power
Input voltage
DC 9-36V
Consumption
11 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
10% - 90% non-condensing
Mounting
Wall mount
VESA 75x75mm
Flush mount
Possible, no accessories available
Stand
Adjustable and detachable
Compliance
Ingress protection (IP)
IP65 front panel
Impact protection (IK)
IK08
Standards & certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, SAE J1113, EN50155, EN45545-2, EN60601-1 (requires PSU1-MED), EN60601-1-2 (requires PSU1-MED), CCC, CAN ICES-003(A)/NMB-003(A)

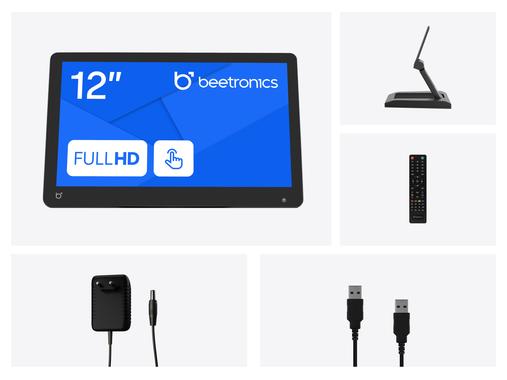

Package content
Includes

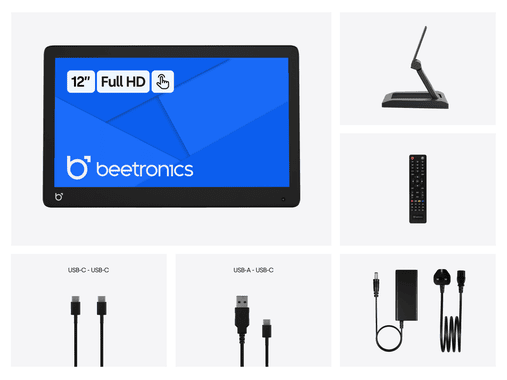

Touchscreen, USB-C to USB-C cable, USB-C to USB-A cable, remote control, power adapter, manual
