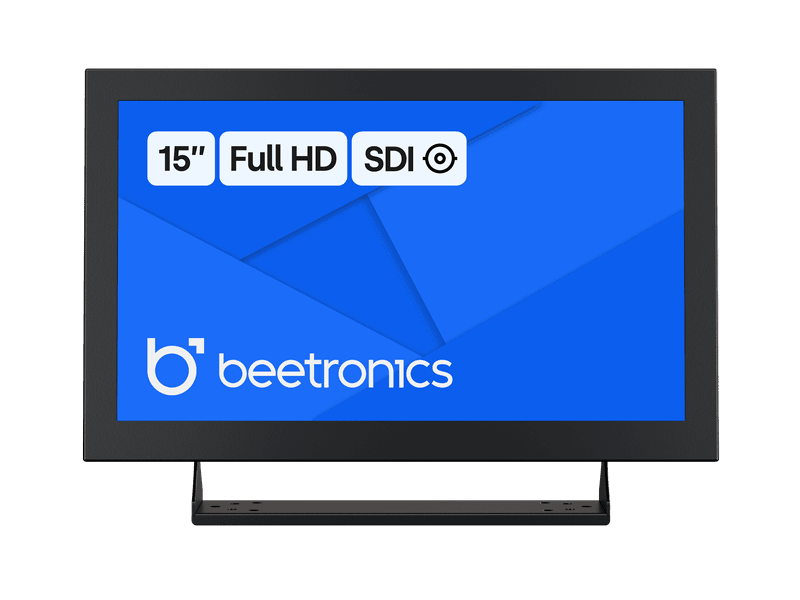

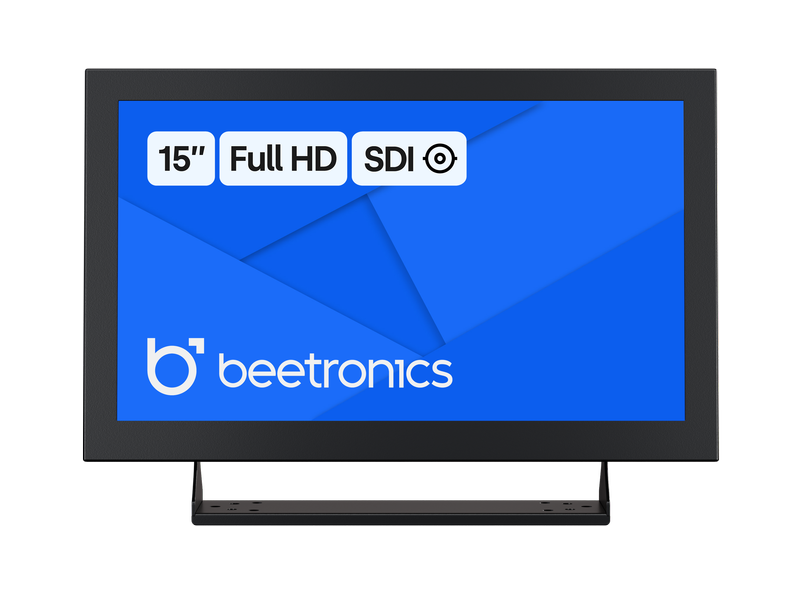

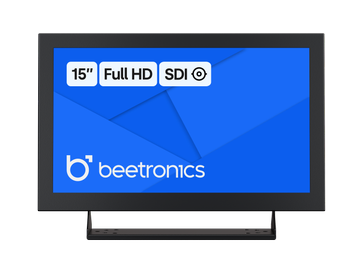

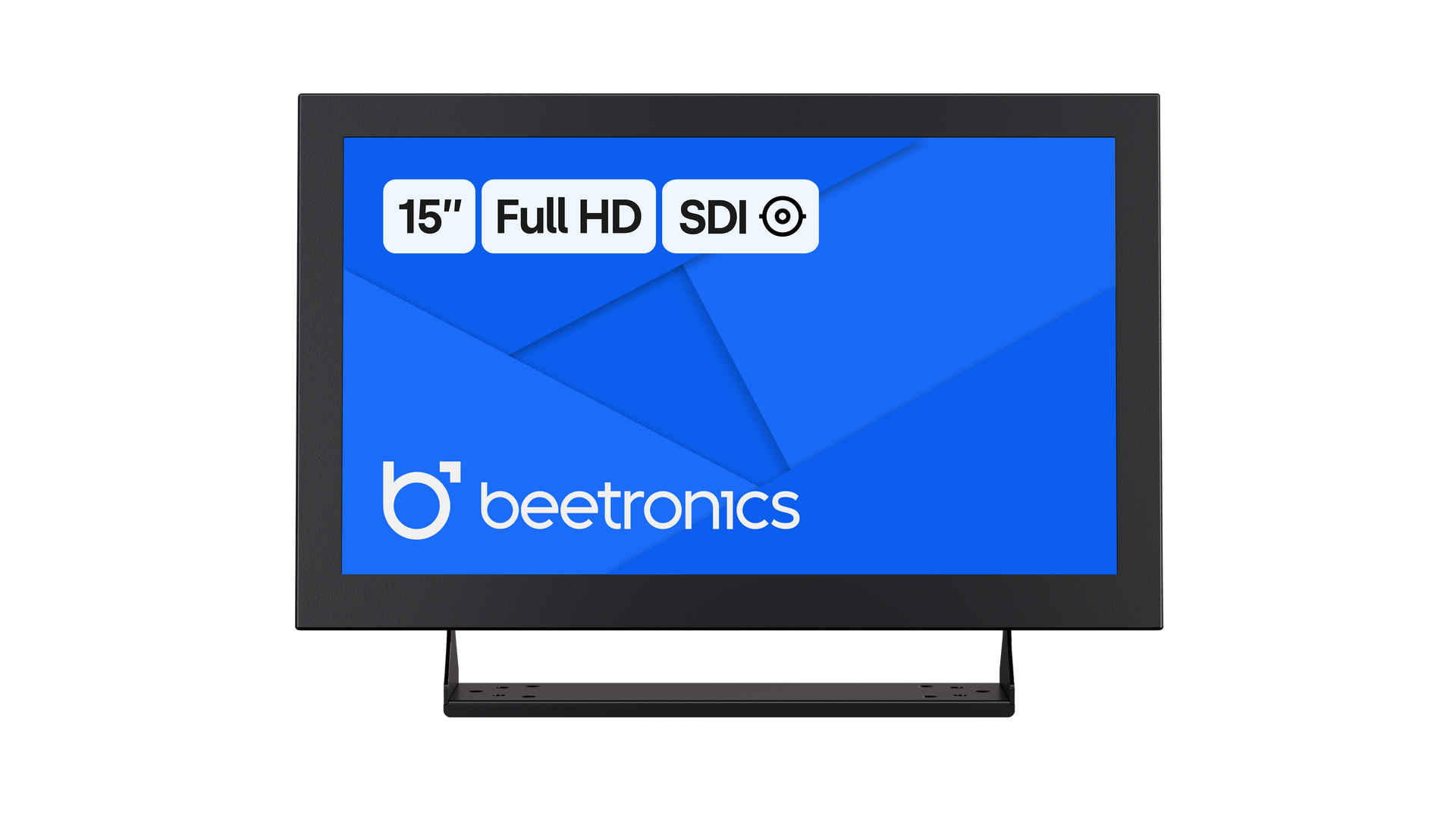

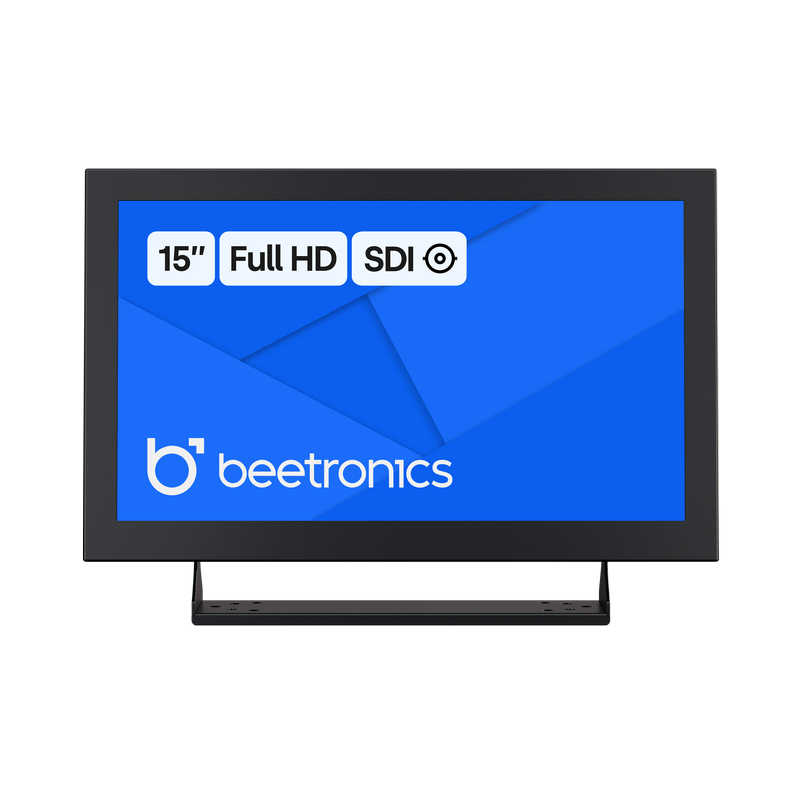

15 inch monitor metal SDI
15 inch monitor metal SDI
- 1920 x 1080 resolution (Full HD)
- Input: HDMI (input & output), SDI (2x input & 2x output)
- Mounting: Flush, embedded, wall, desktop

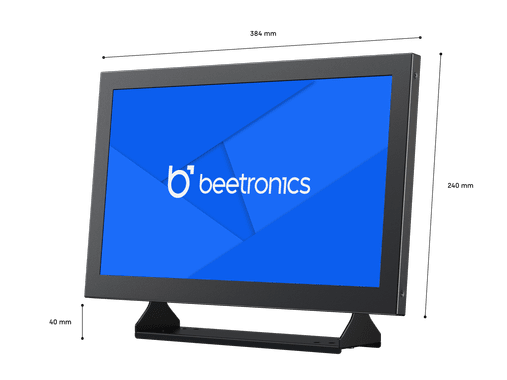

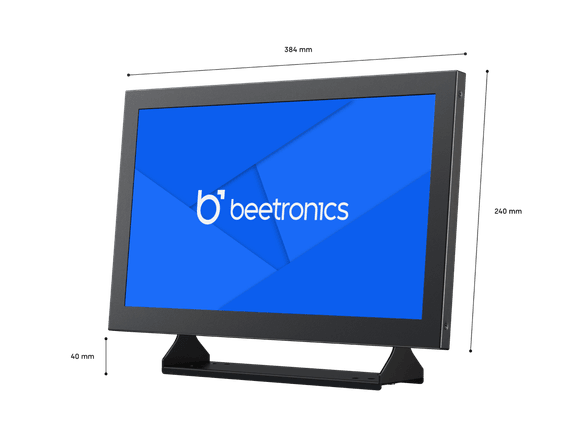

- External dimensions: 384 x 240 x 40 mm
Screen size
15 inch monitor metal SDI
-
12 inch monitor metal SDI279 x 179 x 38 mm -
15 inch monitor metal SDI384 x 240 x 40 mm
-
22 inch monitor metal SDI511 x 309 x 41 mm
- View all 15 inch monitors
€ 749,00
€ 921,27 VAT incl.
Order by 4:00 pm for delivery on Monday
- Description
- Specifications
- Connectivity
- Downloads

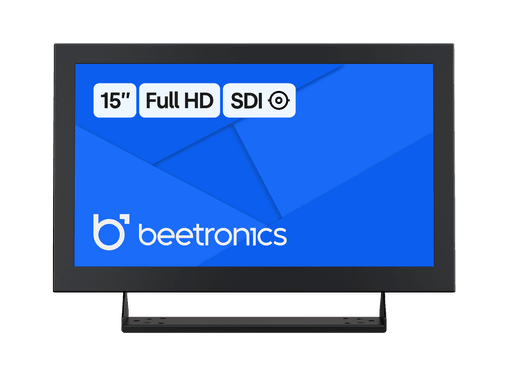

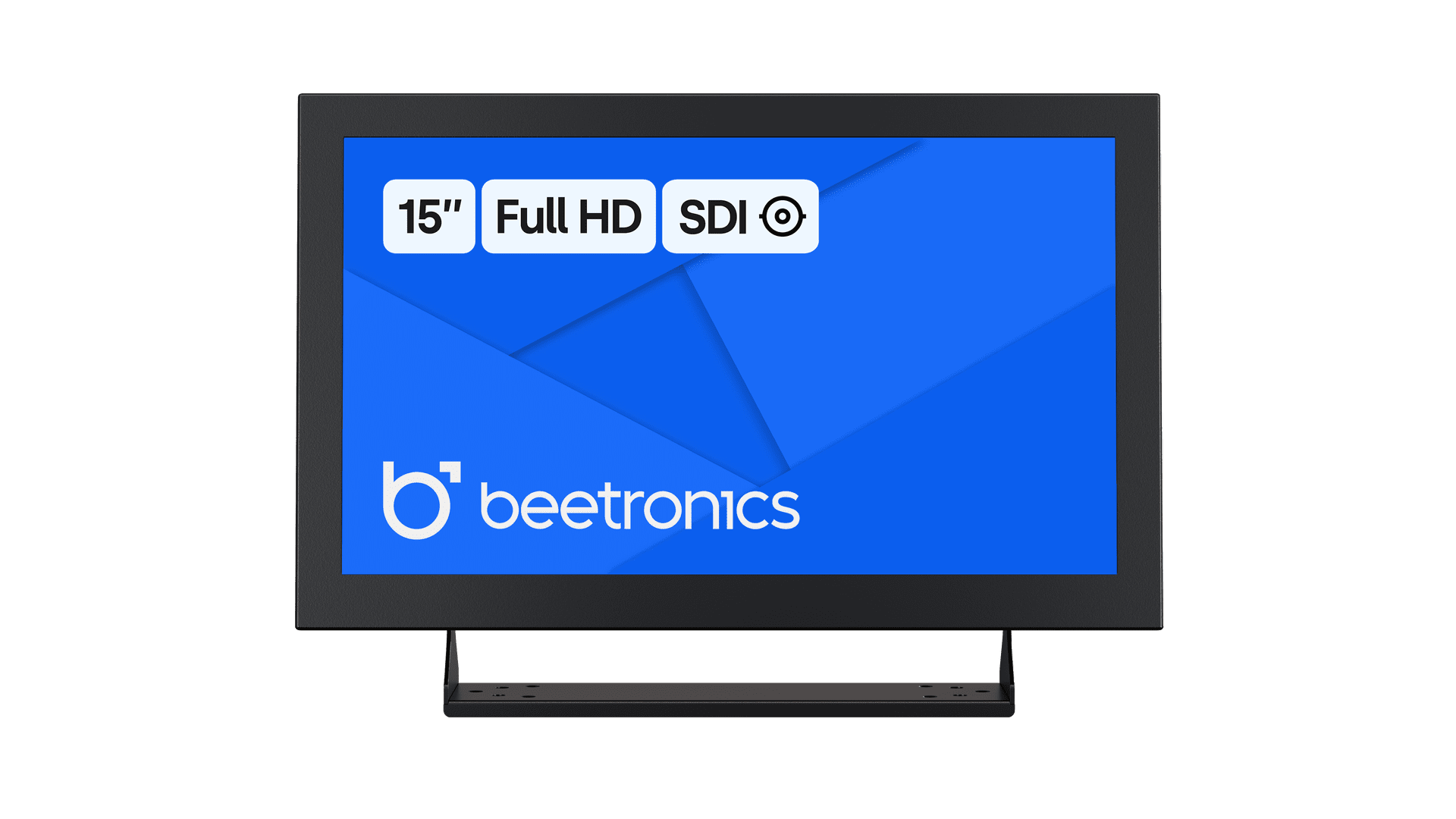

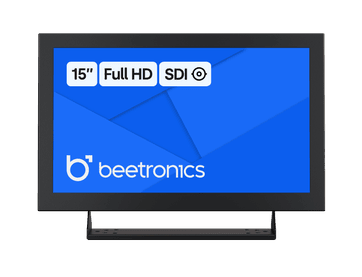

This 15 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 15 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 15SDI7M can be easily connected to multiple HDMI, and SDI sources as well as daisy chained to other screens thanks to the inputs and outputs available.
Outstanding Full HD image quality
Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.
Versatile connectivity

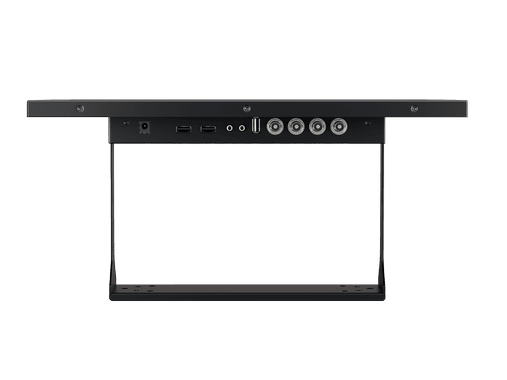

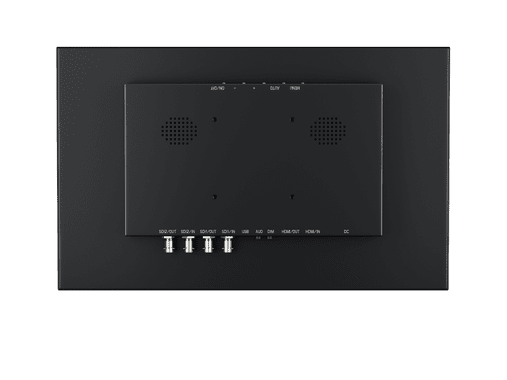

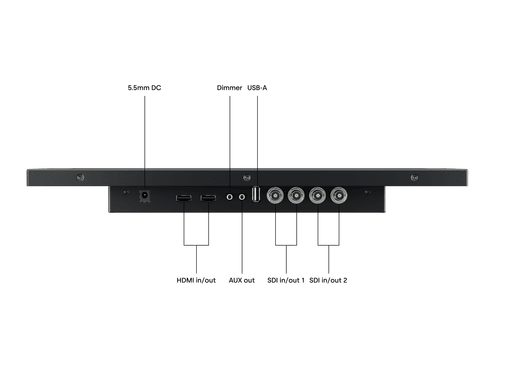

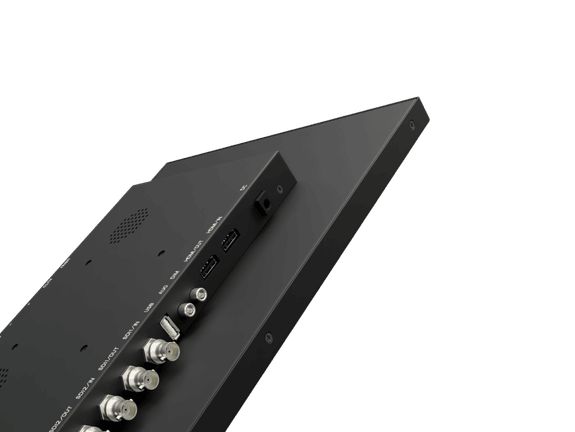

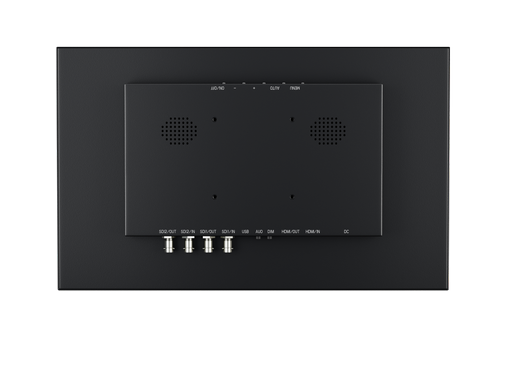

The 15SDI7M has an HDMI input and output and two SDI inputs and outputs. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.
Designed for professional use
The 15SDI7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.
Easily integrated

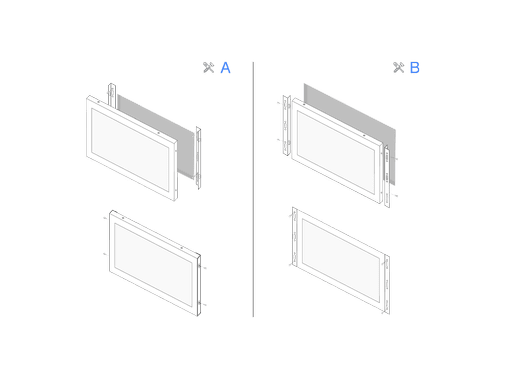

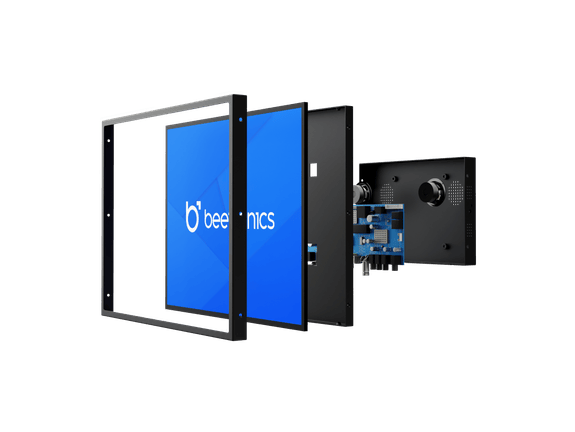

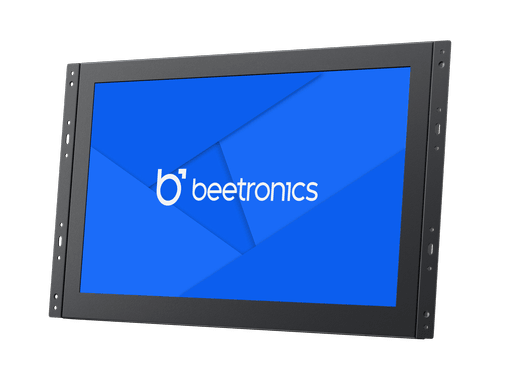

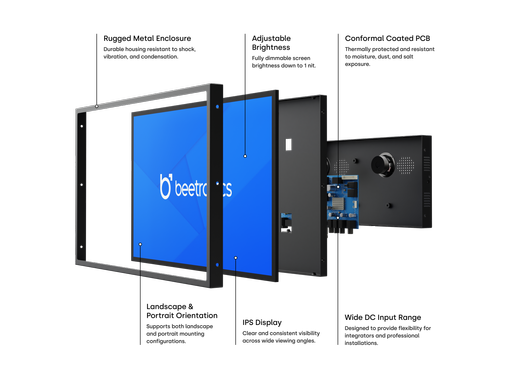

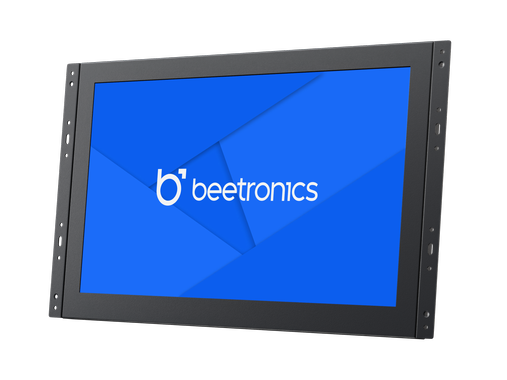

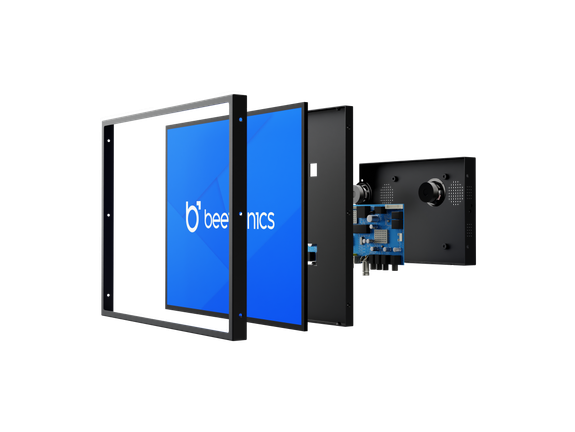

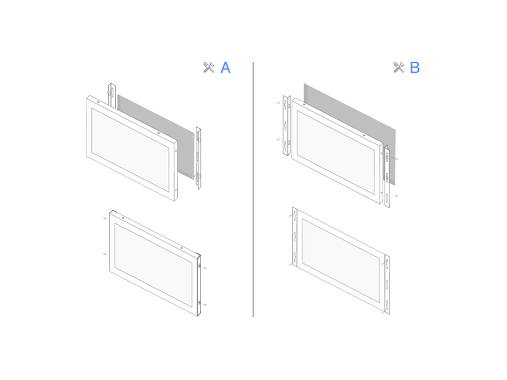

Thanks to numerous mounting options the 15 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.
Desktop or wall mounting

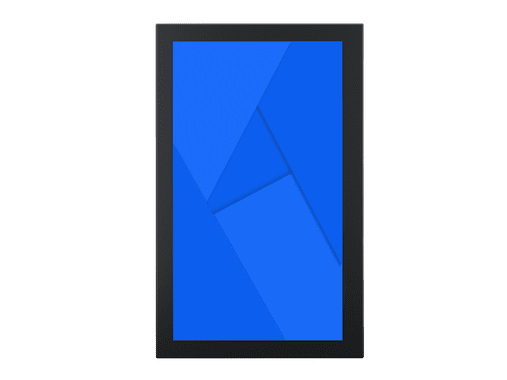

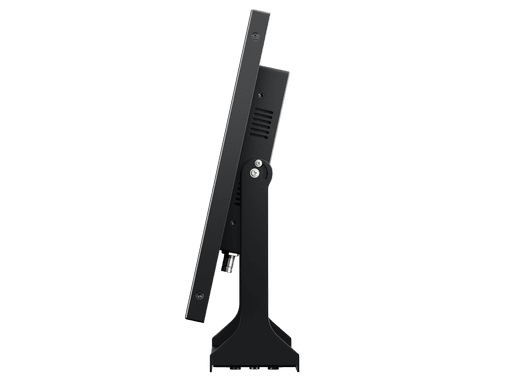

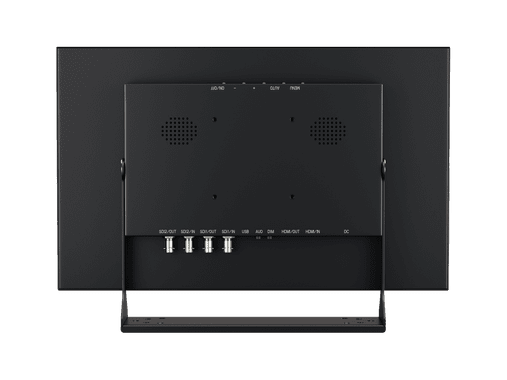

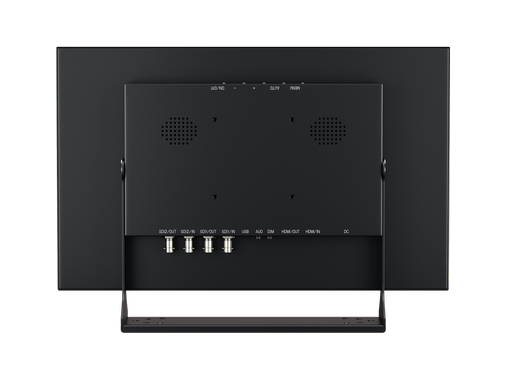

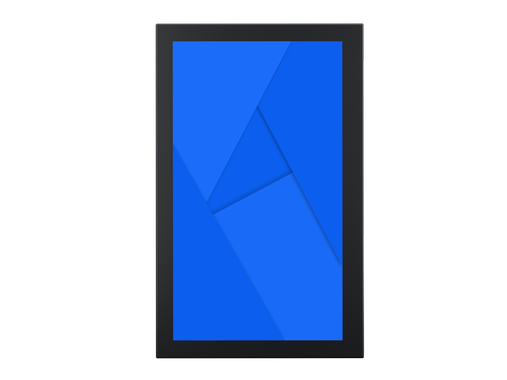

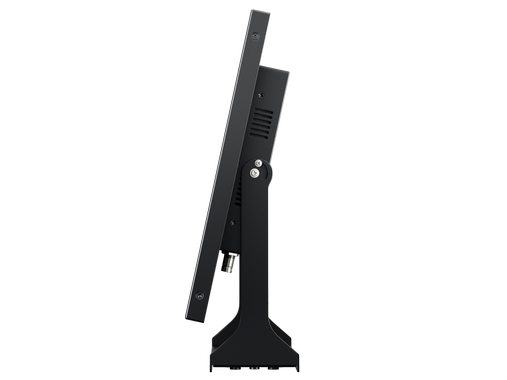

The Beetronics 15SDI7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.
General
Manufacturer
Beetronics
Item number
15SDI7M
Product name
15 inch monitor metal SDI
Warranty
2 years
Datasheet
Manual
Panel
Matte, LED-IPS
Diagonal size
15.6 inches (396 mm)
16:9 (4:3 adjustable)
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
146 PPI
178° horizontal, 178° vertical
Color encoding system
PAL/NTSC/SECAM
Brightness
350 cd/m2
Contrast
700:1
Connectivity
HDMI input
1x
HDMI output
1x
AUX input
1x
AUX output
1x
1x integrated USB media player
SDI input (3G)
2x
SDI output
2x
Size & weight
Colour
Black
Weight
2400 grams (3200 grams with stand)
Width
384 mm
Height
240 mm
Thickness
40 mm
Display dimensions
344 x 195 mm
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
The monitor is equipped with a built-in USB media player.
Power
Input voltage
DC 9-33V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-3A
Consumption
22.3 Watt
Environmental
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 80% non-condensing
Mounting
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, CCC

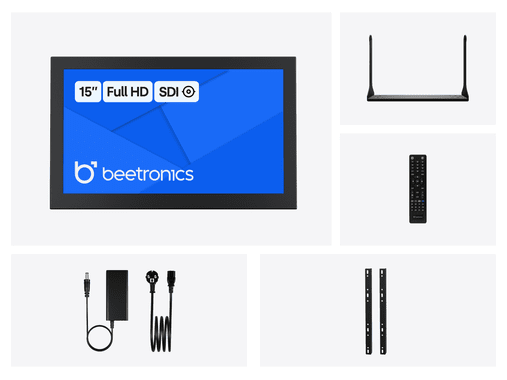

Package content
Includes
Monitor, Stand, Remote control, Mounting strips, AC power adapter, Manual
Downloads
Manual
Technical drawing
3D Drawing
Datasheet
