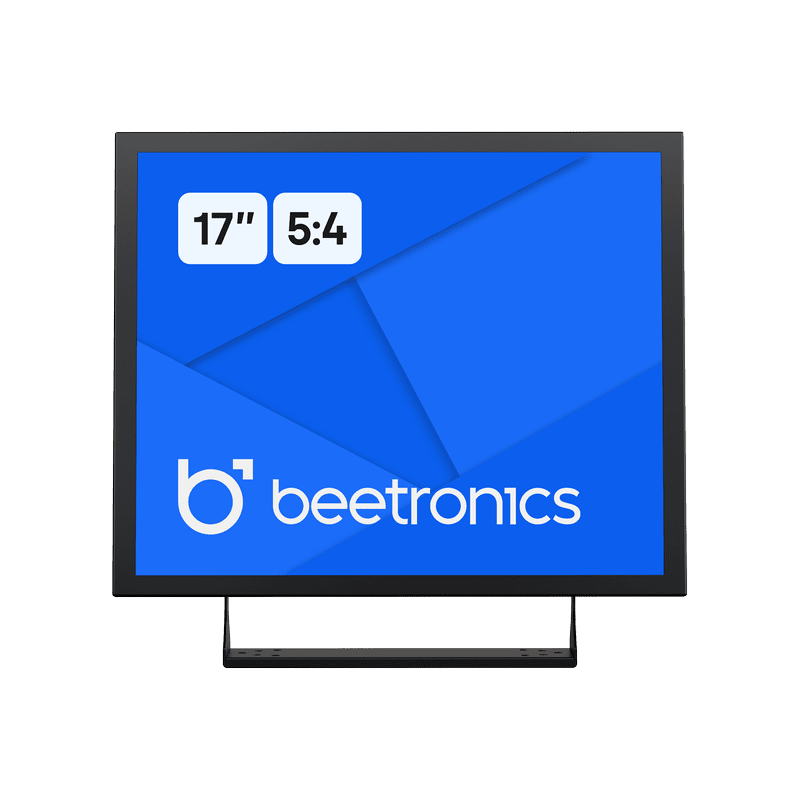

17 inch monitor metal (5:4)
- 5:4 aspect ratio
- Input: HDMI, VGA, BNC and RCA
- Desktop, flush and wall mountable
- 372 x 305 x 39 mm
- Description
- Specifications
- Connections
- Downloads

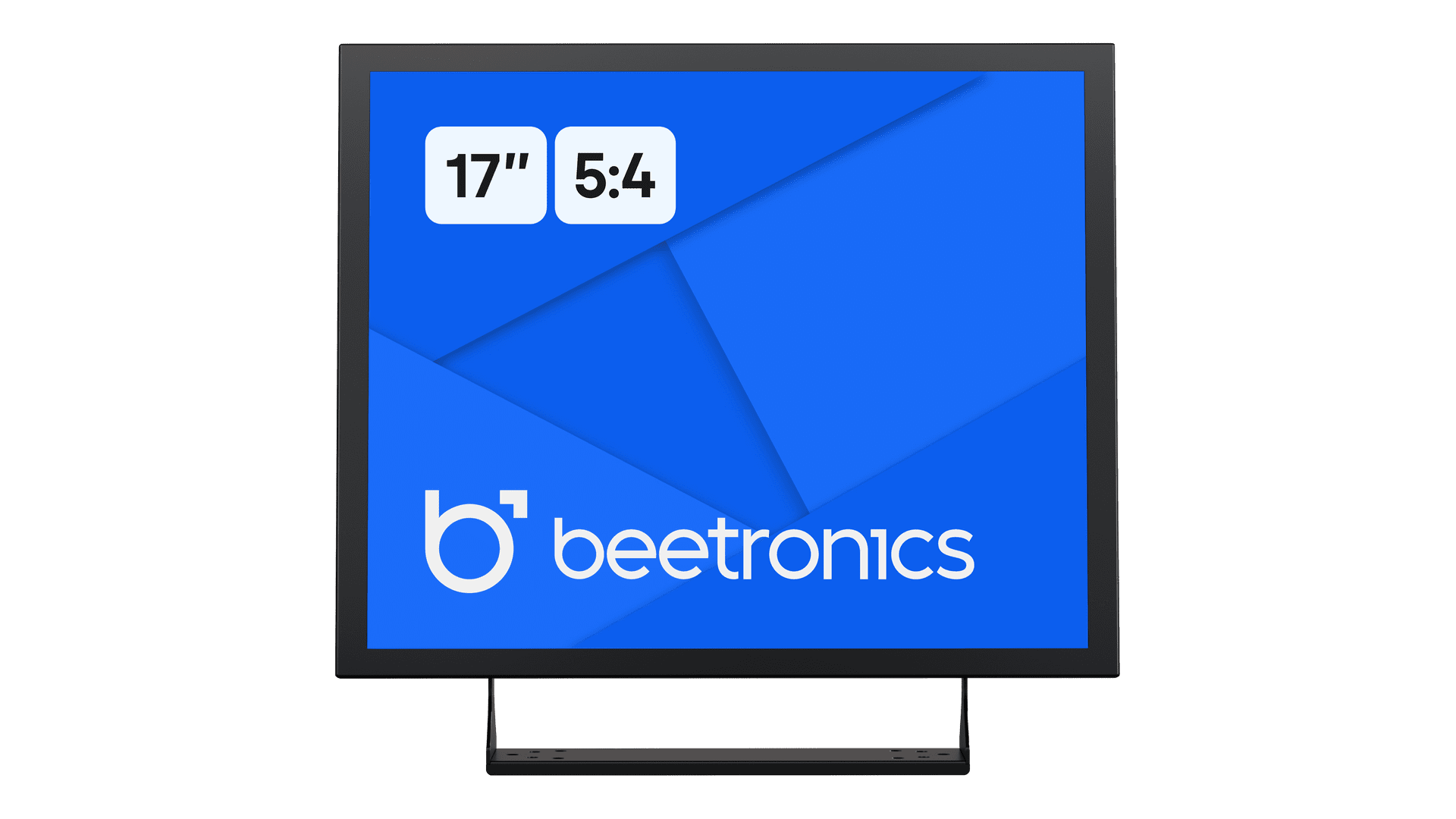

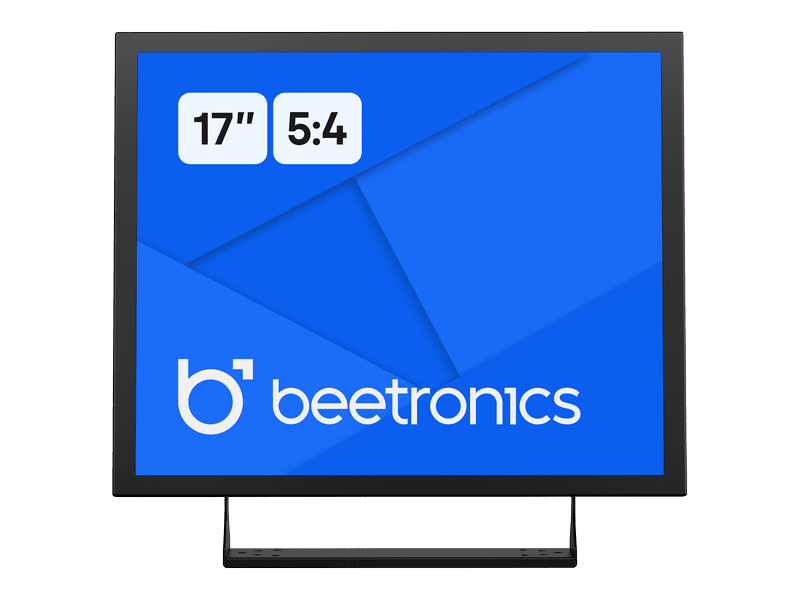

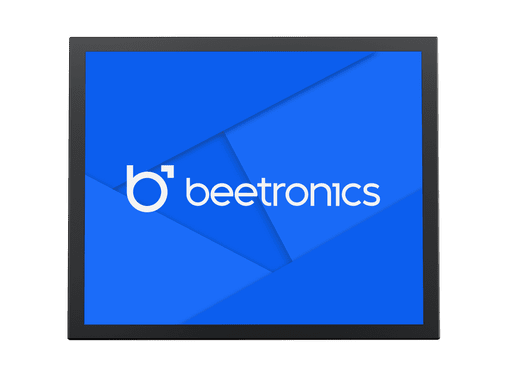

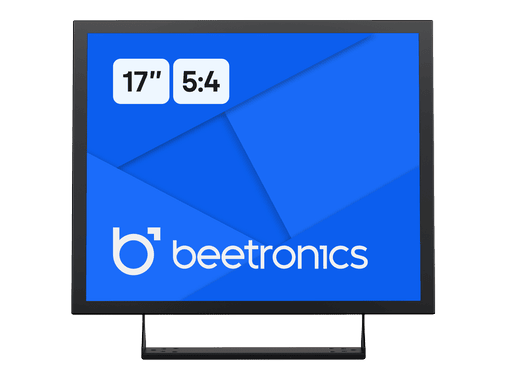

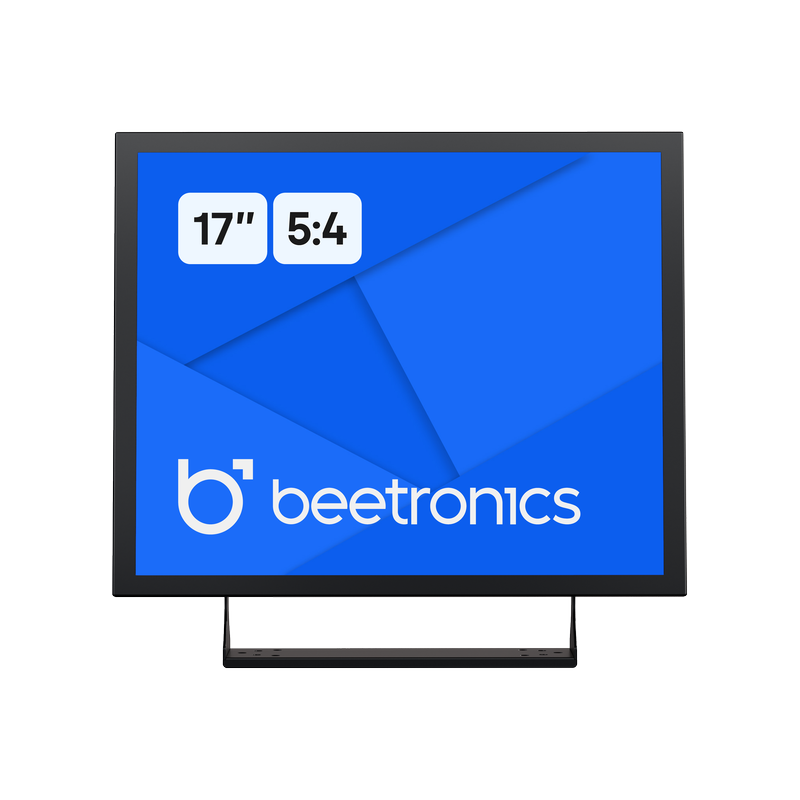

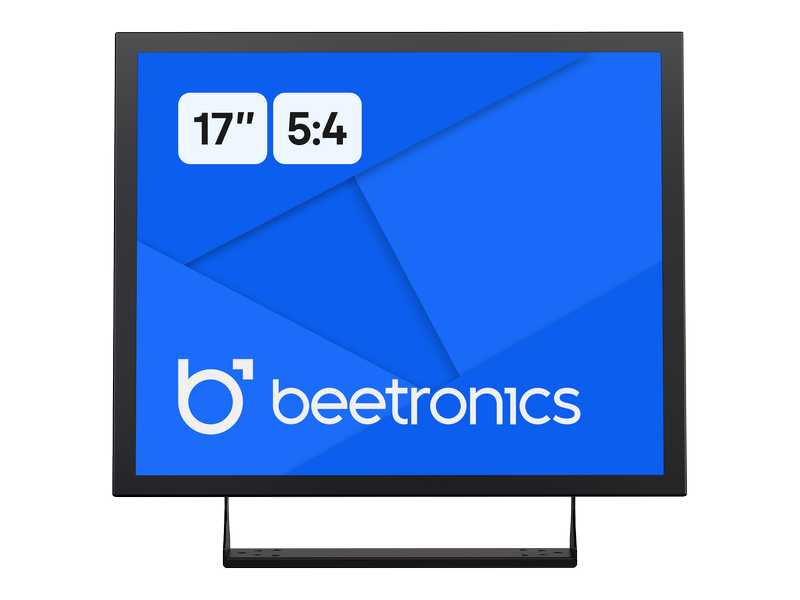

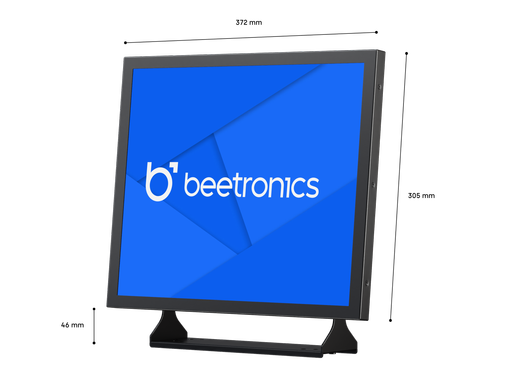

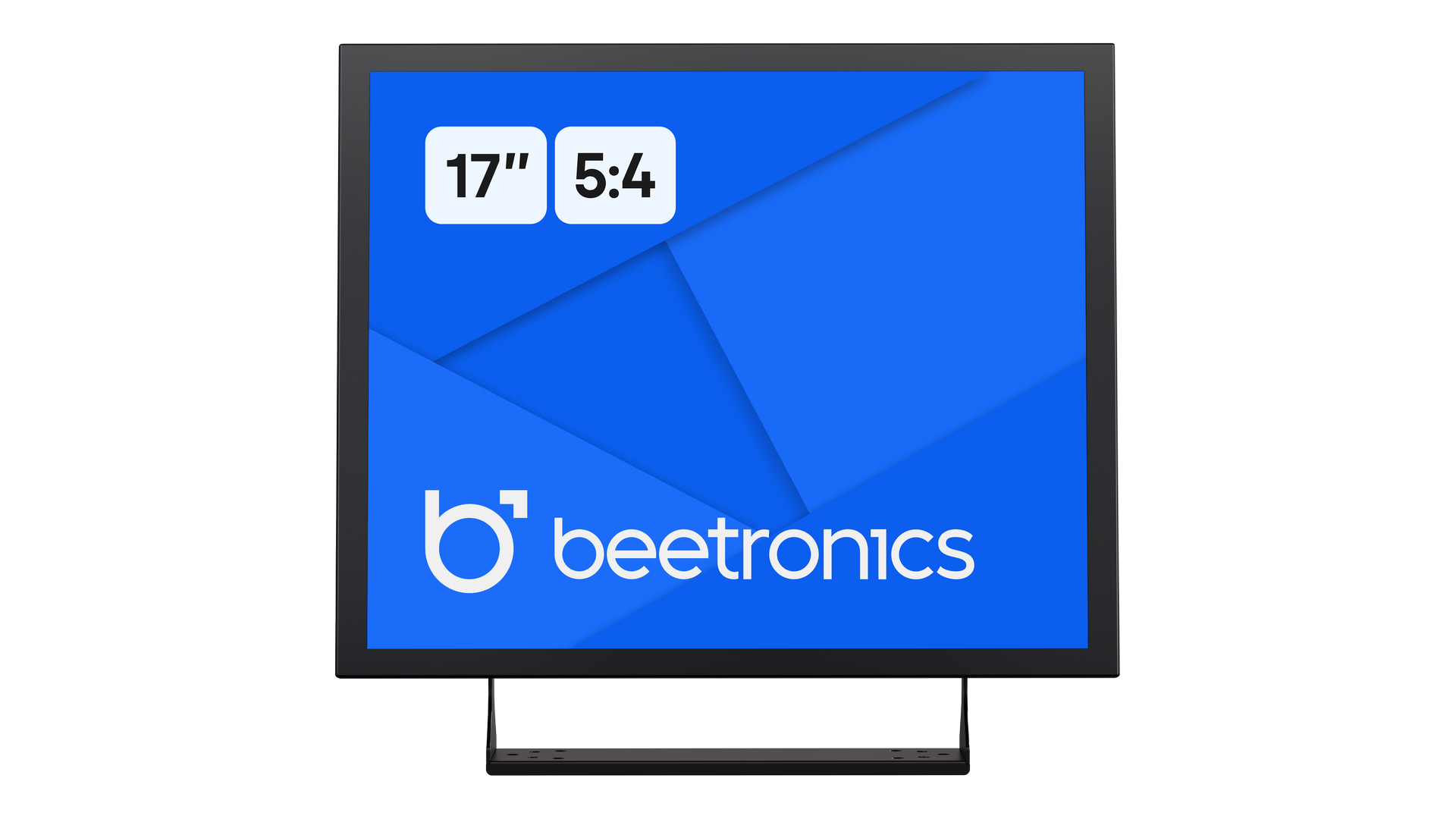

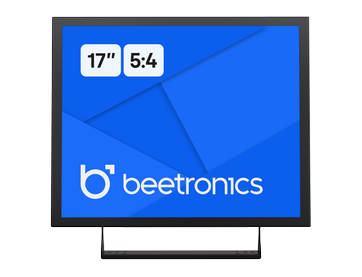

This 17 inch monitor has a matte IPS panel with a 5:4 aspect ratio. The monitor delivers a crisp image quality with excellent 178° viewing angles. The 17 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting.
5:4 aspect ratio
This 17 inch monitor is equipped with a 5:4 aspect ratio IPS panel. The monitor delivers a crisp image with excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor is designed to display 5:4 ratio resolutions and is able to scale any resolution up to 1080p.
.jpg)

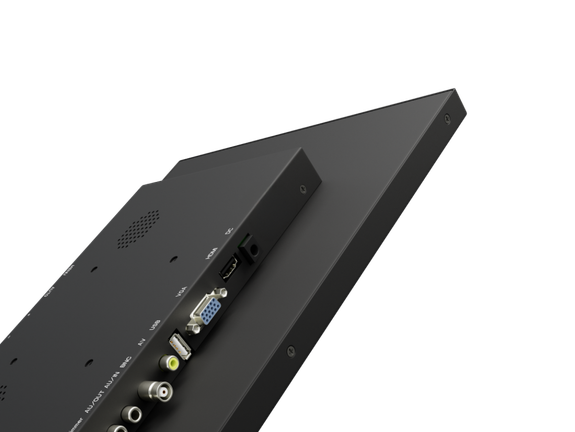

Versatile connectivity

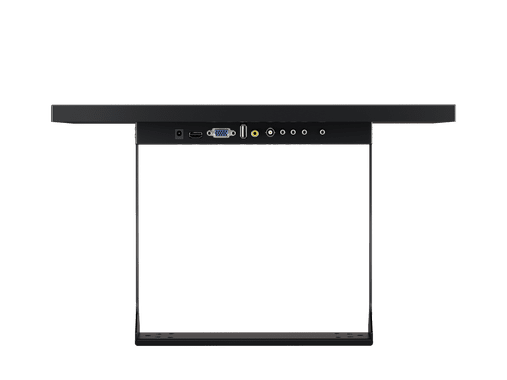

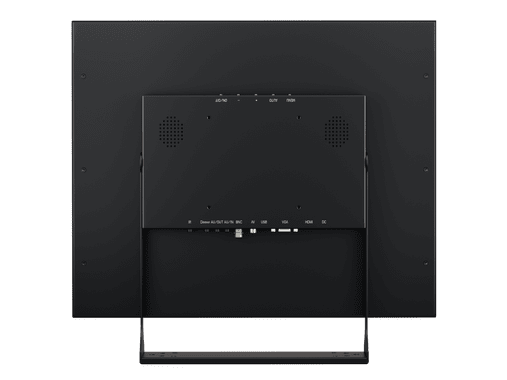

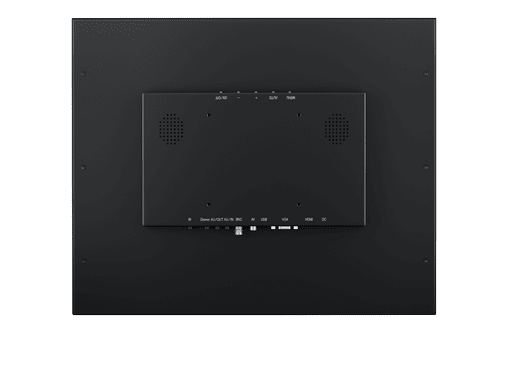

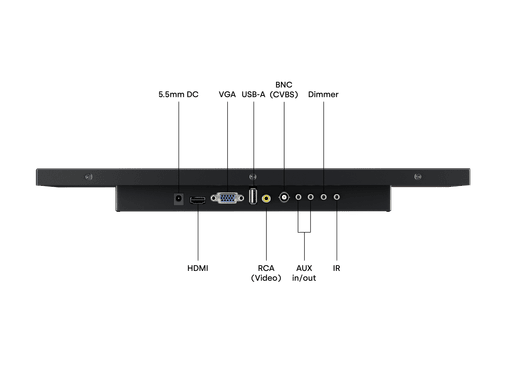

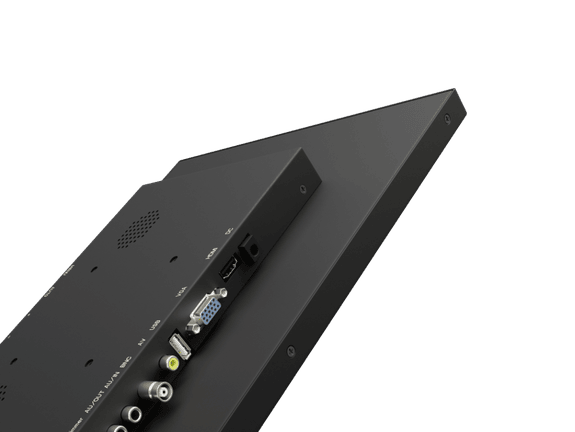

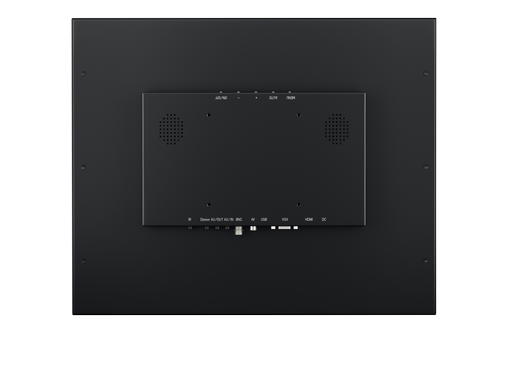

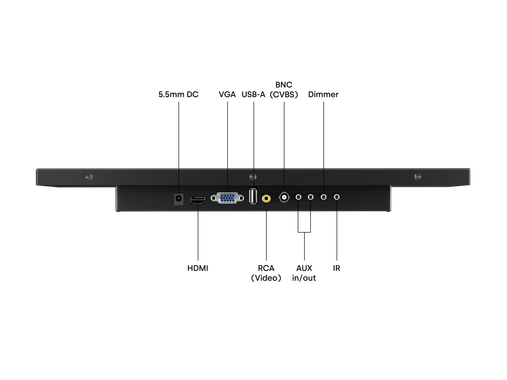

The Beetronics 17VG7M features HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on or off when it detects current or a video signal.
Designed for professional use
The 17VG7M is designed for continuous operation and professional use. The monitor is manufactured with high quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 10 to 33 Volts and features a fully dimmable backlight.

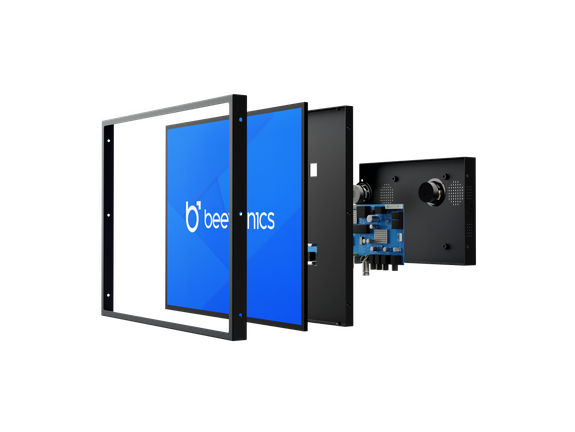

Easily integrated

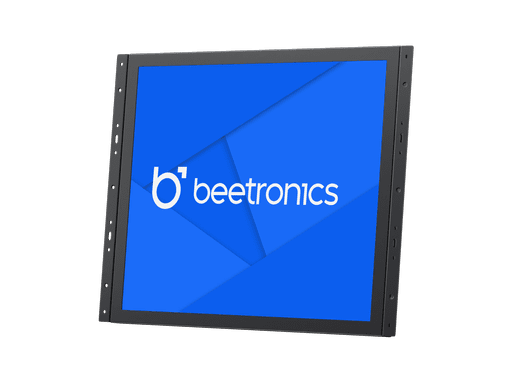

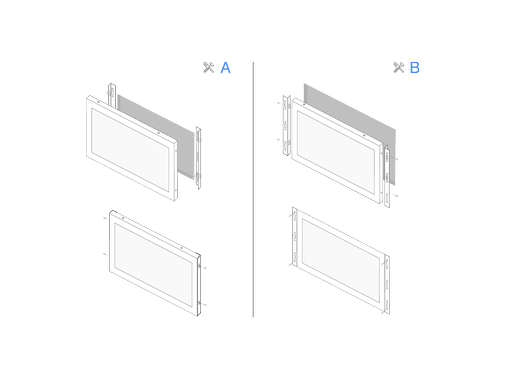

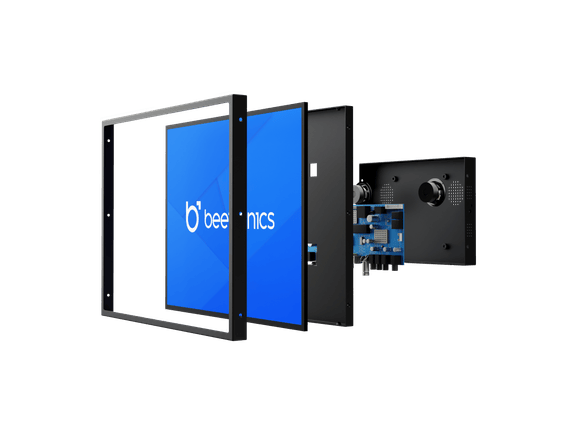

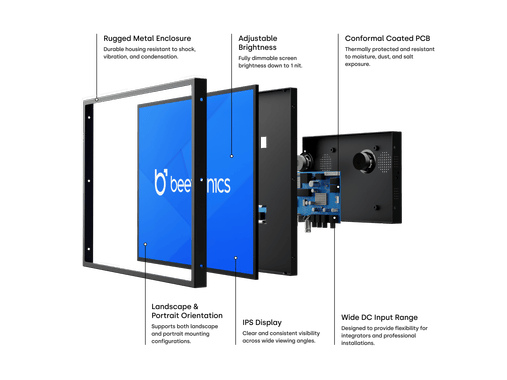

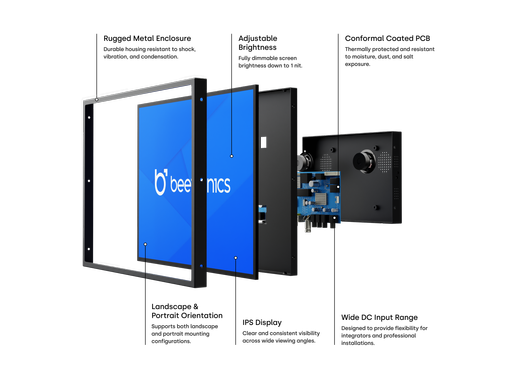

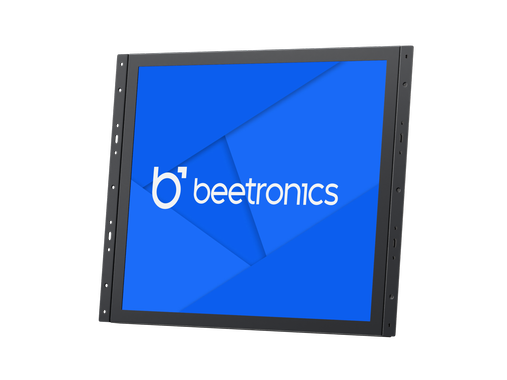

Thanks to numerous mounting options the 17 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

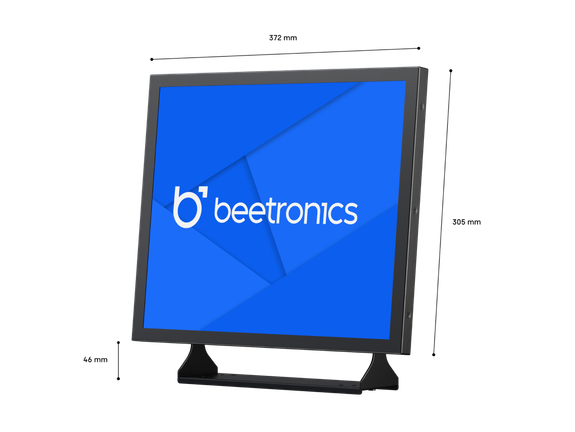

Desktop or wall mounting

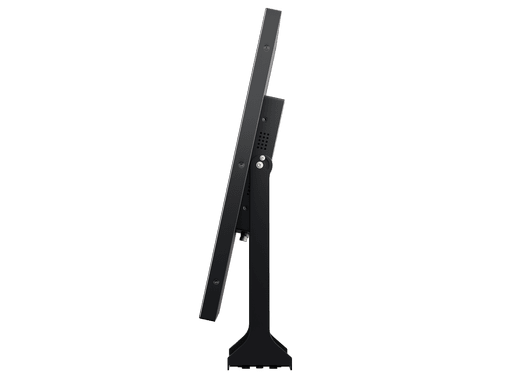

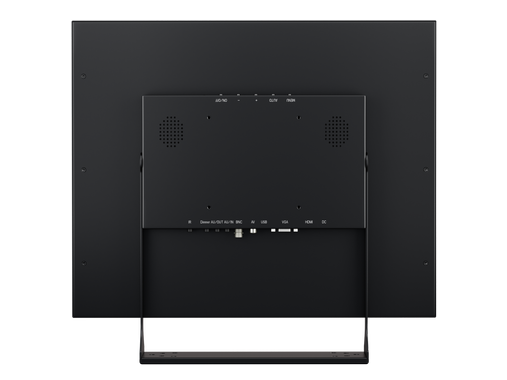

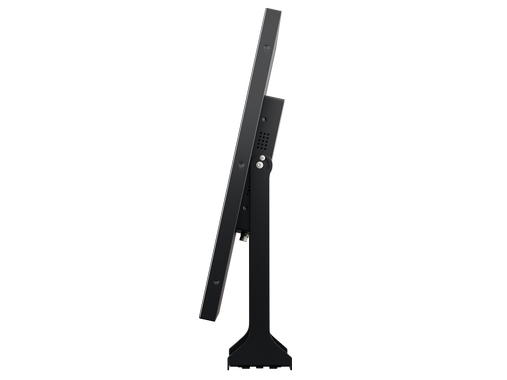

The Beetronics 17VG7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket.
| General | |
|---|---|
| Manufacturer |
Beetronics
|
| Item number |
17VG7M
|
| Product name |
17 inch monitor metal (5:4)
|
| Warranty |
2 years
|
| Datasheet | |
| Manual | |
| Panel | |
|---|---|
| Type |
Matte, LED-IPS
|
| Screen diagonal |
17 inches (432 mm)
|
| Aspect ratio |
5:4
|
| Native resolution |
1280 x 1024
|
| Supported resolutions |
1920 x 1080 (max), 640 x 480 (min)
|
| Pixels per inch |
96 PPI
|
| Viewing angle |
178° horizontal, 178° vertical
|
| Colour encoding system |
PAL/NTSC/SECAM
|
| Brightness |
400 cd/m2
|
| Contrast |
1000:1
|
| Connectivity | |
|---|---|
| HDMI |
1x
|
| VGA |
1x
|
| BNC (CVBS) |
1x
|
| RCA video |
1x
|
| AUX input |
1x
|
| AUX output |
1x
|
| USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
| Size & weight | |
|---|---|
| Colour |
Black
|
| Weight |
3800 gram (4572 gram with stand)
|

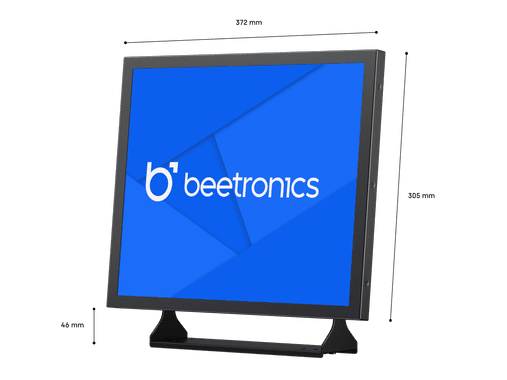

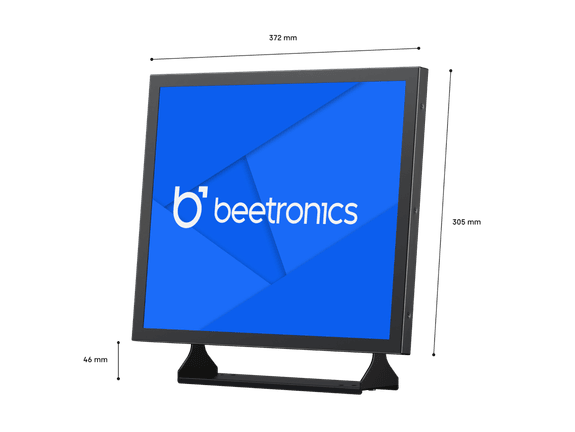

| Width |
372 mm
|
| Height |
305 mm (+0 to 37 mm with stand)
|
| Thickness |
39 mm
|
| Display dimensions |
336 x 269 mm
|
| Technical drawing | |
| 3D drawing | |
| Features and functions | |
|---|---|
| Audio |
Integrated speakers
|
| Key-lock |
The control buttons can be blocked
|
| Auto-on |
Automatically powers on when it receives current or a signal
|
| Dimmable |
Adjustable backlight brightness
|
| Mirroring |
Image can be mirrored, horizontally and vertically
|
| Power | |
|---|---|
| Input voltage |
DC 10-33V
|
| Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
| Consumption |
<15 Watt (0.5 Watt standby)
|
| Environmental | |
|---|---|
| Operating temperature |
-20c° to +60c°
|
| Storage temperature |
-20c° to +70c°
|
| Operating humidity |
20% - 90% non-condensing
|
| Mounting | |
|---|---|
| Wall mount |
VESA (100 mm)
|
| Flush mount |
Mounting strips included
|
| Stand |
Adjustable and detachable
|
| Certifications & Standards | |
|---|---|
| Certifications |
CE, FCC, RoHS, REACH
|
| Package content | |
|---|---|
| Includes |

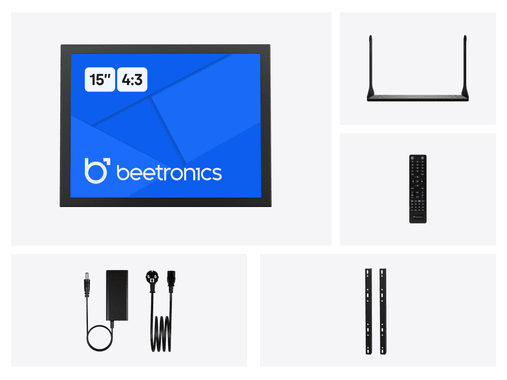

Monitor, Stand, Remote control, Mounting strips, Mains adaptor, Manual
|
| Manual | Download PDF |
| Technical drawing | Download PDF |
| 3D drawing | Download CAD/STP |
| Datasheet | Download PDF |
| Files | |
|---|---|
| Product name | Item number | In stock | Quantity | Price |
|---|---|---|---|---|

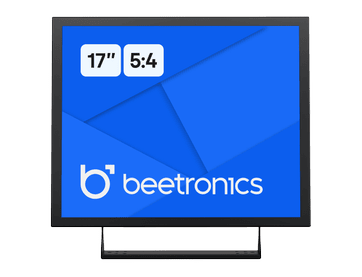

17 inch monitor metal (5:4)
|
