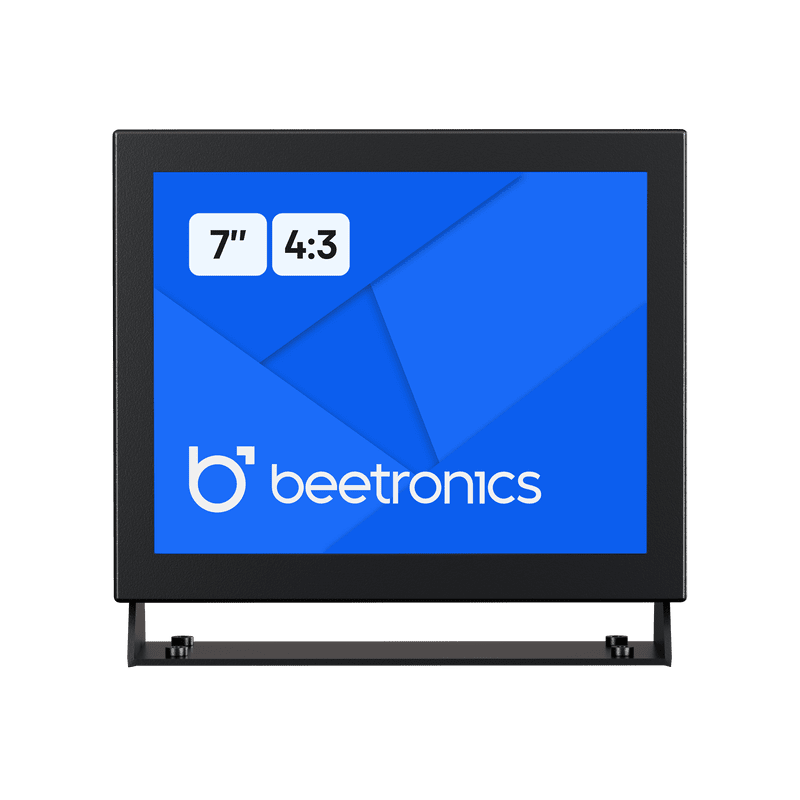

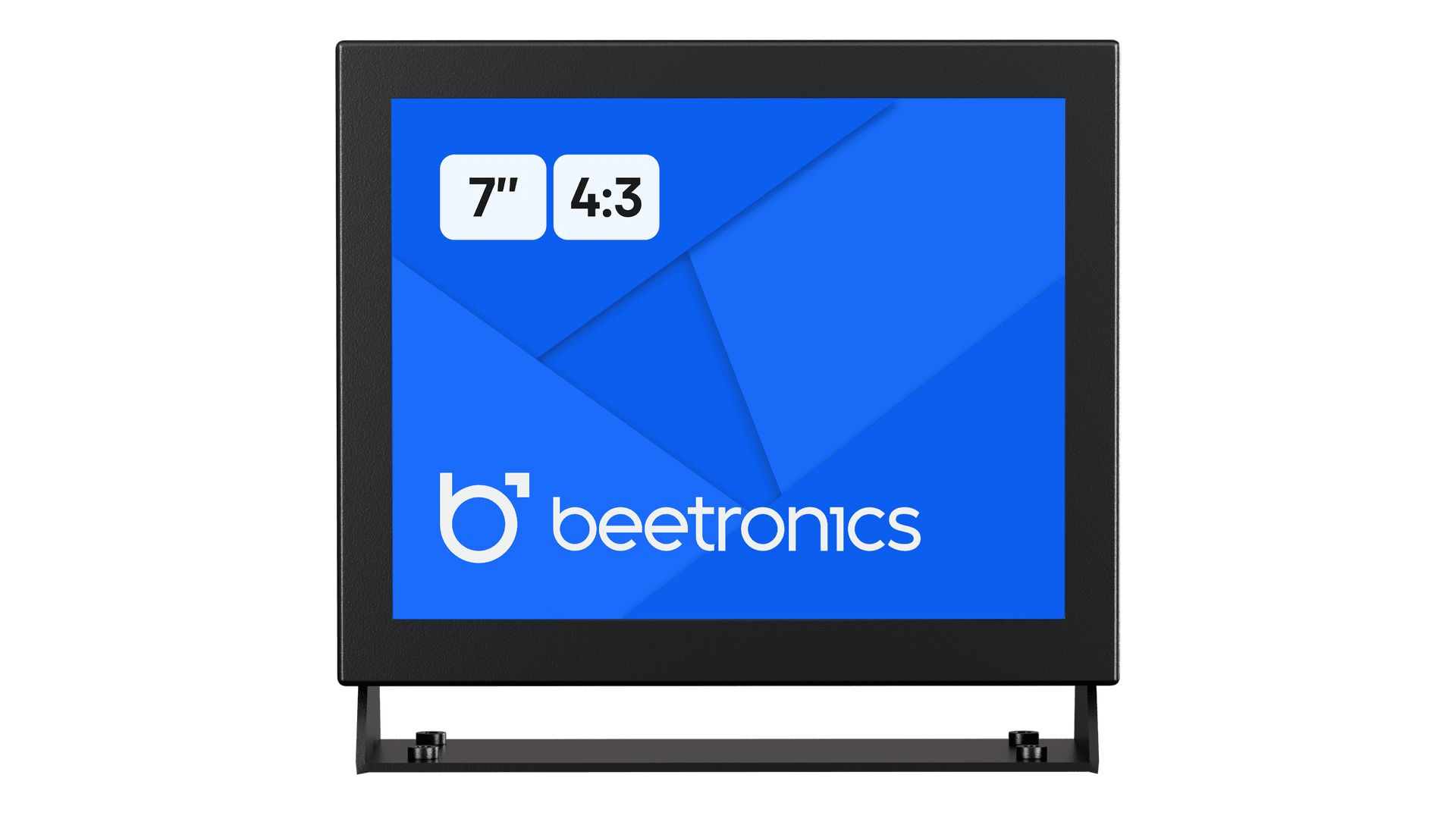

7 inch monitor metal (4:3)
Model: 7VG7M
100+ units in stock
7 inch monitor metal (4:3)
7 inch monitor metal (4:3)
7 inch monitor metal (4:3)
7 inch monitor metal (4:3)
7 inch monitor metal (4:3)
7 inch monitor metal (4:3)
7 inch monitor metal (4:3)
7 inch monitor metal (4:3)
7 inch monitor metal (4:3)
7 inch monitor metal (4:3)

7 inch monitor metal (4:3)

Model: 7VG7M
100+ units in stock
  1. 4:3 aspect ratio
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

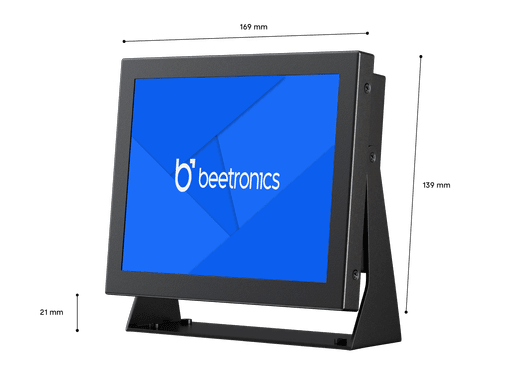

  4. External dimensions: 166 x 136 x 38 mm
  5. More specifications
€ 281,67 VAT incl.
Order by 4:00 pm for delivery on Friday
  • Description
  • Specifications
  • Connectivity
  • Downloads

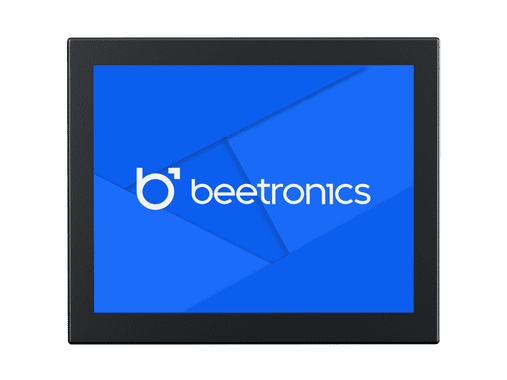

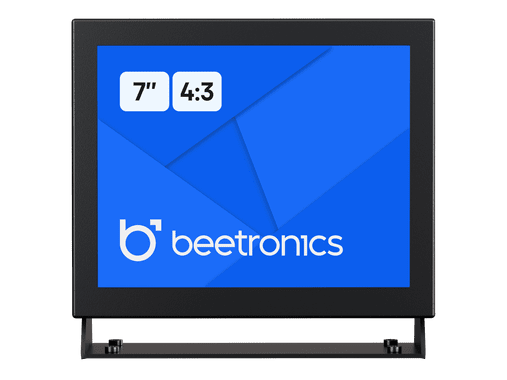

This 7 inch monitor has a matte IPS panel with a 4:3 aspect ratio. The monitor delivers a crisp image quality with excellent 178° viewing angles. The 7 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting.

4:3 aspect ratio

This 7 inch monitor is equipped with a 4:3 aspect ratio IPS panel. The monitor delivers a crisp image with excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor is designed to display 4:3 ratio resolutions and is able to scale any resolution up to 1080p.

7 inch monitor metal (4:3)

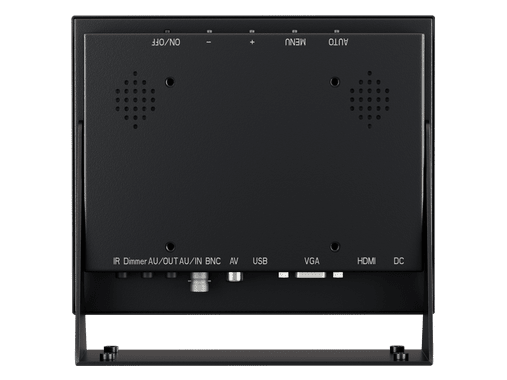

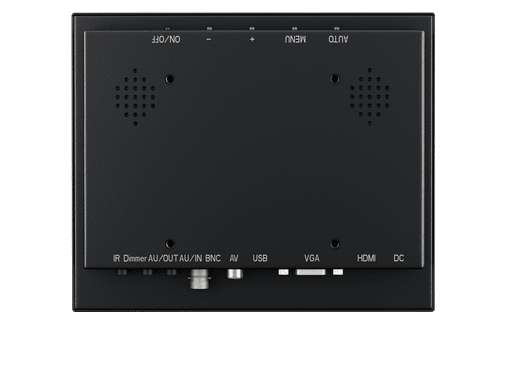

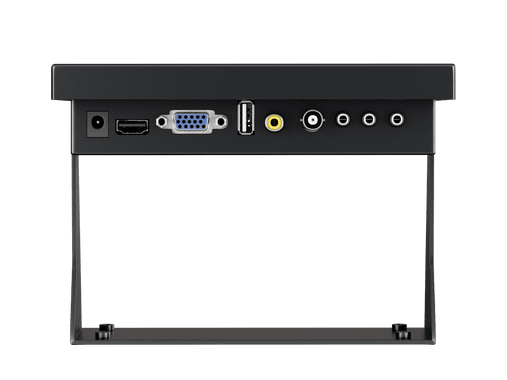

Versatile connectivity

The Beetronics 7VG7M  features HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on or off when it detects current or a video signal.

7 inch monitor metal (4:3)

Designed for professional use

The 7VG7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 9-33 Volts and features a fully dimmable backlight

7 inch monitor metal (4:3)

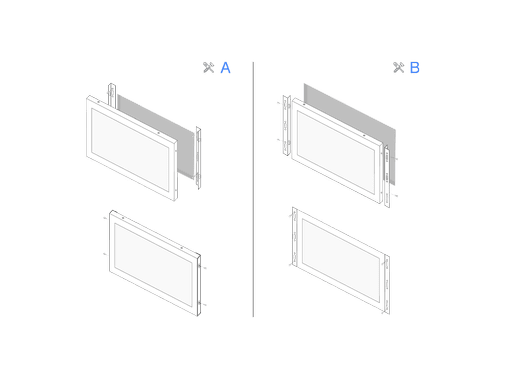

Easily integrated

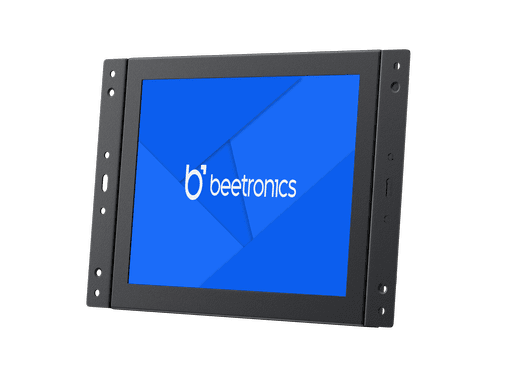

Thanks to numerous mounting options the 7 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

7 inch monitor metal (4:3)

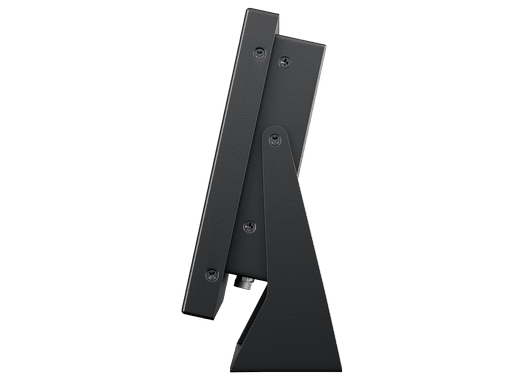

Desktop or wall mounting

The Beetronics 7VG7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket.

7 inch monitor metal (4:3)
General
Manufacturer
Beetronics
Item number
7VG7M
Product name
7 inch monitor metal (4:3)
Warranty
2 years
Datasheet
User manual
Quickstart
Panel
Diagonal size
7.0 inches (178 mm)
Panel type
IPS-LCD
Response time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
330 cd/m2
Contrast
800:1
Color encoding system
PAL/NTSC/SECAM
Connectivity
HDMI
1x
VGA
1x
RCA video
1x
AUX input
1x
AUX output
1x
1x integrated USB media player
Size & weight
Colour
Black
Dimensions (without stand)
166 x 136 x 38 mm
Image size
143 x 107 mm
Weight
800 grams (1000 gram with stand)
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness

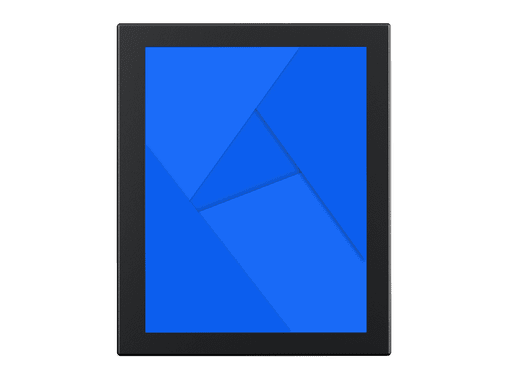

Orientation
Landscape, portrait, face-up
The monitor is equipped with a built-in USB media player.
Power
Input voltage
DC 9-33V
Consumption
Typical 6.2 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 90% non-condensing
Mounting
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, EN50155, EN60601, CCC

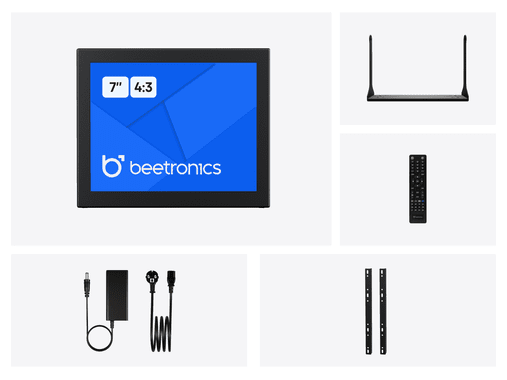

Package content
Includes
Monitor, Stand, Remote control, Mounting strips, AC power adapter, Manual
Compatible accessories
Infrared extension
Compatible with infrared extender (IRC7)
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Rack mounting
Compatible with 19 inch rack mount kit (RMK2)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
Compatible with VDK4 collapsible stand

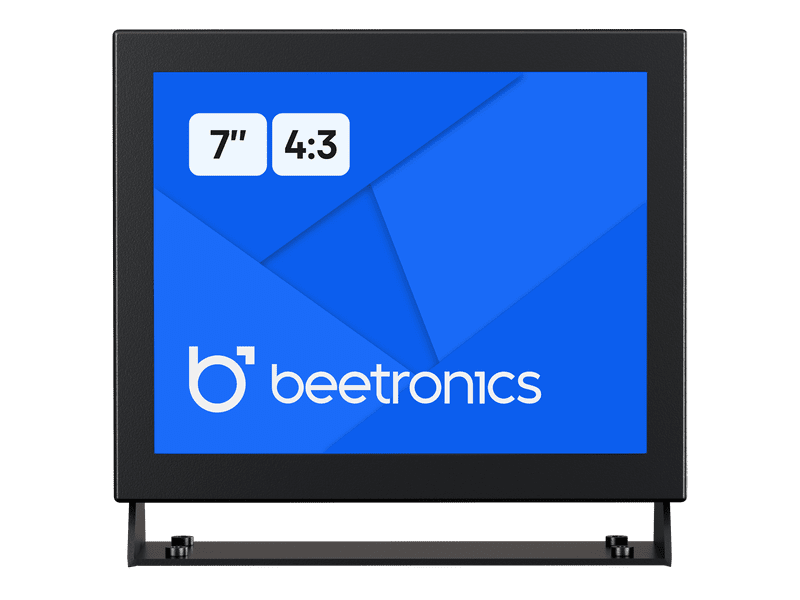

7 inch monitor metal (4:3)
Downloads
User manual
Quickstart
Technical drawing
3D Drawing
Datasheet
